013.30.1120.03K/P5

Bore
988 mm
Outer
1242 mm
Width
105 mm
Wight
298 kg
Four point contact ball slewing bearings (Internal gear type)
Compact structure, it can simultaneously withstand axial force, radial force, and overturning moment, achieving smooth rotation at a high cost-performance ratio. It is widely used in engineering machinery, cranes, and medical equipment.

Main technical Specifications

New Designations :
013.30.1120.03K/P5
Main demensions :
988 × 1242 × 105
Bore Dia × Outside Dia × Width Dia (mm)
M :
298 kg
Weight
ID :
988 mm
Inside diameter(I.D.)
OD :
1242 mm
Outside diameter(O.D.)
T(B) :
105 mm
Thickness(W.D.)
Category :
Four point contact ball slewing bearings (Internal gear type)

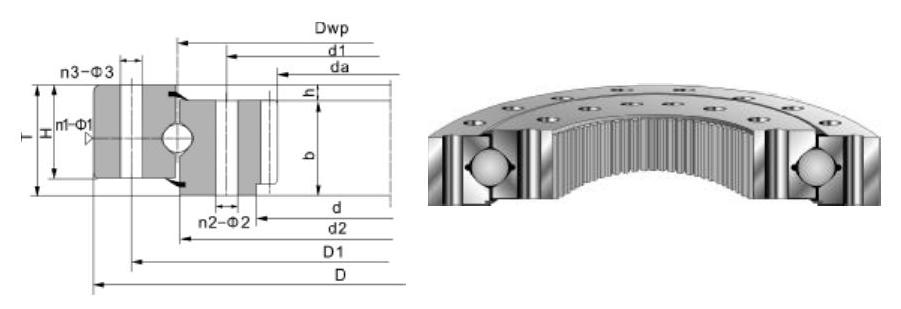

Detailed parameters and installation dimensions:

D1: 1198 mm, d1: 1042 mm, d2: 1119 mm, H: 90 mm, h: 10 mm, Dwp: 1120 mm, n1: 6 mm, n2: 36 mm, n3: 36 mm, ф1: M10×1 mm, ф2: 18 mm, ф3: 18 mm, da: 960.25 mm, b: 80 , m: 8 , Z: 121 , x: 0.5

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

013.30.1120.03K/P5 refers to a type of large Four point contact ball slewing bearings (Internal gear type), with dimensions 988 mm (Bore) x 1242 mm (OD) x 105 mm (Width), designed for Compact structure, lightweight, small footprint, high cost-performance ratio, primarily used in Excavators, truck cranes, radar scanning equipment, for applications rotating parts that require medium to light loads and need to withstand combined loads. It weight approximately 298 kilogram.

  • Min. Order: 1 Piece/(013.30.1120.03K/P5, 988 = ID, 1242 = OD, 105 = B, 298 kg) or according to different suppliers
  • Price: Different brands, different quality, different 013.30.1120.03K/P5 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

price demand YAR 216

Hello Please let me know if you can help me with an quotation for the next item YAR 216---10PC

✨What are the Benefits of choosing 013.30.1120.03K/P5 bearings?

  • Compact Structure: A single bearing can withstand axial force, radial force, and overturning moment, saving space.
  • High Load Capacity: Four-point contact design provides strong static load capacity.
  • High Precision: Smooth operation enables precise rotary positioning.
  • Low Frictional Torque: Flexible operation, suitable for medium and low speed conditions.
  • Economical: Simple structure, low cost, and easy maintenance.
  • The 013.30.1120.03K/P5 Four point contact ball slewing bearings (Internal gear type) adopts a Compact structure, lightweight, small footprint, high cost-performance ratio design, with dimensions an inner diameter of 988 mm, an outer diameter of 1242 mm, a width of 105 mm, ensure the equipment operates more stably for applications rotating parts that require medium to light loads and need to withstand combined loads.

🏭 What are the applications of the 013.30.1120.03K/P5 bearing?

  • Construction machinery (e.g., medium-sized excavators, cranes): Bears complex loads, ensuring flexible rotation of the upper frame and stable, reliable operation.
  • Wind power generation (e.g., yaw bearings): Precisely aligns with wind, adapts to harsh environments, and ensures long-term reliable operation.
  • Lifting and transportation (e.g., truck cranes, tower cranes): Bears the overturning moment of the boom, ensuring smooth and safe lifting.
  • Medical equipment (e.g., CT scanners): Low noise and high stability meet the rotational stability requirements of precision diagnosis.
  • Amusement park equipment: (e.g., Ferris wheels and carousels): Ensures long-term safety and reliability, providing a smooth and comfortable riding experience.
  • Solar energy: (e.g., Photovoltaic and solar thermal tracking brackets): Precisely tracks the sun's angle, increasing total power generation.
  • Military specialty equipment: (e.g., Radar antenna mounts and tank turrets): Meets high mobility and aiming accuracy requirements, adapting to harsh environments.
  • Port machinery (e.g., small ship unloaders, gantry cranes): Enables smooth operation under frequent rotation, improving loading and unloading efficiency.
  • Environmental protection/water treatment (e.g., sludge scrapers, agitators): Ensures long-term continuous operation in corrosive and humid environments, guaranteeing effective wastewater treatment.
  • Material handling (e.g., rotary indexing tables, packaging machinery turntables): Enables precise indexing and continuous rotation at workstations, improving automated production efficiency.
