160098X/160152X

Bore
98.425 mm
Outer
152.4 mm
Width
38.1 mm
Wight
2.3 kg
Single row taper roller bearings
Combined radial and unidirectional axial loads, require pairing for positioning and are widely used in automotive wheel hubs, transmissions, construction machinery, and machine tool spindles.

Main technical Specifications

New Designations :
160098X/160152X
Main demensions :
98.425 × 152.4 × 38.1
Bore Dia × Outside Dia × Width Dia (mm)
M :
2.3 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
98.425 mm
Inside diameter(I.D.)
OD :
152.4 mm
Outside diameter(O.D.)
T(B) :
38.1 mm
Thickness(W.D.)
Oil rpm :
4300 r/min
Limiting speed
Category :
Single row taper roller bearings

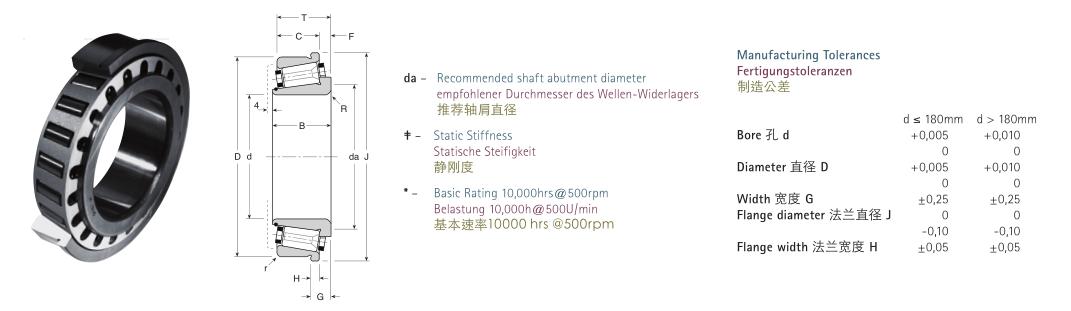

Detailed parameters and installation dimensions:

d: 98.425 mm
D: 152.4 mm
T: 38.1 mm
B: 42 mm
C: 30 mm
r: 2.5 mm
F: 8.1 mm
R: 2.5 mm
Da: 144 mm
da: 114 mm
Mass: 2.3 Kg
nG: 4300 r/min


Part Number: 160098X/160152X Gamet
Technical description (X): X=Imperial Size.
Bearing Type: Tapered Roller Bearings, Single Row
Bearing Size (metric): Inner dia. (d): 98,425 mm X Outer dia. (D): 152,400 mm X Width B (or T): 38,100 mm or Size: 98,425 mm * 152,400 mm * 38,100 mm
Size(inch): Inner dia. (d): 3.8750 Inch X Outer dia. (D): 6.0000 Inch X Width B (or T): 1.5000 Inch or Size: 3.8750 Inch * 6.0000 Inch * 1.5000 Inch
Original Equipment Manufacture(OEM NO.): 160098X/160152X
Precision Rating: Standard class precision

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

160098X/160152X refers to a type of Single row taper roller bearings, with dimensions 98.425 mm (Bore) x 152.4 mm (OD) x 38.1 mm (Width), designed for Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation, primarily used in Machine tool spindle, gearbox, automobile wheel hub, Its normal operating speed can reach: oil speed ratings: 4300 rpm, for applications Medium and low speed heavy load and combined load It weight approximately 2.3 kilogram.

  • Min. Order: 1 Piece/(160098X/160152X, 98.425 = ID, 152.4 = OD, 38.1 = B, 2.3 kg) or according to different suppliers
  • Price: Different brands, different quality, different 160098X/160152X prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Replace For Gamet 160098X/160152X Tapered Roller Bearing, Super Precision 98.425x152.4x42mm;
Bore Diameter (id):98.425mm
Outside Diameter (OD):152.400mm
T:38.10mm
Width (C):30.00mm
Width (B):42.00mm
F:8.10mm
da:114mm
Da:144mm
r:2.50mm
R:2.50mm
Radial Stat. Capacity Stiffness:115 daN/µ
Axial Stat. Capacity Stiffness:17 daN/µ
Radial Load Capacity 10,000hrs@500rpm:3700 daN
Axial Load Capacity 10,000hrs@500rpm:1785 daN
Maximum Limiting Speed:4300 rpm
Bearing Mass:2.300kg
Cone Part Number:160098X
Cup Part Number:160152X

Заявка на поставку подшипников SKF 3208 A-2RS1/MT33, 608-2Z, 6311-2RS1, 29334E

Добрый день! Прошу вас рассмотреть возможность поставки следующих позиций и выставить счет на оплату: Подшипник 3208 A-2RS1/MT33 8 шт Подшипник 608-2Z 1 шт Подшипник 6311-2RS1 10 шт Подшипник 29334E 1 шт Подшипник 3310 A 2 шт

✨What are the Benefits of choosing 160098X/160152X bearings?

  • Separable Installation: The inner ring assembly can be separated from the outer ring, making installation, disassembly, and maintenance very convenient.
  • Composite Load Bearing: Capable of simultaneously withstanding radial and unidirectional axial loads, exhibiting strong versatility.
  • High Rigidity: When installed in pairs, the system exhibits high rigidity, accurately guiding the shaft system.
  • Low Friction: Designed for pure rolling, resulting in low operating friction and minimal heat generation.
  • The 160098X/160152X Single row taper roller bearings adopts a Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation design, with dimensions an inner diameter of 98.425 mm, an outer diameter of 152.4 mm, a width of 38.1 mm, ensure the equipment operates more stably , and the maximum speed can reach ( Limit Speed Ratings (oil) rpm:4300)for applications Medium and low speed heavy load and combined load

🏭 What are the applications of the 160098X/160152X bearing?

  • Automotive Industry: Transmissions, differentials, wheel hubs. Bearing complex loads, ensuring smooth and precise operation at high speeds.
  • Industrial Transmission: Gearboxes, reducers, machine tool spindles. Providing high rigidity, reducing vibration, and ensuring transmission accuracy.
  • Railway/Roller Vehicles: Wheel bearings. High load-bearing capacity, adaptable to frequent starts and stops and impacts.
