21317K
Spherical Roller Bearings
New Designations :
21317K
Old Code :
21317K

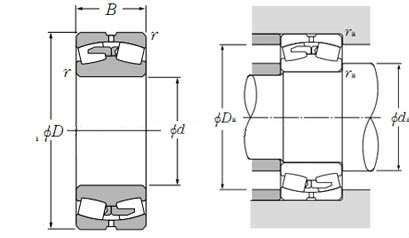

Main demensions :
85 × 180 ×
41
Bore Dia × Outside Dia × Width Dia (mm)
M :
5.28 kg
Weight
ID :
85 mm
Inside diameter(I.D.)
OD :
180 mm
Outside diameter(O.D.)
T(B) :
41 mm
Thickness(W.D.)
C :
289 kN
Radial dynamic load rating
C0 :
355 kN
Radial static load rating
Grease rpm :
2400 r/min
Reference speed
Oil rpm :
3100 r/min
Limiting speed
Interchangeable :
NTN
Category :
Spherical Roller Bearings
Spherical Roller Bearings 21317K, 5.28 kg Bearing mass, (85*180*41 mm), 85 mm d (Bore: diameter of the inner ring), 180 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 41 mm B (Width: nominal width of the bearing), 289000 N radial dynamic load capacity (Dyn. Cr), 355000 N radial static load capacity (Stat. Cor), 2400 r/min Maximum RPM (Speed in grease), 3100 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(21317K, 85 = ID, 180 = OD, 41 = B, 5.28 kg) or according to different suppliers
- Price: Different brands, different quality, different 21317K prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
