2202-2RS Self-aligning Ball Bearings dimensions
New Designations :
2202-2RS
Main demensions :
15 × 35 ×
14
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.06 kg
Weight
HS Code :
8482101000
Bearing customs code
ID :
15 mm
Inside diameter(I.D.)
OD :
35 mm
Outside diameter(O.D.)
T(B) :
14 mm
Thickness(W.D.)
C :
7.45 kN
Radial dynamic load rating
C0 :
1.75 kN
Radial static load rating
Grease rpm :
12000 r/min
Reference speed
Category :
Self-aligning Ball Bearings

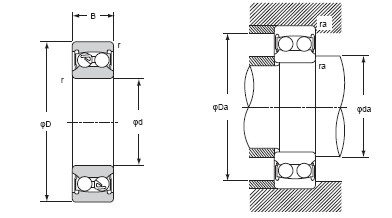

Detailed parameters and installation dimensions:
r(min.): 0.6 mm, da(min.): 18 mm, Da(max.): 30 mm, ra(max.): 0.6 mm, e: 0.33 , Y1: 1.9 , Y2: 2.95 , Y0: 2
Self-aligning Ball Bearings 2202-2RS, 0.06 kg Bearing mass, (15*35*14 mm), 15 mm d (Bore: diameter of the inner ring), 35 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 14 mm B (Width: nominal width of the bearing), 7450 N radial dynamic load capacity (Dyn. Cr), 1750 N radial static load capacity (Stat. Cor), 12000 r/min Maximum RPM (Speed in grease),
- Min. Order: 1 Piece/(2202-2RS, 15 = ID, 35 = OD, 14 = B, 0.06 kg) or according to different suppliers
- Price: Different brands, different quality, different 2202-2RS prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
