22216K

Bore
80 mm
Outer
140 mm
Width
33 mm
Wight
1.94 kg
Spherical Roller Bearings
Self-aligning, capable of withstanding heavy loads and impacts, suitable for applications such as mining and metallurgy where shaft deflection or installation errors are present.

Main technical Specifications

New Designations :
22216K
Old Code :
113516
Main demensions :
80 × 140 × 33
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.94 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
80 mm
Inside diameter(I.D.)
OD :
140 mm
Outside diameter(O.D.)
T(B) :
33 mm
Thickness(W.D.)
Cr :
213 kN
Radial dynamic load rating
C0r :
277 kN
Radial static load rating
Grease rpm :
2200 r/min
Reference speed
Oil rpm :
3400 r/min
Limiting speed
Category :
Spherical Roller Bearings

Detailed parameters and installation dimensions:

rs min: 2 mm

Part Number: 22216K CBF
Technical description (K): K=Tapered Bore, Taper 1:12.
Bearing Type: Double row spherical roller bearings
Bearing Size (metric): Bore Dia. (d): 80 mm X Outer dia. (D): 140 mm X Width (B): 33 mm or Size: 80 mm * 140 mm * 33 mm
Original Equipment Manufacture(OEM NO.): 22216K
Bore: K (Tapered Bore (Taper 1:12), Standard for Most Types)
Lubrication designation: W (No Lubrication Groove or Holes)
Seals Type: No Seal
Cage Design: S (Steel or Standard Cage)
Radial internal clearance: Cn (Normal Internal clearance)
Precision Rating: Standard class precision
Thermal Stability: No Thermal Stability - Temperatures up to 120°C
Vibrating screen special performance: No

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

22216K refers to a type of Spherical Roller Bearings, with dimensions 80 mm (Bore) x 140 mm (OD) x 33 mm (Width), designed for Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads, primarily used in Gearboxes, drive shafts, conveying equipment, general machinery, Its normal operating speed can reach: the grease speed ratings: 2200 rpm, oil speed ratings: 3400 rpm, for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions. it's built to handle significant loads (dynamic radial: 213000 N, static radial: 277000 N, ), It weight approximately 1.94 kilogram.

  • Min. Order: 1 Piece/(22216K, 80 = ID, 140 = OD, 33 = B, 1.94 kg) or according to different suppliers
  • Price: Different brands, different quality, different 22216K prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

demande de cotation Ref : Série SER 207-23

Bonjour, Pourriez-vous nous faire parvenir une offre de prix et de délai pour 4 ROULEMENTS ROULEMENT A BILLES Ref : Série SER 207-23 Model 207-23 Taille x 42mm x22mm x 35mm

✨What are the Benefits of choosing 22216K bearings?

  • Self-aligning: Allows for significant angular errors or shaft deflection between the shaft and bearing housing, effectively compensating for installation errors and shaft deformation.
  • High load capacity: Featuring a double-row roller structure, it boasts extremely high radial load capacity while also withstanding certain bidirectional axial loads.
  • Adaptable to vibration applications: Performs excellently under impact and vibration loads, exhibiting good durability.
  • Easy installation: Models with tapered bores are typically available, allowing for convenient installation at any position on different optical shafts using adapter sleeves or withdrawal sleeves.
  • The 22216K Spherical Roller Bearings adopts a Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads design, with dimensions an inner diameter of 80 mm, an outer diameter of 140 mm, a width of 33 mm, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:2200 Limit Speed Ratings (oil) rpm:3400)for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions.

🏭 What are the applications of the 22216K bearing?

  • Mining/Metallurgy/Cement: Used in crushers and vibrating screens. Impact resistant, withstands extreme heavy loads, and adaptable to harsh environments.
  • Paper/Steel: Used in rolling mills and roller conveyors. Automatic self-aligning compensation effectively addresses shaft deflection or misalignment.
  • Industrial Transmission: Used in speed reducers and fans. Smooth operation, long service life, and withstands complex composite loads.

Leave A Comment

Other models the same size : 80x140x33

NU 2216 ECML/P63

Railway bearings   80 * 140 * 33 , Cr: 208.531, C0r: 243.372, Oil rpm: 8332, M: 2.2

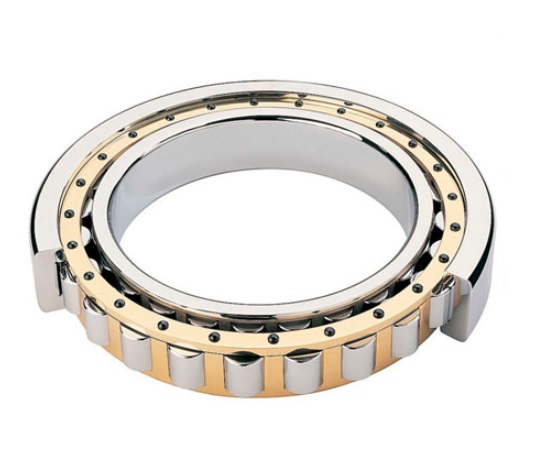

NU2216EMAC3
