22218EXK
Spherical Roller Bearings
New Designations :
22218EXK

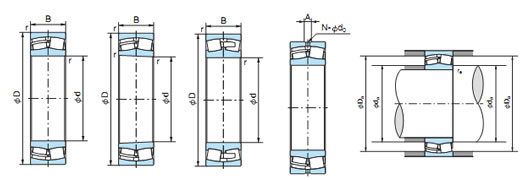

Main demensions :
90 × 160 ×
40
Bore Dia × Outside Dia × Width Dia (mm)
M :
4.01 kg
Weight
ID :
90 mm
Inside diameter(I.D.)
OD :
160 mm
Outside diameter(O.D.)
T(B) :
40 mm
Thickness(W.D.)
C :
294 kN
Radial dynamic load rating
C0 :
375 kN
Radial static load rating
Grease rpm :
1900 r/min
Reference speed
Oil rpm :
2600 r/min
Limiting speed
Interchangeable :
NACHI
Category :
Spherical Roller Bearings
Spherical Roller Bearings 22218EXK, 4.01 kg Bearing mass, (90*160*40 mm), 90 mm d (Bore: diameter of the inner ring), 160 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 40 mm B (Width: nominal width of the bearing), 294000 N radial dynamic load capacity (Dyn. Cr), 375000 N radial static load capacity (Stat. Cor), 1900 r/min Maximum RPM (Speed in grease), 2600 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(22218EXK, 90 = ID, 160 = OD, 40 = B, 4.01 kg) or according to different suppliers
- Price: Different brands, different quality, different 22218EXK prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
