22309.EAW33
Main technical Specifications

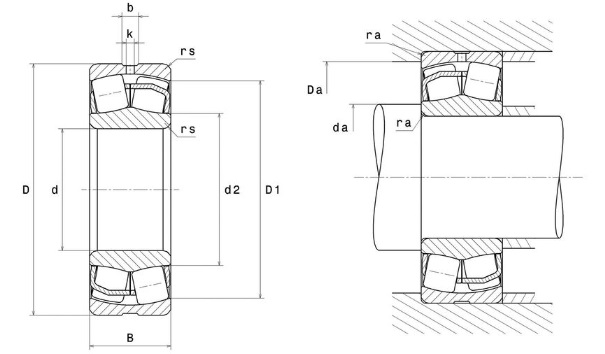

Detailed parameters and installation dimensions:
| Part Number | 22309.EAW33 |
| Design type | E = Increased capacity design, symmetrical rollers |
| Dynamic Radial Capacity - Cr | 205972 N | 46302 lbf |
| Static Radial Capacity - C0r | 186470 N | 41918 lbf |
| Temperature - T(min) | -40 °C |
| Temperature - T(max) | 200 °C |
| Internal clearance | CN |
| Cage | A = Two steel plate cages with window centred on the inner ring |
| Dimension fillet radius - rs | 1.5 mm | 0.059 inch |
| Dimension - ra(max.) | 1.5 mm | 0.059 inch |
| Series | 223 (223..EAW33) |
| Principal Dimensions Inside - d φ | 45 mm | 1.772 inch |
| Principal Dimensions Outside - D Φ | 100 mm | 3.937 inch |
| Principal Dimensions Width - B | 36 mm | 1.417 inch |
| Load | radial |
| Units | Metric |
| Tolerance Class | JIS-0 RBEC-1 |
| Groove width - b | 6.43 mm | 0.253 inch |
| Hole diameter - k | 3 mm | 0.118 inch |
| Ring Modification | Plain |
| Bearing Mass - m | 1.352 kg | 2.981 lb |
| Cage Type | Pressed |
| bearing_type | spherical roller bearings standard bore |
| Speed ratings (grease) - nB | 5282 r/min |
| Speed ratings (oil) - nG | 6680 r/min |
| Lubrication | W33 = Groove and lubrication holes on outer ring |
| Bore | Cylindrical bore |
| Fatigue load limit - Cu | 22743 N | 5112 lbf |
| Dimension - d2 | 58 mm | 2.283 inch |
| Dimension - D1 | 85.8 mm | 3.378 inch |
| Ring Material | Hardened Steel |
| Roller Material | GCr15SiMn |
| Factors - e | 0.36 |
| Factors - Y0 | 1.86 |
| Manufacturer Part Code | 22309EAW33 |
| Abutment dimensions - da(min.) | 54 mm | 2.126 inch |
| Factors - Y1 | 1.9 |
| Factors - Y2 | 2.83 |
| Precision level | Standard |
| Seal | Open |
| Abutment dimensions - Da(max.) | 91 mm | 3.583 inch |
| Row No. | double |
| Temperature - T(min) | -40 °F |
| Temperature - T(max) | 400 °F |
| Number of lubrication holes | 3 |
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
22309.EAW33 refers to a type of 223 spherical roller bearings standard bore, with dimensions 45 mm (Bore) x 100 mm (OD) x 36 mm (Width), designed for Self-aligning, extremely strong load-bearing capacity, and impact resistant, primarily used in Heavy-duty speed reducers, low-speed rolling mills, and medium-sized mining equipment, Its normal operating speed can reach: the grease speed ratings: 5282 rpm, oil speed ratings: 6680 rpm, featuring A = Two steel plate cages with window centred on the inner ring retainer to ensure extended service life, for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions. it's built to handle significant loads (dynamic radial: 205972 N, static radial: 186470 N, ), It weight approximately 1.352 kilogram.
- Min. Order: 1 Piece/(22309.EAW33, 45 = ID, 100 = OD, 36 = B, 1.352 kg) or according to different suppliers
- Price: Different brands, different quality, different 22309.EAW33 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
