22328-E1-XL-K-T41A + H2328

Bore
140 mm
Outer
300 mm
Width
102 mm
Wight
40 kg
Spherical roller bearings With adapter sleeve E1 design
Impact-resistant, vibration-resistant, and able to adapt to misalignment, with a special cage design ensuring long service life, it is specially designed for vibrating screens and various vibrating machinery.

Main technical Specifications

New Designations :
22328-E1-XL-K-T41A + H2328
Old Code :
22328-E1-K-T41A + H2328
Main demensions :
140 × 300 × 102
Bore Dia × Outside Dia × Width Dia (mm)
M :
40 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
140 mm
Inside diameter(I.D.)
OD :
300 mm
Outside diameter(O.D.)
T(B) :
102 mm
Thickness(W.D.)
Cr :
1459.362 kN
Radial dynamic load rating
C0r :
1629.174 kN
Radial static load rating
Grease rpm :
1645 r/min
Reference speed
Oil rpm :
2178 r/min
Limiting speed
Category :
Spherical Roller Bearings

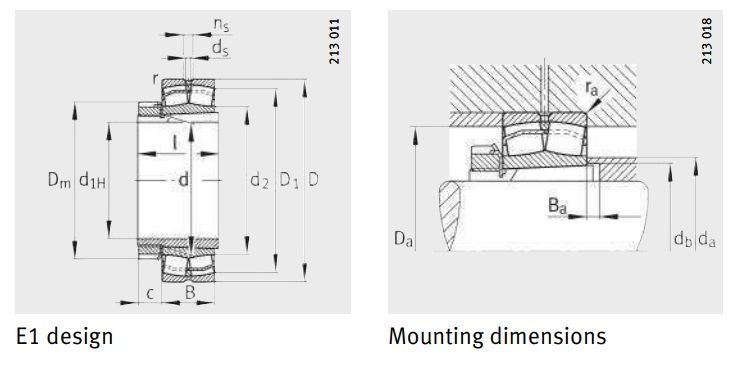

Detailed parameters and installation dimensions:

Part Number 22328-E1-XL-K-T41A + H2328
Seal Open
Cage Stamping steel cage
Dimension - d1H 125
Dimension - r(min.) 4 mm | 0.1575 inch
Dimension - D1 255.7 mm | 10.0669 inch
Dimension - d2 173.5 mm | 6.8307 inch
Series 223..-E1-XL-K-T41A + H2328
Bore Type K = Tapered bore (taper 1:12)
Adapter sleeve H2328
Adapter sleeve Mass 5.6 kg | 12.346 lb
Radial Dynamic Capacity - Cr 1459362 N | 328064 lbf
Radial static Capacity - C0r 1629174 N | 366238 lbf
X-Life XL
Tolerance class PN (ABEC-1)
Roller Material GCr15SiMn
Dimension - ds 9.5 mm | 0.3740 inch
Dimension - ns 17.7 mm | 0.6968 inch
Dimension - dm 180 mm | 7.0866 inch
Dimension - l 131 mm | 5.1575 inch
Dimension - c 24 mm | 0.9449 inch
Ring Material GCr15SiMn
Design Type E1 = without central rip
Load radial
Row Two
Reference speed - nB 1645 min–1
Limiting speed - nG 2178 min–1
Bearing Type Spherical roller bearings With adapter sleeve E1 design
Bearing Mass - m 34.4 kg | 75.838 lb
Dimension Inside - d φ 140 mm | 5.5118 inch
Dimension Outside - D Φ 300 mm | 11.8110 inch
Dimension Width - B 102 mm | 4.0157 inch
Interchangeable FAG 22328-E1-XL-K-T41A + H2328
Mounting dimensions - da(max.) 169 mm | 6.6535 inch
Mounting dimensions - Da(max.) 283 mm | 11.1417 inch
Mounting dimensions - db(min.) 152 mm | 5.9842 inch
Total Mass 40 kg | 88.184 lb
Suffixes T41A: for vibrating screens
Manufacturer Part Code 22328-E1-K-T41A + H2328
Temperature - T(min) -30°C
Temperature - T(max) up +200°C
Calculation coefficient - e 0.34
Calculation coefficient - Y1 2
RIC C4
Measurement Metric
Mounting dimensions - Ba(min.) 8 mm | 0.3150 inch
Mounting dimensions - ra(max.) 3 mm | 0.1181 inch
Radial Fatigue Capacity - Cur 134703 N | 30281 lbf
Original Code 22328-E1-K-T41A + H2328
Calculation coefficient - Y2 2.98
Calculation coefficient - Y0 1.96

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

22328-E1-XL-K-T41A + H2328 refers to a type of 223..-E1-XL-K-T41A + H2328 Spherical roller bearings With adapter sleeve E1 design , with dimensions 140 mm (Bore) x 300 mm (OD) x 102 mm (Width), designed for Vibration resistant, impact resistant, high temperature resistant, self-aligning, primarily used in Heavy-duty vibrating screens for mining, metallurgy, construction, and coal industries., Its normal operating speed can reach: the grease speed ratings: 1645 rpm, oil speed ratings: 2178 rpm, featuring Two (row) construction, Stamping steel cage retainer to ensure extended service life, advanced Open, PN (ABEC-1) (precision) for applications High-efficiency screening and grading of bulk materials such as ore, sand, gravel, and coal.. it's built to handle significant loads (dynamic radial: 1459362 N, static radial: 1629174 N, ), It weight approximately 40 kilogram.

  • Min. Order: 1 Piece/(22328-E1-XL-K-T41A + H2328, 140 = ID, 300 = OD, 102 = B, 40 kg) or according to different suppliers
  • Price: Different brands, different quality, different 22328-E1-XL-K-T41A + H2328 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Bearing ID Number 3VWRW31C48M518375

I need to Identify this part, I have the other 3 I need Identified, please help me with that so I can Place the order VOLKSWAGEN MODELO: BEETLE AÑO: 2008 CHASIS: 3VWRW31C48M518375 N° DE MOTOR: BPS073238

✨What are the Benefits of choosing 22328-E1-XL-K-T41A + H2328 bearings?

  • Self-aligning: Allows for angular deviations in bearings caused by installation errors or shaft deflection, reducing wear.
  • High load capacity: Can withstand strong impact loads and vibration loads.
  • Low friction operation: Optimized roller and cage design reduces temperature rise and adapts to high speeds.
  • Long life and high reliability: Special cage design and heat treatment process make it more durable under harsh operating conditions.
  • The 22328-E1-XL-K-T41A + H2328 Spherical Roller Bearings adopts a Vibration resistant, impact resistant, high temperature resistant, self-aligning design, Reference FAG technology, with dimensions an inner diameter of 140 mm, an outer diameter of 300 mm, a width of 102 mm, featuring Two (row) construction from 223..-E1-XL-K-T41A + H2328 (series), optimal operating temperature is generally -30 to up +200 degrees Celsius. With grade precision of PN (ABEC-1) and a clearance of C4, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:1645 Limit Speed Ratings (oil) rpm:2178)for applications High-efficiency screening and grading of bulk materials such as ore, sand, gravel, and coal.

🏭 What are the applications of the 22328-E1-XL-K-T41A + H2328 bearing?

  • Mining and Quarrying: Used in heavy-duty screening machines for grading ores and gravel.
  • Metallurgical Industry: Used for vibrating screening of sintered ore and coke.
  • Road Construction and Building: Used in asphalt mixing plants and for screening concrete aggregates.
  • Coal Industry: Used for coal grading and dewatering.
  • Recycling and Waste Treatment: Used in waste sorting and crushing lines.
