22336-BE-XL-H151B

Bore
180 mm
Outer
380 mm
Width
126 mm
Wight
66.29 kg
Double row spherical roller bearings, main dimensions to DIN 635-2
Self-aligning, capable of withstanding heavy loads and impacts, suitable for applications such as mining and metallurgy where shaft deflection or installation errors are present.

Main technical Specifications

New Designations :
22336-BE-XL-H151B
Old Code :
22336-BE-H151B
Main demensions :
180 × 380 × 126
Bore Dia × Outside Dia × Width Dia (mm)
M :
66.29 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
180 mm
Inside diameter(I.D.)
OD :
380 mm
Outside diameter(O.D.)
T(B) :
126 mm
Thickness(W.D.)
Cr :
2059.93 kN
Radial dynamic load rating
C0r :
2459.916 kN
Radial static load rating
Grease rpm :
1234 r/min
Reference speed
Oil rpm :
1999 r/min
Limiting speed
Category :
Spherical Roller Bearings

Detailed parameters and installation dimensions:

Part Number 22336-BE-XL-H151B
Bearing Type Double row spherical roller bearings, main dimensions to DIN 635-2
Series 223..-E1
Design Type BE = with lose center lip ring
Equivalent 22336-E1-H151B
Bearing Mass - m 66.29 kg | 146.143 lb
Manufacturer Part Code 22336-BE-H151B
Roller Material GCr15SiMn
Ring Material GCr15SiMn
Bore Type Z = Cylindrical bore
Cage JPB = Stamping steel cage
Measurement Metric
Seal OPEN
Relubrication Standard
X-Life XL
Number of Rows of Rollers 2
Radial internal clearance CN
Original Code 22336-BE-H151B

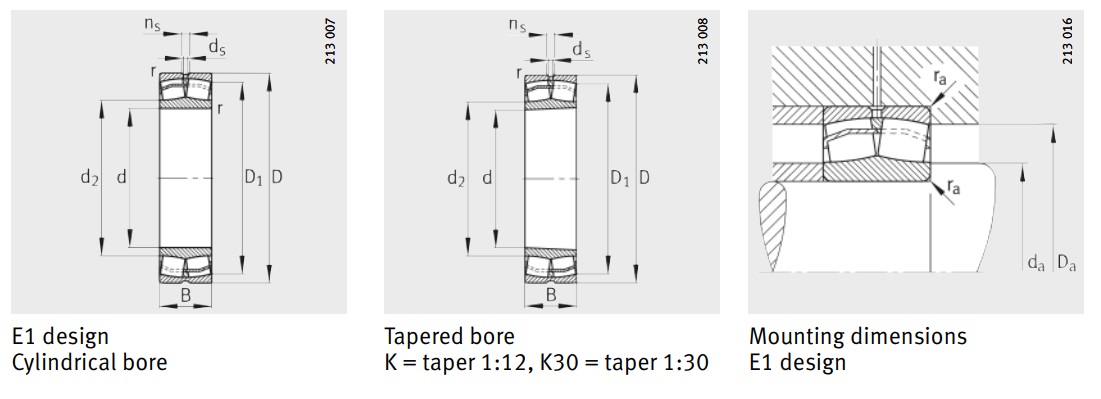

Dimensions
Inside diameter - d φ 180 mm | 0.157 inch
Outside diameter - D Φ 380 mm | 0.157 inch
Width - B 126 mm | 0.157 inch
Chamfer r(min.) 4 mm | 0.157 inch
D1 320.8 mm | 12.630 inch
d2 224.9 mm | 8.854 inch
ds 12.5 mm | 0.492 inch
ns 23.5 mm | 0.925 inch
Performance
Radial Fatigue Capacity - Cur 194926 N | 43819 lbf
Radial Dynamic Capacity - Cr 2059930 N | 463072 lbf
Radial static Capacity - C0r 2459916 N | 552989 lbf
Reference speed (grease) - nB 1234 min–1
Limiting speed (oil) - nG 1999 min–1
Operating temperature - T -30 - +200°C
Mounting dimensions
da(min.) 197 mm | 7.756 inch
Da(max.) 363 mm | 14.291 inch
ra(max.) 3 mm
Calculation coefficient
e 0.34
Y1 1.96
Y2 2.92
Y0 1.92
More H151B = 2 Locking features, bearing outer ring

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

22336-BE-XL-H151B refers to a type of 223..-E1 large Double row spherical roller bearings, main dimensions to DIN 635-2, with dimensions 180 mm (Bore) x 380 mm (OD) x 126 mm (Width), designed for Self-aligning, extremely strong load-bearing capacity, and impact resistant, primarily used in Heavy-duty speed reducers, low-speed rolling mills, and medium-sized mining equipment, Its normal operating speed can reach: the grease speed ratings: 1234 rpm, oil speed ratings: 1999 rpm, featuring 2 (row) construction, JPB = Stamping steel cage retainer to ensure extended service life, advanced OPEN, for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions.. it's built to handle significant loads (dynamic radial: 2059930 N, static radial: 2459916 N, ), It weight approximately 66.29 kilogram.

  • Min. Order: 1 Piece/(22336-BE-XL-H151B, 180 = ID, 380 = OD, 126 = B, 66.29 kg) or according to different suppliers
  • Price: Different brands, different quality, different 22336-BE-XL-H151B prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

We have an inquiry for AD5144 Single Row Bearing

Dear Sir/Ma'am, Greetings for the day !!! Since 3 decades, We are a trading company at Muscat, Sultanate of Oman. We have an inquiry for the AD5144 Single Row Bearing, and would like to have quote from you.

✨What are the Benefits of choosing 22336-BE-XL-H151B bearings?

  • Extreme Heavy-Duty Capacity: Highest rated load in its class, approximately 50% higher than the 222 series, designed for extreme heavy loads and harsh conditions.
  • Superior Durability: Withstands extremely high bidirectional axial and radial impacts; its internal design is also exceptionally vibration-resistant, ensuring stable operation.
  • Self-Alignment Compensation: Effectively compensates for shaft deflection or installation misalignment (typically allowing 1-2°) without affecting bearing life.
  • Robust Cage: Standard one-piece precision brass cage provides excellent guidance and exceptional reliability and durability in harsh environments.
  • The 22336-BE-XL-H151B Spherical Roller Bearings adopts a Self-aligning, extremely strong load-bearing capacity, and impact resistant design, Reference FAG technology, with dimensions an inner diameter of 180 mm, an outer diameter of 380 mm, a width of 126 mm, featuring 2 (row) construction from 223..-E1 (series), optimal operating temperature is generally -30 to +200 degrees Celsius. a clearance of CN, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:1234 Limit Speed Ratings (oil) rpm:1999)for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions.

🏭 What are the applications of the 22336-BE-XL-H151B bearing?

  • Mining/Metallurgy/Cement: Used in crushers and vibrating screens. Impact resistant, withstands extreme heavy loads, and adaptable to harsh environments.
  • Paper/Steel: Used in rolling mills and roller conveyors. Automatic self-aligning compensation effectively addresses shaft deflection or misalignment.
  • Industrial Transmission: Used in speed reducers and fans. Smooth operation, long service life, and withstands complex composite loads.
