2305
Main technical Specifications

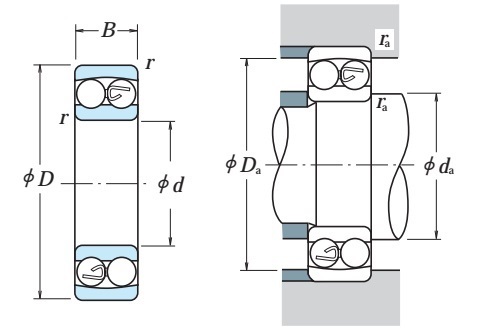

Detailed parameters and installation dimensions:
| Part Number | 2305 |
| Accuracy class | P0 = (ISO Class NORMAL / ABEC-1) |
| Permissible misalignment | 4° to 7° |
| Series | 2300 series (23..) |
| Seal | Open |
| Cage | Pressed steel cage |
| Temperature - T(min) | -30 °C |
| Temperature - T(max) | 120 °C |
| Speed ratings (grease) - nB | 9422 min–1 |
| Speed ratings (oil) - nG | 11896 min–1 |
| RIC | C0 |
| Units | Metric |
| Rows NO. | Two |
| Dimension Chamfer - r min | 1.1 mm | 0.0433 inch |
| Radial Dynamic Capacity - Cr | 27020 N | 6074 lbf |
| Radial Static Capacity - C0r | 6491 N | 1459 lbf |
| Manufacturer Part Code | 2305 |
| Bearing type | self-aligning ball bearings cylindrical bore |
| Bore type | Cylindrical |
| Abutment Dimensions Shaft - da min | 31.5 mm | 1.2402 inch |
| Abutment Dimensions Housing - Da max | 55.5 mm | 2.1850 inch |
| Fillet Radius - ra max | 1 mm | 0.0394 inch |
| Bearing Mass - m | 0.319 kg | 0.7033 lb |
| Load | radial |
| Ring Material | GCr15SiMn |
| Ball Material | GCr15SiMn |
| Dimension Inside - d φ | 25 mm | 0.9843 inch |
| Dimension Outside - D Φ | 62 mm | 2.4409 inch |
| Dimension Width - B | 24 mm | 0.9449 inch |
| Interchangeable | NSK 2305 |
| Constant - e | 0.46 |
| Axial Load Factors - Y2 | 2.1 |
| Axial Load Factors - Y3 | 1.4 |
| Axial Load Factors - Y0 | 1.4 |
The equivalents & Variants model of 2305 Self-aligning Ball Bearings:
NTN,NSK 2305 , KOYO 2305 , NACHI 2305 , FAG 2305TV , SKF 2305 , STEYR 2305 , SNR 23O5 , RHP 23O5 , NTN 2305 , NSK 2305 ,
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
2305 refers to a type of 2300 series (23..) self-aligning ball bearings cylindrical bore, with dimensions 25 mm (Bore) x 62 mm (OD) x 24 mm (Width), designed for Medium to light load, high-speed operation and allows for misalignment installation, primarily used in Electric motors, fans, and light industrial machinery, Its normal operating speed can reach: the grease speed ratings: 9422 rpm, oil speed ratings: 11896 rpm, featuring Two (row) construction, Pressed steel cage retainer to ensure extended service life, advanced Open, P0 = (ISO Class NORMAL / ABEC-1) (precision) for applications When it is necessary to address installation errors or shaft deformation, but the load is not large and the rotational speed is high.. it's built to handle significant loads (dynamic radial: 27020 N, static radial: 6491 N, ), It weight approximately 0.319 kilogram.
- Min. Order: 1 Piece/(2305, 25 = ID, 62 = OD, 24 = B, 0.319 kg) or according to different suppliers
- Price: Different brands, different quality, different 2305 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Manufacturer Part Code: 2305;
Dimension Inside - id φ: 25 mm;
Dimension Outside - OD Φ: 62 mm;
Dimension Width - B: 24 mm;
Type Of Bore: Cylindrical Bore;
Type of Closure: Open;
Radial Internal Play: CN;
Operation Temp Rating: -40 to 120 ºC;
Dyn. Load Rating: 24900 N;
Stat. Load Rating: 6600 N;
Running Accuracy Class: Class 0;
Limiting speed Max (1/min): 12000 rpm;
Material of Bearing: High Hardness Bearing Steel;
Material of Cage: Steel;
Surface Coating: NO;
Width Of Outer Ring: 24 mm;
Fillet Radius(ra): 1.1 mm;
Bearing Mass (m): 0.73 lbs;
Data Transfering...
Wafangdian AA Bearing Trade Co.,Ltd
Email: [email protected] Tel: 86-159-06428604 2021-12-052305 Self Aligning Ball Bearing 25x62x24mm;
Bore Diameter (id) = 25; Outside Diameter (OD) = 62; Width (B) = 24; r1r2 min = 1.1; Dynamic Load Capacity = 24.4 kn; Static Load Capacity = 6.5 kN; Cu = 0.3 kN; Reference Speed For Grease = 11400 rpm; Maximum Speed RPM = 16000 rpm; Bearing Mass = 0.34kg; Factors e = 0.48; Fa/Fr = e = 1.3; Fa/Fr > e = 2Y0
