23144CCK/C5W33

Bore
220 mm
Outer
370 mm
Width
120 mm
Wight
53.5 kg
Spherical roller bearings, double row
The 23144CCK/C5W33 bearing Self-aligning, capable of withstanding heavy loads and impacts, suitable for applications such as mining and metallurgy where shaft deflection or installation errors are present.

Main technical Specifications

New Designations :
23144CCK/C5W33
Main demensions :
220 × 370 × 120
Bore Dia × Outside Dia × Width Dia (mm)
M :
53.5 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
220 mm
Inside diameter(I.D.)
OD :
370 mm
Outside diameter(O.D.)
T(B) :
120 mm
Thickness(W.D.)
Cr :
1887.372 kN
Radial dynamic load rating
C0r :
2749.739 kN
Radial static load rating
Grease rpm :
1298 r/min
Reference speed
Oil rpm :
1689 r/min
Limiting speed
Category :
Spherical Roller Bearings

Detailed parameters and installation dimensions:

Part Number 23144CCK/C5W33
Internal design CC = Flangeless inner ring, guide ring centred on the inner ring, two stamped steel cages
Bearing Type Spherical roller bearings, double row
Bearing Mass - m 53.5 kg | 117.946 lb
Seal open
Series 231..-CCK/W33
Cage CC = stamped steel cages
Lubrication W33 = Annular groove and three lubrication holes in the outer ring
Bore Type K = Tapered bore, taper 1:12
RIC C5
Units Metric
Rows NO. 2
Manufacturer Part Code 23144 CCK/C5W33
Ring Material GCr15SiMn
Roller Material GCr15SiMn
Dimension
Inside - d φ (mm) 220 mm | 8.661 inch
Outside - D Φ (mm) 370 mm | 14.567 inch
Width - B (mm) 120 mm | 4.724 inch
b 16.7 mm | 0.657 inch
K 9 mm | 0.354 inch
d2 255 mm | 10.039 inch
D1 320 mm | 12.598 inch
Fillet - ra(max.) 3 mm | 0.118 inch
Fillet - r1,r2(min.) 4 mm | 0.157 inch
Angular misalignment 1.5 degrees
Performance
Dynamic Radial Capacity - Cr 1887372 N | 424281 lbf
Static Radial Capacity - C0r 2749739 N | 618141 lbf
Fatigue Radial Capacity - Pu 231828 N | 52114 lbf
Temperature - T(min) -30
Temperature - T(max) +200
Speed ratings (grease) - nB 1298 rpm
Speed ratings (oil) - nG 1689 rpm
Heat stabilization 392 °F (200 °C)
Abutment dimensions
da(min.) 237 mm | 9.331 inch
Da(max.) 353 mm | 13.898 inch
Calculation factor
e 0.3
Y1 2.3
Y2 3.4
Y0 2.2

The 23144CCK/C5W33 is a large Spherical roller bearings, double row, with dimensions 220 mm x 370 mm x 120 mm, designed for Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads, Suitable for Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions, such as Gearboxes, drive shafts, conveying equipment, general machinery.

The 23144CCK/C5W33 Spherical Roller Bearings, featuring Double row (row) construction, CC = stamped steel cages retainer to ensure extended service life, advanced open design, C5 Internal clearance, Its normal operating speed can reach: the grease speed ratings: 1298 rpm, oil speed ratings: 1689 rpm, . it's built to handle significant loads (dynamic radial: 1887372 N, static radial: 2749739 N, ), It effectively reduces friction and wear, enhances load-bearing rigidity, and suppresses vibration and noise, thereby significantly extending equipment service life and ensuring long-term, stable operation under complex working conditions.

  • Min. Order: 1 Piece/(23144CCK/C5W33, 220 = ID, 370 = OD, 120 = B, 53.5 kg) or according to different suppliers
  • Price: There are multiple professional bearing manufacturers and suppliers in China that offer 23144CCK/C5W33. Sending an inquiry will get you quotes from multiple suppliers, allowing you to compare prices, quality, and service to find the most affordable option for 23144CCK/C5W33 bearing.
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

cotizacion del balero skf 3210

hola muy buenas tardes, me podrias dar la cotizacion del balero skf 3210, seria de muy buen agrdado

✨What are the Benefits of choosing 23144CCK/C5W33 bearings?

  • Self-aligning: Allows for significant angular errors or shaft deflection between the shaft and bearing housing, effectively compensating for installation errors and shaft deformation.
  • High load capacity: Featuring a double-row roller structure, it boasts extremely high radial load capacity while also withstanding certain bidirectional axial loads.
  • Adaptable to vibration applications: Performs excellently under impact and vibration loads, exhibiting good durability.
  • Easy installation: Models with tapered bores are typically available, allowing for convenient installation at any position on different optical shafts using adapter sleeves or withdrawal sleeves.
  • The 23144CCK/C5W33 Spherical Roller Bearings adopts a Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads design, Reference SKF technology, with dimensions an inner diameter of 220 mm, an outer diameter of 370 mm, a width of 120 mm, featuring Double row (row) construction from 231..-CCK/W33 (series), optimal operating temperature is generally -30 to +200 degrees Celsius. a clearance of C5, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:1298 Limit Speed Ratings (oil) rpm:1689)for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions

🏭 What are the applications of the 23144CCK/C5W33 bearing?

  • Mining/Metallurgy/Cement: Used in crushers and vibrating screens. Impact resistant, withstands extreme heavy loads, and adaptable to harsh environments.
  • Paper/Steel: Used in rolling mills and roller conveyors. Automatic self-aligning compensation effectively addresses shaft deflection or misalignment.
  • Industrial Transmission: Used in speed reducers and fans. Smooth operation, long service life, and withstands complex composite loads.

Leave A Comment

Other models the same size : 220x370x120

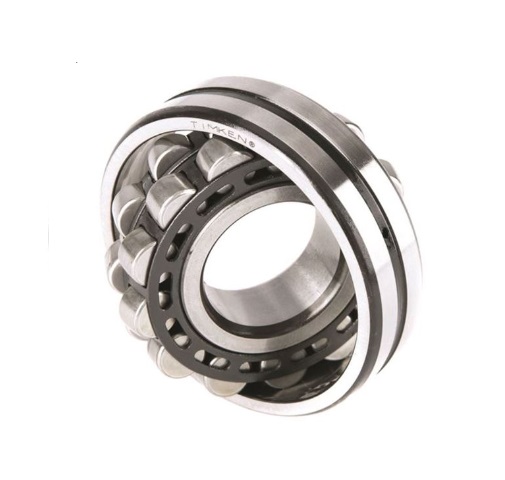

23144KEJW33C3
