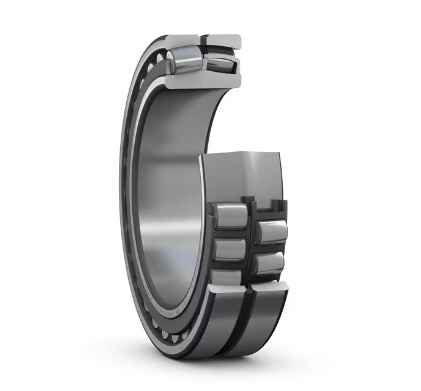

23168 CCK/W33 Spherical Roller Bearings dimensions
New Designations :
23168 CCK/W33
Old Code :
23168CCK/W33
Main demensions :
340 × 580 ×
190
Bore Dia × Outside Dia × Width Dia (mm)
M :
210 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
340 mm
Inside diameter(I.D.)
OD :
580 mm
Outside diameter(O.D.)
T(B) :
190 mm
Thickness(W.D.)
C :
4439.918 kN
Radial dynamic load rating
C0 :
6794.855 kN
Radial static load rating
Grease rpm :
775 r/min
Reference speed
Oil rpm :
964 r/min
Limiting speed
Category :
Spherical Roller Bearings
Detailed parameters and installation dimensions:
| Part Number | 23168 CCK/W33 |
| Internal design | CC = Flangeless inner ring, guide ring centred on the inner ring, two stamped steel cages |
| Seal | open |
| Series | 231..-CCK/W33 |
| Principal Dimension Inside - d φ (mm) | 340 |
| Principal Dimension Outside - D Φ (mm) | 580 |
| Principal Dimension Width - B (mm) | 190 |
| Dynamic Radial Capacity - Cr | 4439918 N | 998093 lbf |
| Cage | CC = stamped steel cages |
| Static Radial Capacity - C0r | 6794855 N | 1527483 lbf |
| Lubrication | W33 = Annular groove and three lubrication holes in the outer ring |
| Fatigue Radial Capacity - Pu | 474770 N | 106728 lbf |
| Calculation coefficient - e | 0.31 |
| Calculation coefficient - Y1 | 2.2 |
| Bore Type | K = Tapered bore, taper 1:12 |
| Speed ratings (grease) - nB | 775 rpm |
| Bearing Type | Spherical roller bearings, double row |
| Speed ratings (oil) - nG | 964 rpm |
| RIC | Normal |
| Dimension - d2 | 394 mm | 15.512 inch |
| Rows NO. | 2 |
| Dimension - D1 | 498 mm | 19.606 inch |
| Temperature - T(min) | -30 |
| Temperature - T(max) | +200 |
| Dimension - b | 22.3 mm | 0.878 inch |
| Dimension - K | 12 mm | 0.472 inch |
| Permissible angular misalignment | 1.5 degrees |
| Ring Material | GCr15SiMn |
| Principal Dimension Inside - d φ (inch) | 13.386 |
| Principal Dimension Outside - D Φ (inch) | 22.835 |
| Principal Dimension Width - B (inch) | 7.480 |
| Manufacturer Part Code | 23168CCK/W33 |
| Fillet dimensions - r1,r2(min.) | 5 mm | 0.197 inch |
| Units | Metric |
| Abutment dimensions - da(min.) | 360 mm | 14.173 inch |
| Abutment dimensions - Da(max.) | 560 mm | 22.047 inch |
| Fillet dimensions - ra(max.) | 4 mm | 0.157 inch |
| Bearing Mass - m | 210 kg | 462.966 lb |
| Roller Material | GCr15SiMn |
| Calculation coefficient - Y2 | 3.3 |
| Calculation coefficient - Y0 | 2.2 |
| Heat stabilization | 392 °F (200 °C) |
Spherical Roller Bearings 23168 CCK/W33, 210 kg Bearing mass, (340*580*190 mm), 340 mm d (Bore: diameter of the inner ring), 580 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 190 mm B (Width: nominal width of the bearing), 4439918 N radial dynamic load capacity (Dyn. Cr), 6794855 N radial static load capacity (Stat. Cor), 775 r/min Maximum RPM (Speed in grease), 964 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(23168 CCK/W33, 340 = ID, 580 = OD, 190 = B, 210 kg) or according to different suppliers
- Price: Different brands, different quality, different 23168 CCK/W33 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From SKF 23168 CCK/W33 23168 CCK/W33;
Manufacturer Part Code: 23168 CCK/W33;
Dimension Inside - id φ: 13.3858 inch = 340 mm;
Type Of Bore: Tapered Bore, Taper 1:12;
Radial Internal Play: CN;
Type of Closure: None;
Radial (Stat.load Cor): 1528100 lbf;
Material of Cage: Bearing steel;
Material of Bearing: Bearing steel;
Type Of Cage: Sheet metal;
Width Of Outer Ring: 7.4803 inch = 190 mm;
Width Of Inner Ring: 7.4803 inch = 190 mm;
Locating: None;
Dimension Outside - OD Φ: 22.8346 inch = 580 mm;
Rolling Body: Spherical;
Number of Rows & Fill Slot: 2;
Summary: Bearing, Spherical Roller, Double Row, Taper bore 1: 12, Open, Steel cage, C0;
ABEC: ABEC 1;
Material Of Coating: None;
Lubrication: Unlubricated;
Lubrication Design (Grease): Hole and groove;
Material Of Roller: Bearing steel
Manufacturer Part Code: 23168 CCK/W33;
Dimension Inside - id φ: 13.3858 inch = 340 mm;
Type Of Bore: Tapered Bore, Taper 1:12;
Radial Internal Play: CN;
Type of Closure: None;
Radial (Stat.load Cor): 1528100 lbf;
Material of Cage: Bearing steel;
Material of Bearing: Bearing steel;
Type Of Cage: Sheet metal;
Width Of Outer Ring: 7.4803 inch = 190 mm;
Width Of Inner Ring: 7.4803 inch = 190 mm;
Locating: None;
Dimension Outside - OD Φ: 22.8346 inch = 580 mm;
Rolling Body: Spherical;
Number of Rows & Fill Slot: 2;
Summary: Bearing, Spherical Roller, Double Row, Taper bore 1: 12, Open, Steel cage, C0;
ABEC: ABEC 1;
Material Of Coating: None;
Lubrication: Unlubricated;
Lubrication Design (Grease): Hole and groove;
Material Of Roller: Bearing steel
