23188-K-MB+H3188

Bore
440 mm
Outer
720 mm
Width
226 mm
Wight
481 kg

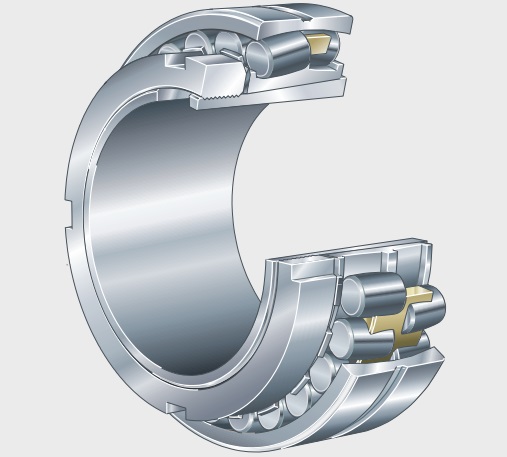

Spherical roller bearings With adapter sleeve With central rib, Locknut with retaining bracket
Self-aligning, capable of withstanding heavy loads and impacts, suitable for applications such as mining and metallurgy where shaft deflection or installation errors are present.

Main technical Specifications

New Designations :
23188-K-MB+H3188
Main demensions :
440 × 720 × 226
Bore Dia × Outside Dia × Width Dia (mm)
M :
481 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
440 mm
Inside diameter(I.D.)
OD :
720 mm
Outside diameter(O.D.)
T(B) :
226 mm
Thickness(W.D.)
Cr :
5198.931 kN
Radial dynamic load rating
C0r :
10398.902 kN
Radial static load rating
Grease rpm :
399 r/min
Reference speed
Oil rpm :
680 r/min
Limiting speed
Category :
Spherical Roller Bearings

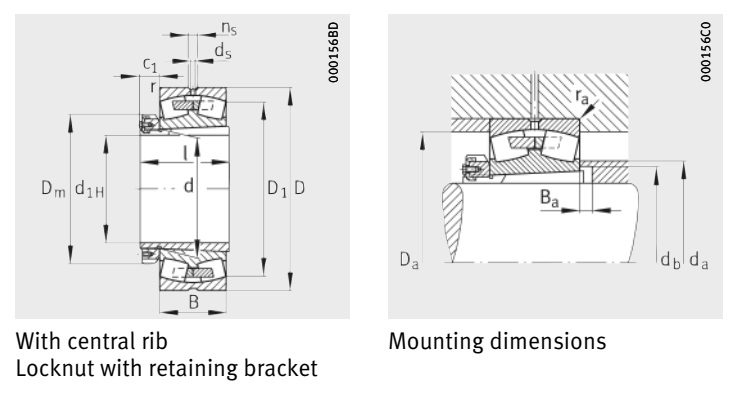

Detailed parameters and installation dimensions:

Part Number 23188-K-MB+H3188
Seal Open
Cage MB = Solid brass cage, guidance on inner ring
Dimension - d1H 410
Dimension - r(min.) 6 mm | 0.2362 inch
Dimension - D1 626 mm | 24.6456 inch
Series 231..-K-MB+H3188
Bore Type K = Tapered bore (taper 1:12)
Adapter sleeve H3188
Adapter sleeve Mass 103 kg | 227.074 lb
Radial Dynamic Capacity - Cr 5198931 N | 1168719 lbf
Radial static Capacity - C0r 10398902 N | 2337673 lbf
Tolerance class PN (ABEC-1)
Roller Material GCr15SiMn
Dimension - ds 12.5 mm | 0.4921 inch
Dimension - ns 23.5 mm | 0.9252 inch
Dimension - dm 560 mm | 22.0472 inch
Dimension - l 307 mm | 12.0866 inch
Dimension - c1 89 mm | 3.5039 inch
Ring Material GCr15SiMn
Load radial
Row Two
Reference speed - nB 399 min–1
Limiting speed - nG 680 min–1
Bearing Type Spherical roller bearings With adapter sleeve With central rib, Locknut with retaining bracket
Bearing Mass - m 378 kg | 833.339 lb
Dimension Inside - d φ 440 mm | 17.3228 inch
Dimension Outside - D Φ 720 mm | 28.3464 inch
Dimension Width - B 226 mm | 8.8976 inch
Interchangeable FAG 23188-K-MB+H3188
Mounting dimensions - da(max.) 504 mm | 19.8425 inch
Mounting dimensions - Da(max.) 694 mm | 27.3228 inch
Mounting dimensions - db(min.) 463 mm | 18.2283 inch
Total Mass 481 kg | 1060.413 lb
Manufacturer Part Code 23188KMB+H3188
Temperature - T(min) -30°C
Temperature - T(max) up +200°C
Calculation coefficient - e 0.32
Calculation coefficient - Y1 2.1
RIC CN
Measurement Metric
Mounting dimensions - Ba(min.) 17 mm | 0.6693 inch
Mounting dimensions - ra(max.) 5 mm | 0.1969 inch
Radial Fatigue Capacity - Cur 699732 N | 157299 lbf
Calculation coefficient - Y2 3.13
Calculation coefficient - Y0 2.06

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

23188-K-MB+H3188 refers to a type of 231..-K-MB+H3188 large Spherical roller bearings With adapter sleeve With central rib, Locknut with retaining bracket , with dimensions 440 mm (Bore) x 720 mm (OD) x 226 mm (Width), designed for Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads, primarily used in Gearboxes, drive shafts, conveying equipment, general machinery, Its normal operating speed can reach: the grease speed ratings: 399 rpm, oil speed ratings: 680 rpm, featuring Two (row) construction, MB = Solid brass cage, guidance on inner ring retainer to ensure extended service life, advanced Open, PN (ABEC-1) (precision) for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions.. it's built to handle significant loads (dynamic radial: 5198931 N, static radial: 10398902 N, ), It weight approximately 481 kilogram.

  • Min. Order: 1 Piece/(23188-K-MB+H3188, 440 = ID, 720 = OD, 226 = B, 481 kg) or according to different suppliers
  • Price: Different brands, different quality, different 23188-K-MB+H3188 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

RFQ for NSK UC-212 bearing

Hello, Item Description Part Number Unit Qty Need By Unit Price Extended Amount 1 BEARING: BALL NSK UC-212 N

✨What are the Benefits of choosing 23188-K-MB+H3188 bearings?

  • Self-aligning: Allows for significant angular errors or shaft deflection between the shaft and bearing housing, effectively compensating for installation errors and shaft deformation.
  • High load capacity: Featuring a double-row roller structure, it boasts extremely high radial load capacity while also withstanding certain bidirectional axial loads.
  • Adaptable to vibration applications: Performs excellently under impact and vibration loads, exhibiting good durability.
  • Easy installation: Models with tapered bores are typically available, allowing for convenient installation at any position on different optical shafts using adapter sleeves or withdrawal sleeves.
  • The 23188-K-MB+H3188 Spherical Roller Bearings adopts a Self-aligning, high load-bearing capacity, impact resistant, and adaptable to heavy loads design, Reference FAG technology, with dimensions an inner diameter of 440 mm, an outer diameter of 720 mm, a width of 226 mm, featuring Two (row) construction from 231..-K-MB+H3188 (series), optimal operating temperature is generally -30 to up +200 degrees Celsius. With grade precision of PN (ABEC-1) and a clearance of CN, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:399 Limit Speed Ratings (oil) rpm:680)for applications Provides stable and reliable support for the rotating shaft under harsh, heavy-load conditions and in misaligned working conditions.

🏭 What are the applications of the 23188-K-MB+H3188 bearing?

  • Mining/Metallurgy/Cement: Used in crushers and vibrating screens. Impact resistant, withstands extreme heavy loads, and adaptable to harsh environments.
  • Paper/Steel: Used in rolling mills and roller conveyors. Automatic self-aligning compensation effectively addresses shaft deflection or misalignment.
  • Industrial Transmission: Used in speed reducers and fans. Smooth operation, long service life, and withstands complex composite loads.
