24192ECAK30/W33

Bore
460 mm
Outer
760 mm
Width
300 mm
Wight
560 kg

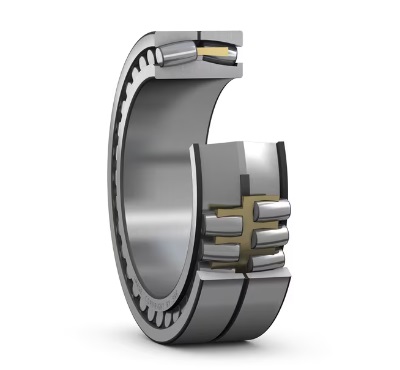

Spherical roller bearings, double row
Extra-large, heavy-duty design, wear-resistant and impact-resistant, used in roller presses and heavy industrial equipment in the mining and cement industries.

Main technical Specifications

New Designations :
24192ECAK30/W33
Main demensions :
460 × 760 × 300
Bore Dia × Outside Dia × Width Dia (mm)
M :
560 kg
Weight
HS Code :
8482300000
Bearing customs code
ID :
460 mm
Inside diameter(I.D.)
OD :
760 mm
Outside diameter(O.D.)
T(B) :
300 mm
Thickness(W.D.)
Cr :
8607.764 kN
Radial dynamic load rating
C0r :
14599.864 kN
Radial static load rating
Grease rpm :
274 r/min
Reference speed
Oil rpm :
423 r/min
Limiting speed
Category :
Spherical Roller Bearings

Detailed parameters and installation dimensions:

Part Number 24192ECAK30/W33
Internal design E = Optimized internal design for increased load carrying capacity;
CA = Retaining flanges on the inner ring, guide ring centred on the inner ring, machined brass cage
Bearing Type Spherical roller bearings, double row
Bearing Mass - m 560 kg | 1234.576 lb
Seal open
Series 241..-ECAK30/W33
Cage CA = brass cage
Lubrication W33 = Annular groove and three lubrication holes in the outer ring
Bore Type K30 = Tapered bore, taper 1:30
RIC Normal
Units Metric
Rows NO. 2
Manufacturer Part Code 24192ECAK30/W33
Ring Material GCr15SiMn
Roller Material GCr15SiMn

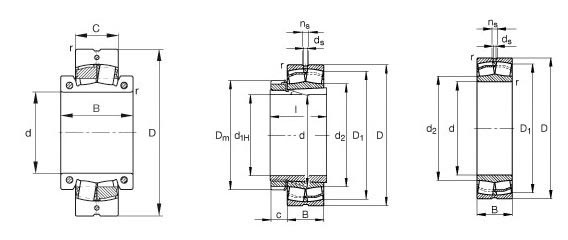

Dimension
Inside - d φ (mm) 460 mm | 18.110 inch
Outside - D Φ (mm) 760 mm | 29.921 inch
Width - B (mm) 300 mm | 11.811 inch
b 22.3 mm | 0.878 inch
K 12 mm | 0.472 inch
d2 543 mm | 21.378 inch
D1 649 mm | 25.551 inch
Fillet - ra(max.) 6 mm | 0.236 inch
Fillet - r1,r2(min.) 7.5 mm | 0.295 inch
Angular misalignment 2.5 degrees
Performance
Dynamic Radial Capacity - Cr 8607764 N | 1935025 lbf
Static Radial Capacity - C0r 14599864 N | 3282049 lbf
Fatigue Radial Capacity - Pu 999396 N | 224664 lbf
Temperature - T(min) -30
Temperature - T(max) +200
Speed ratings (grease) - nB 274 rpm
Speed ratings (oil) - nG 423 rpm
Heat stabilization 392 °F (200 °C)

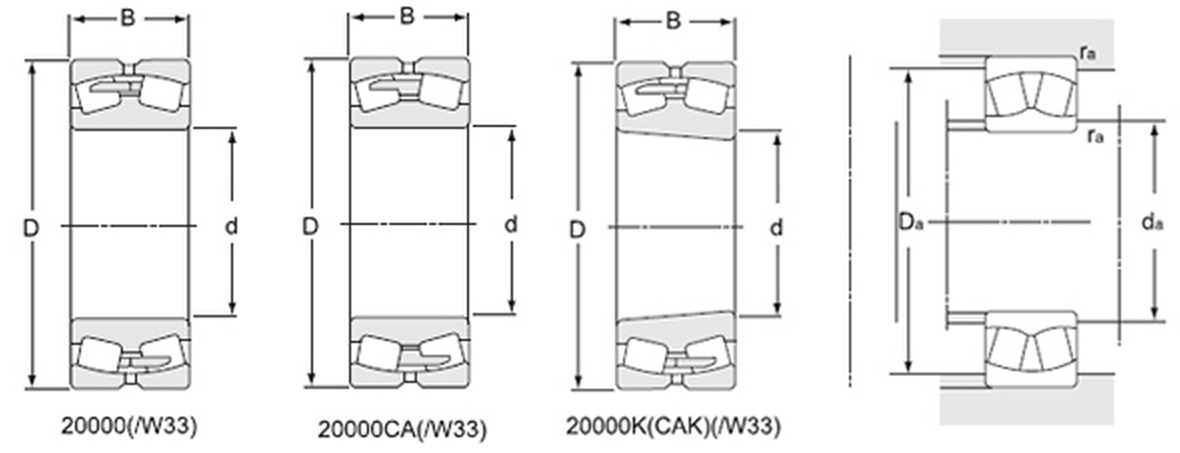

Abutment dimensions
da(min.) 492 mm | 19.370 inch
Da(max.) 728 mm | 28.661 inch
Calculation factor
e 0.37
Y1 1.8
Y2 2.7
Y0 1.8

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

24192ECAK30/W33 refers to a type of 241..-ECAK30/W33 large Spherical roller bearings, double row, with dimensions 460 mm (Bore) x 760 mm (OD) x 300 mm (Width), designed for High load-bearing capacity, impact resistant, self-aligning, and easy to install, primarily used in Wind turbine main shaft, large ship main shaft, giant construction machinery, Its normal operating speed can reach: the grease speed ratings: 274 rpm, oil speed ratings: 423 rpm, featuring 2 (row) construction, CA = brass cage retainer to ensure extended service life, advanced open, for applications Giant construction machinery operating under harsh, heavy-load, and misaligned conditions, such as wind turbine main shafts, large ship propellers, and large excavator slewing bearings.. it's built to handle significant loads (dynamic radial: 8607764 N, static radial: 14599864 N, ), It weight approximately 560 kilogram.

  • Min. Order: 1 Piece/(24192ECAK30/W33, 460 = ID, 760 = OD, 300 = B, 560 kg) or according to different suppliers
  • Price: Different brands, different quality, different 24192ECAK30/W33 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

RFQ Spherical Roller Bearing 21319 CC/W33 95x200x45 mm

Dear Ms., Mr. One of the main sector that we operate is the Oil & Gas industry. We have customer such as Oil & Gas Exploration companies, Refineries, Tank Farms, Oil Transportation companies

✨What are the Benefits of choosing 24192ECAK30/W33 bearings?

  • 240 Series (Standard)
  • High load capacity and high temperature resistance: Provides strong radial load capacity while withstanding operating temperatures up to 200°C, suitable for thermal equipment such as continuous casting machines.
  • Space saving: Lower cross-sectional height helps reduce the overall size of the equipment.
  • 241 Series (Reinforced)
  • Ultimate load capacity and impact resistance: Longer and more numerous rollers significantly increase dynamic load ratings, especially capable of withstanding heavy loads and strong impacts, such as in mining crushers.
  • Long service life and sealable: Optimized roller profile reduces edge stress, extending service life by up to 15%; optional seal design reduces maintenance and lubrication consumption.
    • Both models possess excellent self-aligning capabilities, compensating for installation errors and shaft deflection to ensure smooth operation.
  • The 24192ECAK30/W33 Spherical Roller Bearings adopts a High load-bearing capacity, impact resistant, self-aligning, and easy to install design, Reference SKF technology, with dimensions an inner diameter of 460 mm, an outer diameter of 760 mm, a width of 300 mm, featuring 2 (row) construction from 241..-ECAK30/W33 (series), optimal operating temperature is generally -30 to +200 degrees Celsius. a clearance of Normal, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:274 Limit Speed Ratings (oil) rpm:423)for applications Giant construction machinery operating under harsh, heavy-load, and misaligned conditions, such as wind turbine main shafts, large ship propellers, and large excavator slewing bearings.

🏭 What are the applications of the 24192ECAK30/W33 bearing?

  • Metallurgy/Continuous Casting/Rolling Mills (240/241 series): High temperature resistance up to 200°C, stable and reliable operation; the 241 series can withstand heavy impacts during rolling, extending equipment life.
  • Mining/Crushing/Heavy-duty Vibrating Screens (241 series): Extreme load-bearing capacity to cope with strong impacts; optimized roller design reduces edge stress, extending service life by more than 15%.
  • Paper Making/Blowers/General Machinery (240 series): Saves installation space, allows higher speeds, while reducing frictional heat and vibration noise.
