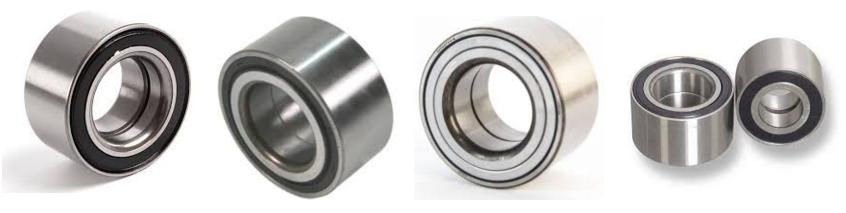

28BWD03A Wheel hub bearings dimensions
New Designations :
28BWD03A
Main demensions :
28 × 58 ×
42
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.40 kg
Weight
ID :
28 mm
Inside diameter(I.D.)
OD :
58 mm
Outside diameter(O.D.)
T(B) :
42 mm
Thickness(W.D.)
C :
33.5 kN
Radial dynamic load rating
C0 :
25.7 kN
Radial static load rating
Category :
Wheel hub bearings
Detailed parameters and installation dimensions:
b: 21 mm, rx(Min.): 2.8 mm, ry(Min.): 2.8 mm
SUZUKI, front wheel
Wheel hub bearings 28BWD03A, 0.40 kg Bearing mass, (28*58*42 mm), 28 mm d (Bore: diameter of the inner ring), 58 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 42 mm B (Width: nominal width of the bearing), 33500 N radial dynamic load capacity (Dyn. Cr), 25700 N radial static load capacity (Stat. Cor),
- Min. Order: 1 Piece/(28BWD03A, 28 = ID, 58 = OD, 42 = B, 0.40 kg) or according to different suppliers
- Price: Different brands, different quality, different 28BWD03A prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
The equivalents & Variants model of 28BWD03A Wheel hub bearings:
Koyo DAC28582RK, NSK 28BWD03A, Suzuki 09267-28001
