language:

313822

Bore
280 mm
Outer
390 mm
Width
220 mm
Wight
87.2 kg
Four-row cylindrical roller bearing for rolling mills
Extremely high radial load capacity and rigidity, allowing axial displacement (floating), specifically designed for rolling mill rolls and heavy-duty roller conveyor equipment in metallurgy, mining, and other industries.

Main technical Specifications

New Designations :
313822
Main demensions :
280 × 390 × 220
Bore Dia × Outside Dia × Width Dia (mm)
M :
87.2 kg
Weight
HS Code :
8482500090
Bearing customs code
ID :
280 mm
Inside diameter(I.D.)
OD :
390 mm
Outside diameter(O.D.)
T(B) :
220 mm
Thickness(W.D.)
Cr :
2797.848 kN
Radial dynamic load rating
C0r :
4998.43 kN
Radial static load rating
Grease rpm :
1182 r/min
Reference speed
Oil rpm :
1689 r/min
Limiting speed
Category :
Four-row cylindrical roller bearings

Detailed parameters and installation dimensions:

Part Number 313822
Bore Type Cylindrical bore
Design variant BC4.1/WO
Series 3138..
Coating No
Dimension Inside - d φ 280 mm | 11.024 inch
Dimension Outside - D Φ 390 mm | 15.354 inch
Units Metric
Seal Open
Radial Dynamic Capacity - Cr 2797848 N | 628956 lbf
Rows NO. Four
Bearing Mass - m 87.2 kg | 192.241 lb
Radial Static Capacity - C0r 4998430 N | 1123647 lbf
Equivalent 507339B , FC5678220 , BC4-0107
Speed ratings (grease) - nB 1182 min–1
Heat stabilized 150 °C(300 °F)
Roller Material GCr15SiMn
Dimension Inner - B 220 mm | 8.661 inch
Dimension Outer - C 220 mm | 8.661 inch
Speed ratings (oil) - nG 1689 min–1
Lubricant No
Fatigue load limit - Pu 487795 N | 109656 lbf
Manufacturer Part Code 313822
Dimension - D1 352 mm | 13.858 inch
Dimension - F 312 mm | 12.283 inch
Ring Material GCr15SiMn
RIC C4
Dimension - r1, r2(min.) 3 mm
Dimension - r3, r4(min.) 3 mm
Bearing part Complete
Ring outer ring(5),inner ring(0)
Flange No
Permissible axial displacement - s 3 mm | 0.118 inch
Cage Machined brass cage
Bearing Type Four-row cylindrical roller bearing for rolling mills
Separable bearing ring LBC4-0107
Bearing ring with roller and cage assembly RBC4-0107
Relubrication No

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

313822 refers to a type of 3138.. large Four-row cylindrical roller bearing for rolling mills, with dimensions 280 mm (Bore) x 390 mm (OD) x 220 mm (Width), designed for Extremely high load-bearing capacity, strong radial rigidity, separable, and impact resistant, primarily used in Rolling mill support rolls, Its normal operating speed can reach: the grease speed ratings: 1182 rpm, oil speed ratings: 1689 rpm, featuring Four (row) construction, Machined brass cage retainer to ensure extended service life, advanced Open, for applications Rolling mills (Metal rolling), heavy machinery, large axle systems, and construction/mining equipment.. it's built to handle significant loads (dynamic radial: 2797848 N, static radial: 4998430 N, ), It weight approximately 87.2 kilogram.

  • Min. Order: 1 Piece/(313822, 280 = ID, 390 = OD, 220 = B, 87.2 kg) or according to different suppliers
  • Price: Different brands, different quality, different 313822 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

RFQ Bearing FAG Part number KR19C-2RS or INA Part number: KRE 19PP

Appreciate your offer to Bearing FAG Part number KR19C-2RS or INA Part number: KRE 19PP

✨What are the Benefits of choosing 313822 bearings?

  • Extremely high load-bearing capacity: Designed to withstand extremely high radial loads, it is ideal for equipment such as rolling mills.
  • Small footprint: Provides maximum radial support within a limited space, with a compact structure.
  • Easy installation and maintenance: Employs a separable design (the inner ring with roller assembly can be separated from the outer ring), facilitating installation, disassembly, and maintenance.
  • Low frictional heat generation: Low friction between the rollers and the flanges results in low temperature rise, suitable for high-speed operation.
  • Long service life: Maintains high reliability and long service life even under harsh conditions such as high loads, high temperatures, and water erosion.
  • The 313822 Four-row cylindrical roller bearings adopts a Extremely high load-bearing capacity, strong radial rigidity, separable, and impact resistant design, with dimensions an inner diameter of 280 mm, an outer diameter of 390 mm, a width of 220 mm, featuring Four (row) construction from 3138.. (series), a clearance of C4, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:1182 Limit Speed Ratings (oil) rpm:1689)for applications Rolling mills (Metal rolling), heavy machinery, large axle systems, and construction/mining equipment.

🏭 What are the applications of the 313822 bearing?

  • Iron and Steel Metallurgy (Rolling Mill Roll Necks, Continuous Casting Machine Drive Rolls): Withstands extremely high radial loads, ensuring rolling accuracy and significantly extending bearing life in high-temperature water erosion environments.
  • Mining (Crushers, Heavy-Duty Vibrating Screens): Withstands strong impacts and dust pollution, maintaining continuous and stable operation under harsh conditions.
  • Heavy Machinery (Large Gearboxes, Rotary Kiln Support Rollers): Provides ultra-high rigidity, supporting heavy-duty rotating components and effectively reducing downtime for maintenance.

Comments

  1. tradebearings
    Email: [email protected] Tel: 86-0578-18167086030 2018-12-29

    Dear Sir,

    We are a bearing supplier in Sri Lanka, we would like to request for a quotation for the following items:

    313822 - 36Nos
    313824 - 72Nos
    315642 - 108Nos

    Please send me the quotation for these items asap.

    Thank you,

    313822/FC5678220 bearing 280x390x220mm

Leave A Comment

Other models the same size : 280x390x220

280RV3901

Four-row cylindrical roller bearings   280 * 390 * 220 , Cr: 2115.478, C0r: 4785.282, M: 80.9

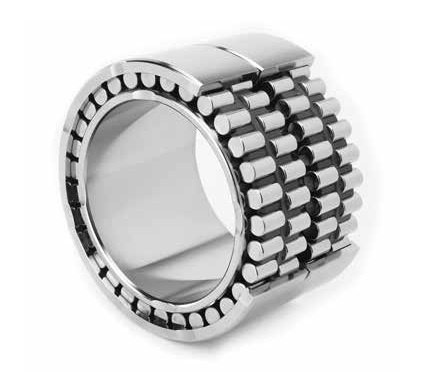

280RYL1783

Four-row cylindrical roller bearings   280 * 390 * 220 , Cr: 2609.495, C0r: 5193.225, M: 81.9

Z-507339.ZL

Four-row cylindrical roller bearings   280 * 390 * 220 , Cr: 2274.501, C0r: 4293.724, M: 81.5

4R5604C4

Four-row cylindrical roller bearings   280 * 390 * 220 , Cr: , C0r: ,

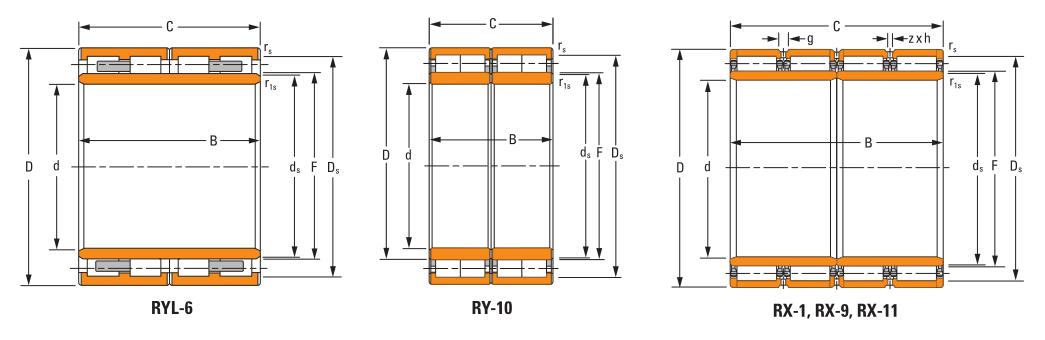

280RYL1783/280ARVSL1783/312RYSL1783
