3205A

Bore
25 mm
Outer
52 mm
Width
20.6 mm
Wight
0.18 kg
Angular Contact Ball Bearing with filling slot, Open Type, Double Row
Combined axial and radial loads in both directions, with a compact structure and high rigidity, it is widely used in general machinery such as motors, pumps, compressors, and industrial gearboxes.

Main technical Specifications

New Designations :
3205A
Old Code :
3256205
Main demensions :
25 × 52 × 20.6
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.18 kg
Weight
HS Code :
8482103000
Bearing customs code
ID :
25 mm
Inside diameter(I.D.)
OD :
52 mm
Outside diameter(O.D.)
T(B) :
20.6 mm
Thickness(W.D.)
Cr :
22.347 kN
Radial dynamic load rating
C0r :
21.824 kN
Radial static load rating
Grease rpm :
7238 r/min
Reference speed
Oil rpm :
9783 r/min
Limiting speed
Category :
Double row angular contact ball bearings

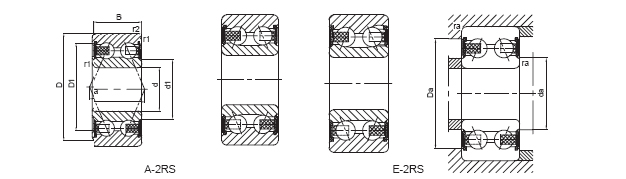

Detailed parameters and installation dimensions:

Part Number 3205A
Accuracy class P0 (ABEC 1)
Temperature - T(min) -40 °C
Temperature - T(max) 120 °C
Cage Stamping steel cage
Bore Cylindrical bore
Mounting dimensions - da min. 30.5 mm | 1.2008 inch
Mounting fillet radius - ras max 1 mm | 0.039 inch
Speed ratings (grease) - nB 7238 min–1
Units Metric
Speed ratings (oil) - nG 9783 min–1
Row NO. 2
load Radial
Radial Dynamic Capacity - Cr 22347 N | 5023 lbf
Seal Open
Radial Static Capacity - C0r 21824 N | 4906 lbf
Dimension Inside - d φ 25 mm | 0.9843 inch
Dimension Outside - D Φ 52 mm | 2.0472 inch
Dimension Thickness - B 20.6 mm | 0.8110 inch
Contact angle - α 30 °
Type 32
Temperature - T(min) -40 °F
Temperature - T(max) 250 °F
Ring Material GCr15SiMn
Ball Material GCr15SiMn
Manufacturer Part Code 3205 A
Outside Ring Type Straight
Bearing Type Angular Contact Ball Bearing with filling slot, Open Type, Double Row
Mounting dimensions - Da max. 46.5 mm | 1.831 inch
Internal clearance CN
Series 32 series (32..A)
Dimension Point - a 32.5 mm | 1.2795 inch

The equivalents & Variants model of 3205A Double row angular contact ball bearings:

NSK 5205, MRC 5205-SBK, TORRINGTON,FAFNIR 5205K, RHP LDJK25, NACHI 5205A, KOYO 5205, NTN 5205, FAG 3205B, SKF 3205A,

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

3205A refers to a type of 32 series (32..A) Angular Contact Ball Bearing with filling slot, Open Type, Double Row, with dimensions 25 mm (Bore) x 52 mm (OD) x 20.6 mm (Width), designed for withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity, primarily used in Industrial pumps and compressors, Its normal operating speed can reach: the grease speed ratings: 7238 rpm, oil speed ratings: 9783 rpm, featuring 2 (row) construction, Stamping steel cage retainer to ensure extended service life, advanced Open, P0 (ABEC 1) (precision) for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs.. it's built to handle significant loads (dynamic radial: 22347 N, static radial: 21824 N, ), It weight approximately 0.18 kilogram.

  • Min. Order: 1 Piece/(3205A, 25 = ID, 52 = OD, 20.6 = B, 0.18 kg) or according to different suppliers
  • Price: There are multiple professional bearing manufacturers and suppliers in China that offer 3205A. Sending an inquiry will get you quotes from multiple suppliers, allowing you to compare prices, quality, and service to find the most affordable option for 3205A bearing.
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

3205A Ball Bearing, 32 Series, Angular Contact, Cylindrical Bore 25 mm = Bore (d), 52 mm = D, 20.6 mm = B, 30 °, 23400 N = Load Capacity; Brand: Interchangeable From NTN 3205A or OEM;
Material Of Bearing: High Hardness Bearing Steel
Material Of Cage: Pressed Steel
Seal Close Type: Open
Max speed: 7300 rpm Reference speed 1/min (Grease), 9800 rpm Limiting speed 1/min (Oil)
Bearing Series: 32 Series
Operating Temperature Range: -40 to 120 °C
Bore Type: Cylindrical Bore
Bore Dia. (d): 25 mm
Outside Dia. (D): 52 mm
NO. of Rows: 2
Width (B): 20.6 mm
Contact Angle (α): 30 °
Load Rating: 23400 N

Купим подшипник NSK NU 220E

Купим NSK NU 220E-1шт, сальник 123,5-163-15/20,5-1шт

✨What are the Benefits of choosing 3205A bearings?

  • Bidirectional Load Capacity: A single bearing can simultaneously withstand bidirectional axial and radial loads, eliminating the need for paired installation.
  • High Rigidity and Anti-Overturning: A large contact angle design effectively resists tilting moments, ensuring shaft system stability.
  • Compact Structure: Occupies minimal axial space, simplifying housing design and facilitating installation.
  • The 3205A Double row angular contact ball bearings adopts a withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity design, Reference NTN technology, with dimensions an inner diameter of 25 mm, an outer diameter of 52 mm, a width of 20.6 mm, featuring 2 (row) construction from 32 series (32..A) (series), optimal operating temperature is generally -40 to 120 degrees Celsius. With grade precision of P0 (ABEC 1) and a clearance of CN, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:7238 Limit Speed Ratings (oil) rpm:9783)for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs.

🏭 What are the applications of the 3205A bearing?

  • Gearboxes/Reducers: Used in industrial gearboxes and planetary reducers. Withstands bidirectional composite loads, provides high rigidity support, and ensures smooth transmission.
  • Pumps/Compressors: Used in centrifugal pumps, screw pumps, and refrigeration compressors. Precise axial positioning, compact structure, and space-saving installation.
  • Agitators/Worm Gear Drives: Used in agitators, worm gear reducers, and machine tool indexing heads. Effectively resists tilting moments; a single bearing solves bidirectional axial positioning.
