3208 E-2Z

Bore
40 mm
Outer
80 mm
Width
30.2 mm
Wight
- kg

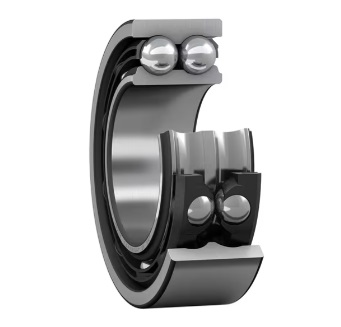

Double row angular contact ball bearings
Combined axial and radial loads in both directions, with a compact structure and high rigidity, it is widely used in general machinery such as motors, pumps, compressors, and industrial gearboxes.

Main technical Specifications

New Designations :
3208 E-2Z
Old Code :
3208-E-2Z
Main demensions :
40 × 80 × 30.2
Bore Dia × Outside Dia × Width Dia (mm)
HS Code :
8482103000
Bearing customs code
ID :
40 mm
Inside diameter(I.D.)
OD :
80 mm
Outside diameter(O.D.)
T(B) :
30.2 mm
Thickness(W.D.)
Category :
Double row angular contact ball bearings

Detailed parameters and installation dimensions:

Weight(lbs.): 1.212

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

3208 E-2Z refers to a type of Double row angular contact ball bearings, with dimensions 40 mm (Bore) x 80 mm (OD) x 30.2 mm (Width), designed for withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity, primarily used in Industrial pumps and compressors, for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs.

  • Min. Order: 1 Piece/(3208 E-2Z, 40 = ID, 80 = OD, 30.2 = B, kg) or according to different suppliers
  • Price: Different brands, different quality, different 3208 E-2Z prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

I need a quote SKF bearing N216EC

I need a quote as soon as SKF bearing N216EC, please please contact me soon. including delivery time.

✨What are the Benefits of choosing 3208 E-2Z bearings?

  • Bidirectional Load Capacity: A single bearing can simultaneously withstand bidirectional axial and radial loads, eliminating the need for paired installation.
  • High Rigidity and Anti-Overturning: A large contact angle design effectively resists tilting moments, ensuring shaft system stability.
  • Compact Structure: Occupies minimal axial space, simplifying housing design and facilitating installation.
  • The 3208 E-2Z Double row angular contact ball bearings adopts a withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity design, with dimensions an inner diameter of 40 mm, an outer diameter of 80 mm, a width of 30.2 mm, ensure the equipment operates more stably for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs.

🏭 What are the applications of the 3208 E-2Z bearing?

  • Gearboxes/Reducers: Used in industrial gearboxes and planetary reducers. Withstands bidirectional composite loads, provides high rigidity support, and ensures smooth transmission.
  • Pumps/Compressors: Used in centrifugal pumps, screw pumps, and refrigeration compressors. Precise axial positioning, compact structure, and space-saving installation.
  • Agitators/Worm Gear Drives: Used in agitators, worm gear reducers, and machine tool indexing heads. Effectively resists tilting moments; a single bearing solves bidirectional axial positioning.

Leave A Comment

Other models the same size : 40x80x30.2

3208 A

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 8818, Oil rpm: 7969, M: 0.59

3208 A-2RS1/MT33

Double row angular contact ball bearings   40 * 80 * 30.2 Oil rpm: 5600, M: 0.57

3208 A-2RS1TN9/MT33

Double row angular contact ball bearings   40 * 80 * 30.2 Oil rpm: 5584, M: 0.585

3208 A-2Z/MT33

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 8000, Oil rpm: 8000, M: 0.57

3208 A-2ZTN9/MT33

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 8849, Oil rpm: 7932, M: 0.587

3208 ATN9

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 8902, Oil rpm: 7890, M: 0.569

5208 A

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 8000, Oil rpm: 8000, M: 0.58

5208 A-2RS1

Double row angular contact ball bearings   40 * 80 * 30.2 Grease rpm: 1.43, Oil rpm: 5600, M: 0.57
