32215-A Single row taper roller bearings dimensions
New Designations :
32215-A
Old Code :
32215A
Main demensions :
75 × 130 ×
33.25
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.93 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
75 mm
Inside diameter(I.D.)
OD :
130 mm
Outside diameter(O.D.)
T(B) :
33.25 mm
Thickness(W.D.)
C :
169.878 kN
Radial dynamic load rating
C0 :
226.465 kN
Radial static load rating
Grease rpm :
3190 r/min
Reference speed
Oil rpm :
4945 r/min
Limiting speed
Category :
Single row taper roller bearings

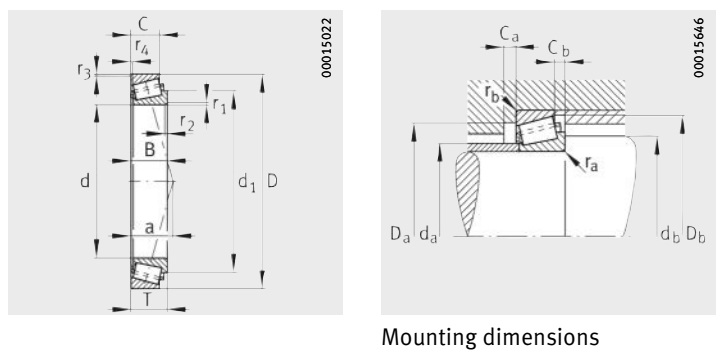

Detailed parameters and installation dimensions:
| Part Number | 32215-A |
| Seal | Open |
| Accuracy class | PN |
| Series | 322 series (322..-A) |
| Reference speed - nB | 3190 min–1 |
| Limiting speed - nG | 4945 min–1 |
| Bearing Mass - m | 1.93 kg | 4.255 lb |
| Dimension Inside - d φ | 75 mm | 2.953 inch |
| Dimension Outside - D Φ | 130 mm | 5.118 inch |
| Dimension Thickness - T | 33.25 mm | 1.309 inch |
| Internal_design | A = Modified internal construction |
| Heat treatment | Standard |
| Fatigue Radial Capacity - Cur | 27850 N | 6260 lbf |
| Dimension Cone - B | 31 mm | 1.220 inch |
| Dimension Cup - C | 27 mm | 1.063 inch |
| Equivalent | 32215A , 32215A.F22 |
| Cage | Stamping steel, roller-guided |
| Dimension - r1, r2(min.) | 2 mm | 0.079 inch |
| Dimension - r3, r4(min.) | 1.5 mm | 0.059 inch |
| Dimension - a | 29 mm | 1.142 inch |
| Dimension - d1 | 101.6 mm | 4.000 inch |
| Rows NO. | One |
| Mounting dimensions - da(max.) | 85 mm | 3.346 inch |
| Mounting dimensions - db(min.) | 84 mm | 3.307 inch |
| Bore Type | Z = cylindrical bore |
| Roller Material | GCr15SiMn |
| Mounting dimensions - Da(min.) | 115 mm | 4.528 inch |
| Mounting dimensions - Da(max.) | 121 mm | 4.764 inch |
| Mounting dimensions - Db(min.) | 124 mm | 4.882 inch |
| Temperature - T(min) | -30 °C |
| Temperature - T(max) | 120 °C |
| Units | Metric |
| Manufacturer Part Code | 32215A |
| Dynamic Radial Capacity - Cr | 169878 N | 38188 lbf |
| Static Radial Capacity - C0r | 226465 N | 50909 lbf |
| Calculation coefficient - e | 0.44 |
| Bearing Type | Single Row Tapered roller bearings, separable, adjusted or in pairs |
| Mounting dimensions - Ca(min.) | 4 mm | 0.157 inch |
| Mounting dimensions - Cb(min.) | 6 mm | 0.236 inch |
| Mounting dimensions - ra(max.) | 2 mm | 0.079 inch |
| Mounting dimensions - rb(max.) | 1.5 mm | 0.059 inch |
| Ring Material | GCr15SiMn |
| Interchange designation to ISO 355 | T4DC075 |
| Calculation coefficient - Y | 1.38 |
| Calculation coefficient - Y0 | 0.76 |
Single row taper roller bearings 32215-A, 1.93 kg Bearing mass, (75*130*33.25 mm), 75 mm d (Bore: diameter of the inner ring), 130 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 33.25 mm B (Width: nominal width of the bearing), 169878 N radial dynamic load capacity (Dyn. Cr), 226465 N radial static load capacity (Stat. Cor), 3190 r/min Maximum RPM (Speed in grease), 4945 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(32215-A, 75 = ID, 130 = OD, 33.25 = B, 1.93 kg) or according to different suppliers
- Price: Different brands, different quality, different 32215-A prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From FAG (Schaeffler) 32215-A Tapered Roller Bearing Full Assembly - 75 mm id x 130 mm OD x 31 mm Cone Width, 27 mm Cup Width;
Manufacturer Part Code: 32215-A;
Dimension Inside - id φ: 75 mm;
Dimension Cup Width (C): 27 mm;
Type Of Assembly: Cone & Cup;
Dimension Outside - OD Φ: 130 mm;
Dimension Cone Width (B): 31 mm;
Type of Closure: Open;
Material of Cage: Steel;
Operation Temp Range: -30 to +120 °C;
Radial (Dyn.load Cr): 170000 N;
Radial (Stat.load Cor): 227000 N;
Surface Coating: NO;
Limiting speed (1/min): 5400 RPM;
Bearing Series: 322;
Type Of Flange: Non-Flanged Cup;
Standards: DIN ISO 355/DIN 720;
Bearing Mass (M): 3.78 lbs
Manufacturer Part Code: 32215-A;
Dimension Inside - id φ: 75 mm;
Dimension Cup Width (C): 27 mm;
Type Of Assembly: Cone & Cup;
Dimension Outside - OD Φ: 130 mm;
Dimension Cone Width (B): 31 mm;
Type of Closure: Open;
Material of Cage: Steel;
Operation Temp Range: -30 to +120 °C;
Radial (Dyn.load Cr): 170000 N;
Radial (Stat.load Cor): 227000 N;
Surface Coating: NO;
Limiting speed (1/min): 5400 RPM;
Bearing Series: 322;
Type Of Flange: Non-Flanged Cup;
Standards: DIN ISO 355/DIN 720;
Bearing Mass (M): 3.78 lbs
The equivalents & Variants model of 32215-A Single row taper roller bearings:
T4DC075
