32252-DF-A500-550

Bore
260 mm
Outer
480 mm
Width
274 mm
Wight
215 kg

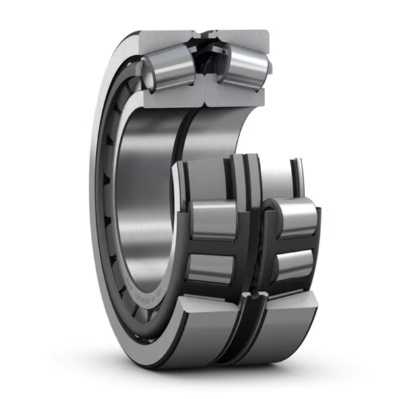

Tapered roller bearing Matched pairs
DB back-to-back design offers high rigidity and bidirectional load-bearing capacity, making it suitable for machine tool spindles; DF face-to-face design allows for self-alignment and compensation for installation errors, suitable for long spindles; DT series design doubles the unidirectional load-bearing capacity, suitable for heavy-duty applications.

Main technical Specifications

New Designations :
32252-DF-A500-550
Main demensions :
260 × 480 × 274
Bore Dia × Outside Dia × Width Dia (mm)
M :
215 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
260 mm
Inside diameter(I.D.)
OD :
480 mm
Outside diameter(O.D.)
T(B) :
274 mm
Thickness(W.D.)
Cr :
4549.752 kN
Radial dynamic load rating
C0r :
7598.526 kN
Radial static load rating
Grease rpm :
473 r/min
Reference speed
Oil rpm :
1459 r/min
Limiting speed
Category :
Tapered Roller Bearings

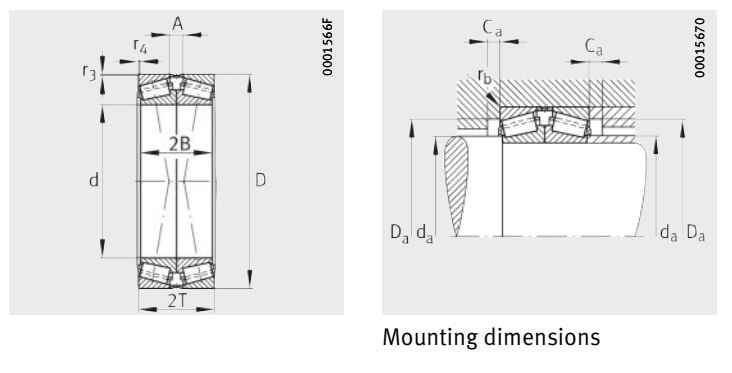

Detailed parameters and installation dimensions:

Part Number 32252-DF-A500-550
Units Metric
Series 32200 DF series (322..-XL-DF-A500-550)
Bearing Mass - m 215 kg | 473.989 lb
Dimension Inside - d φ 260 mm | 10.236 inch
Dimension Outside - D Φ 480 mm | 18.898 inch
Dimension Thickness - 2T 274 mm | 10.787 inch
Dimension Width - 2B 260 mm | 10.236 inch
Bore Type cylindrical bore
Accuracy class PN
Dimension - r3, r4(min.) 5 mm | 0.197 inch
Dimension - A 62 mm | 2.441 inch
Speed ratings (grease) - nB 473 min–1
Speed ratings (oil) - nG 1459 min–1
Mounting dimensions - da(max.) 306 mm | 12.047 inch
Mounting dimensions - Da(min.) 401 mm | 15.787 inch
Mounting dimensions - Da(max.) 458 mm | 18.031 inch
Mounting dimensions - Ca(min.) 14 mm | 0.551 inch
Mounting dimensions - rb(max.) 5 mm | 0.197 inch
Cage Stamping steel cage
Axial internal A500-550 = between 500 µm and 550 µm
Radial Dynamic Capacity - Cr 4549752 N | 1022784 lbf
Radial Static Capacity - C0r 7598526 N | 1708148 lbf
Ring Material GCr15SiMn
Matched bearing pairs DF = Duplex pairing(><)
Calculation coefficient - e 0.43
Calculation coefficient - Y1 1.57
Calculation coefficient - Y2 2.34
Calculation coefficient - Y0 1.53
Rows NO. Two
Bearing Type Tapered roller bearing Matched pairs
Radial Fatigue Capacity - Cur 859509 N | 193217 lbf
Temperature - T(min) -30 °C
Temperature - T(max) 200 °C
Manufacturer Part Code 32252-XL-DF-A500-550
Roller Material GCr15SiMn
Seal Open
Heat treatment Standard
Quality Class XL

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

32252-DF-A500-550 refers to a type of 32200 DF series (322..-XL-DF-A500-550) large Tapered roller bearing Matched pairs, with dimensions 260 mm (Bore) x 480 mm (OD) x 274 mm (Width), designed for Anti-tipping, fault-tolerant installation, ultra-high thrust, primarily used in Machine tools, gearboxes, heavy machinery, Its normal operating speed can reach: the grease speed ratings: 473 rpm, oil speed ratings: 1459 rpm, featuring Two (row) construction, Stamping steel cage retainer to ensure extended service life, advanced Open, PN (precision) for applications Precision machinery and heavy equipment. it's built to handle significant loads (dynamic radial: 4549752 N, static radial: 7598526 N, ), It weight approximately 215 kilogram.

  • Min. Order: 1 Piece/(32252-DF-A500-550, 260 = ID, 480 = OD, 274 = B, 215 kg) or according to different suppliers
  • Price: Different brands, different quality, different 32252-DF-A500-550 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Required bearing NACHI NN3024K

Dear sir, Please give me rates of bearing size NN3024K. .. Thanks & regards

✨What are the Benefits of choosing 32252-DF-A500-550 bearings?

  • DB (Back-to-Back): Provides high rigidity and anti-overturning properties, withstands bidirectional axial loads and tilting moments, suitable for cantilever shafts and machine tool spindles.
  • DF (Face-to-Face): Allows for some installation error compensation, withstands bidirectional axial loads, suitable for short shafts and easily deformable housings.
  • DT (Tandem): Significantly increases unidirectional axial load capacity, multiple sets of bearings jointly bear huge unidirectional thrust, suitable for heavy-duty thrust conditions.
  • The 32252-DF-A500-550 Tapered Roller Bearings adopts a Anti-tipping, fault-tolerant installation, ultra-high thrust design, Reference FAG technology, with dimensions an inner diameter of 260 mm, an outer diameter of 480 mm, a width of 274 mm, featuring Two (row) construction from 32200 DF series (322..-XL-DF-A500-550) (series), optimal operating temperature is generally -30 to 200 degrees Celsius. With grade precision of PN and ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:473 Limit Speed Ratings (oil) rpm:1459)for applications Precision machinery and heavy equipment

🏭 What are the applications of the 32252-DF-A500-550 bearing?

  • DB (Back-to-Back): Used in machine tool spindles, cantilever gearboxes, and worm gears. Provides extremely high rigidity, effectively resisting tilting moments and ensuring precise shaft positioning.
  • DF (Face-to-Face): Used in short-shaft pumps, automotive differentials, and applications with relatively weak bearing housing rigidity. Can compensate for certain installation errors or shaft thermal deformation, reducing additional loads.
  • DT (Tandem): Used in heavy-duty rolling mills, large wind turbines, and the thrust end of marine propellers. Multiple sets of bearings share the enormous unidirectional axial force, significantly increasing load-bearing capacity.
