3304-B-2Z-TVH
Main technical Specifications

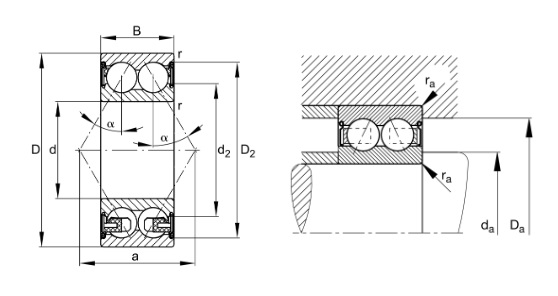

Detailed parameters and installation dimensions:
| Part Number | 3304-B-2Z-TVH |
| Design Type | B = Bearing without filling slot |
| Series | 33..-BD-XL-2Z-TVH |
| X-Life | XL |
| Limiting speed (oil) - nG | 10994 min–1 |
| Reference speed (grease) - nB | 10398 min–1 |
| Bearing Mass - m | 0.214 kg | 0.472 lb |
| Reference From | FAG 3304-B-2Z-TVH |
| Dimension Inside - d φ | 20 mm | 0.787 inch |
| Dimension Outside - D Φ | 52 mm | 2.047 inch |
| Dimension Width - B | 22.2 mm | 0.874 inch |
| Rows NO. | double |
| Accuracy class | P6 |
| Dimension - r(min.) | 1.1 mm | 0.043 inch |
| Seal | 2Z = Gap seals on both sides |
| Dimension - D1 | 43.98 mm | 1.731 inch |
| Dimension - D2 | 46.14 mm | 1.817 inch |
| Radial static Capacity - C0r | 15879 N | 3569 lbf |
| Bore Type | Z = Cylindrical Bore |
| Heat stabilization | SN = up to 120° |
| Dimension - d1 | 33.52 mm | 1.320 inch |
| Dimension - d2 | 31.94 mm | 1.257 inch |
| Dimension - a | 30.4 mm | 1.197 inch |
| Manufacturer Part Code | 3304-BD-2Z-TVH |
| Contact angle - α | 30 ° |
| Mounting dimensions - da(min.) | 27 mm | 1.063 inch |
| Mounting dimensions - Da(max.) | 45 mm | 1.772 inch |
| Bearing Type | Angular contact ball bearings Double row sealed |
| Mounting dimensions - ra(max.) | 1 mm | 0.039 inch |
| Temperature - T(min) | -20°C |
| Temperature - T(max) | 120°C |
| Ring Material | GCr15SiMn |
| Cage | TVH = Solid polyamide snap cage, ball-guided |
| Radial Dynamic Capacity - Cr | 24570 N | 5523 lbf |
| Ball Material | GCr15SiMn |
| RIC | CN |
| Radial Fatigue Capacity - Cur | 1088 N | 244 lbf |
| Equivalent | 3304-B-2Z-TVH,3304-BD-2Z-TVH |
| Lubricant | GA14 = Ball bearing grease, low noise |
The equivalents & Variants model of 3304-B-2Z-TVH Double row angular contact ball bearings:
3304-B-2Z-TVH,3304-BD-2Z-TVH
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
3304-B-2Z-TVH refers to a type of 33..-BD-XL-2Z-TVH Angular contact ball bearings Double row sealed, with dimensions 20 mm (Bore) x 52 mm (OD) x 22.2 mm (Width), designed for withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity, primarily used in Industrial pumps and compressors, Its normal operating speed can reach: the grease speed ratings: 10398 rpm, oil speed ratings: 10994 rpm, featuring double (row) construction, TVH = Solid polyamide snap cage, ball-guided retainer to ensure extended service life, advanced 2Z = Gap seals on both sides, P6 (precision) for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs. it's built to handle significant loads (dynamic radial: 24570 N, static radial: 15879 N, ), It weight approximately 0.214 kilogram.
- Min. Order: 1 Piece/(3304-B-2Z-TVH, 20 = ID, 52 = OD, 22.2 = B, 0.214 kg) or according to different suppliers
- Price: Different brands, different quality, different 3304-B-2Z-TVH prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
