3309

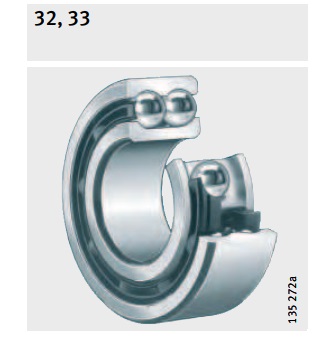

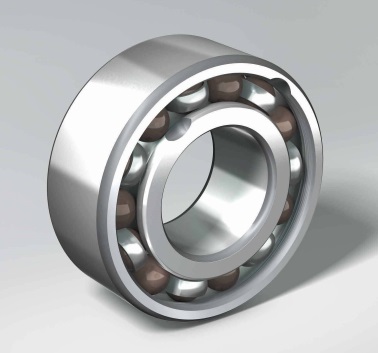

Double row angular contact ball bearings
1/2
Main technical Specifications
New Designations :
3309
Old Code :
3056309
Main demensions :
45 × 100 ×
39.7
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.4 kg
Weight
HS Code :
8482103000
Bearing customs code
ID :
45 mm
Inside diameter(I.D.)
OD :
100 mm
Outside diameter(O.D.)
T(B) :
39.7 mm
Thickness(W.D.)
Cr :
72.001 kN
Radial dynamic load rating
C0r :
78.155 kN
Radial static load rating
Category :
Double row angular contact ball bearings
Detailed parameters and installation dimensions:
| Part Number | 3309 |
| Accuracy class | P0 (ABEC 1) |
| Temperature - T(min) | -40 °C |
| Temperature - T(max) | 120 °C |
| Cage | Stamping steel cage |
| Bore | Cylindrical bore |
| Mounting dimensions - da min. | 53.5 mm | 2.1063 inch |
| Mounting fillet radius - ras max | 1.5 mm | 0.059 inch |
| Units | Metric |
| Row NO. | 2 |
| load | Radial |
| Radial Dynamic Capacity - Cr | 72001 N | 16185 lbf |
| Seal | Open |
| Radial Static Capacity - C0r | 78155 N | 17569 lbf |
| Dimension Inside - d φ | 45 mm | 1.7717 inch |
| Dimension Outside - D Φ | 100 mm | 3.9370 inch |
| Dimension Thickness - B | 39.7 mm | 1.5630 inch |
| Contact angle - α | 32 ° |
| Type | 33 |
| Temperature - T(min) | -40 °F |
| Temperature - T(max) | 250 °F |
| Ring Material | GCr15SiMn |
| Ball Material | GCr15SiMn |
| Manufacturer Part Code | 3309 |
| Fillet radius - r min | 1.5 mm | 0.0591 inch |
| Outside Ring Type | Straight |
| Bearing Type | Angular Contact Ball Bearing with filling slot, Open Type, Double Row |
| Mounting dimensions - Da max. | 91.5 mm | 3.602 inch |
| Internal clearance | CN |
| Series | 33 series (33..) |
| Dimension Point - a | 61 mm | 2.4016 inch |
The equivalents & Variants model of 3309 Double row angular contact ball bearings:
SKF 3309, STEYR 3309, NTN 3309, KOYO 3309, RHP 3309, TORRINGTON,FAFNIR 5309W, MRC 5309, SNR 3309B,
Double row angular contact ball bearings 3309, 1.4 kg Bearing mass, (45*100*39.7 mm), 45 mm d (Bore: diameter of the inner ring), 100 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 39.7 mm B (Width: nominal width of the bearing), 72001 N radial dynamic load capacity (Dyn. Cr), 78155 N radial static load capacity (Stat. Cor),
- Min. Order: 1 Piece/(3309, 45 = ID, 100 = OD, 39.7 = B, 1.4 kg) or according to different suppliers
- Price: There are multiple professional bearing manufacturers and suppliers in China that offer 3309. Sending an inquiry will get you quotes from multiple suppliers, allowing you to compare prices, quality, and service to find the most affordable option for 3309 bearing.
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From Rollway 3309, Bearing, Angular Contact, Ball, Double Row - 45 mm id x 100 mm OD x 39.7 mm B, Open, 30 ° Contact Angle, C0;
Manufacturer Part Code: 3309;
Dimension Inside - id φ: 45 mm;
Dimension Outside - OD Φ: 100 mm;
Dimension Width - B: 39.7 mm;
Contact Angle: 30 °;
Number of Rows & Fill Slot: Double-Row Non-Fill Slot;
Radial Internal Play: C0;
Type Of Bore: Straight Bore;
Type of Closure: Open;
Material of Bearing: 52100 Bearing Steel;
Radial (Dyn. load rating Cr): 71 kN;
Radial (Stat. load rating C0r): 57 kN;
Maximum Temperature: 302 °F;
Material of Cage: Pressed Steel;
Max Reference Speed RPM (Grease): 4500 rpm;
Max Limiting Speed RPM (Oil): 6000 rpm;
Surface Coating: NO;
Running Accuracy Class: P0;
Bearing Mass (m): 3.06 lbs;
Manufacturer Part Code: 3309;
Dimension Inside - id φ: 45 mm;
Dimension Outside - OD Φ: 100 mm;
Dimension Width - B: 39.7 mm;
Contact Angle: 30 °;
Number of Rows & Fill Slot: Double-Row Non-Fill Slot;
Radial Internal Play: C0;
Type Of Bore: Straight Bore;
Type of Closure: Open;
Material of Bearing: 52100 Bearing Steel;
Radial (Dyn. load rating Cr): 71 kN;
Radial (Stat. load rating C0r): 57 kN;
Maximum Temperature: 302 °F;
Material of Cage: Pressed Steel;
Max Reference Speed RPM (Grease): 4500 rpm;
Max Limiting Speed RPM (Oil): 6000 rpm;
Surface Coating: NO;
Running Accuracy Class: P0;
Bearing Mass (m): 3.06 lbs;
Data Transfering...
Wafangdian AA Bearing Trade Co.,Ltd
Email: [email protected] Tel: 86-159-06428604 2021-12-043309 Ball Bearing, 33 Series, Angular Contact, Cylindrical Bore, 45 mm = Bore (d), 100 mm = D, 39.7 mm = B, 32 °, 78500 N = Load Capacity; Brand: Interchangeable From NTN 3309 or OEM;
Material Of Bearing = High Hardness Bearing Steel;
Material Of Cage = Pressed Steel;
Seal Close Type = Open;
Max speed = 4000 rpm Reference speed 1/min (Grease), 5300 rpm Limiting speed 1/min (Oil);
Bearing Series = 33 Series;
Operating Temperature Range = -40 to 120 °C;
Bore Type = Cylindrical Bore;
Bore Dia. (d) = 45 mm;
Outside Dia. (D) = 100 mm;
Number of Rows = 2;
Width (B) = 39.7 mm;
Contact Angle (α) = 32 °;
Load Rating = 78500 N
tradebearings
Email: [email protected] Tel: 86-0578-18167086030 2019-05-04Hi give me urgent quote of bearing 3309NRS 24 Pieces
34 PIECE BALL BEARING, ANGULAR CONTACT, NUMBER OF ROWS 2, INTERNAL DIAMETER 45 MM, EXTERNAL DIAMETER 100 MM, WIDTH 39.7 MM, CONTACT ANGLE 30 °, TYPE OF CAGE PLATE, STEEL CAGE MATERIAL, TYPE OF SEAL WITHOUT SEAL, NORMAL PRECISION, C3 INTERNAL AXIAL CLEARANCE, BASIC DESIGN, APPLICABLE STANDARD ISO 15, ISO 5753, SKF 5309 AH / C3
NSK 3309 C3
