352217 Double row taper roller bearings dimensions
New Designations :
352217
Old Code :
97517E
Main demensions :
85 × 150 ×
86
Bore Dia × Outside Dia × Width Dia (mm)
M :
5.94 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
85 mm
Inside diameter(I.D.)
OD :
150 mm
Outside diameter(O.D.)
T(B) :
86 mm
Thickness(W.D.)
C :
390 kN
Radial dynamic load rating
C0 :
620 kN
Radial static load rating
Grease rpm :
2000 r/min
Reference speed
Oil rpm :
2700 r/min
Limiting speed
Category :
Double row taper roller bearings

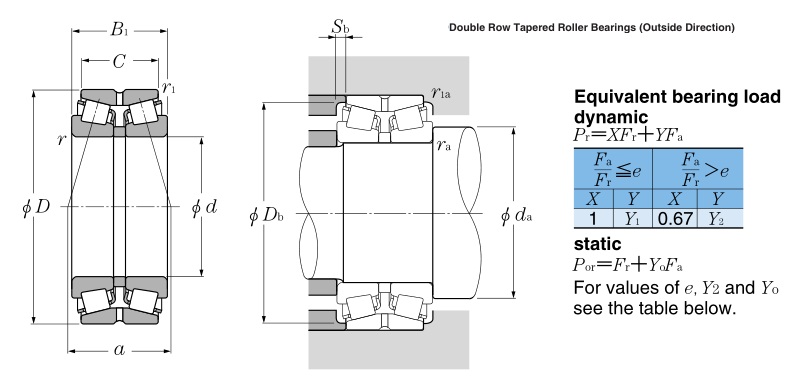

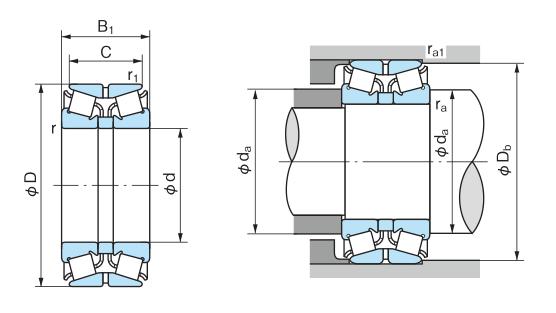

Detailed parameters and installation dimensions:
B: 36 mm, C: 69 mm, r(min): 2.5 mm, r1(min): 0.6 mm, e: 0.42 , Y1: 1.61 , Y2: 2.39 , Y0: 1.57
Double row taper roller bearings 352217, 5.94 kg Bearing mass, (85*150*86 mm), 85 mm d (Bore: diameter of the inner ring), 150 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 86 mm B (Width: nominal width of the bearing), 390000 N radial dynamic load capacity (Dyn. Cr), 620000 N radial static load capacity (Stat. Cor), 2000 r/min Maximum RPM (Speed in grease), 2700 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(352217, 85 = ID, 150 = OD, 86 = B, 5.94 kg) or according to different suppliers
- Price: Different brands, different quality, different 352217 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
