360.20.0800.000 Typ 90/1000.20 Slewing ring bearings dimensions
New Designations :
360.20.0800.000 Typ 90/1000.20
Main demensions :
854 × 1008 ×
90
Bore Dia × Outside Dia × Width Dia (mm)
M :
64 kg
Weight
ID :
854 mm
Inside diameter(I.D.)
OD :
1008 mm
Outside diameter(O.D.)
T(B) :
90 mm
Thickness(W.D.)
Category :
Slewing ring bearings

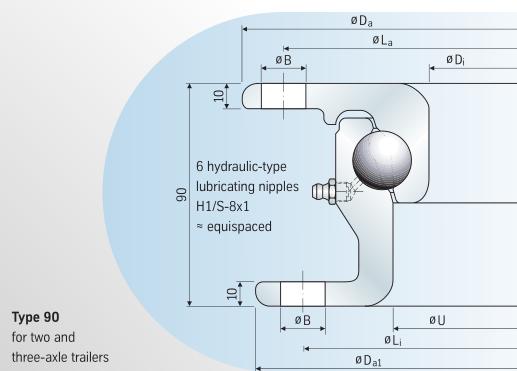

Detailed parameters and installation dimensions:
DL: 894 mm, Di: 854 mm, Da: 1008 mm, H: 90 mm, La: 974 mm, Li: 960 mm, B: – mm, n1: 6 mm, Da1: 1000 mm, O: – mm, U: 885 mm, d: 20 mm, Permissible axial load*(2 axles): 90 KN, Permissible axial load*(more than 2 axles): 80 KN, axially: 1.0 mm, radially: 0.7 mm
Slewing ring bearings 360.20.0800.000 Typ 90/1000.20, 64 kg Bearing mass, (854*1008*90 mm), 854 mm d (Bore: diameter of the inner ring), 1008 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 90 mm B (Width: nominal width of the bearing),
- Min. Order: 1 Piece/(360.20.0800.000 Typ 90/1000.20, 854 = ID, 1008 = OD, 90 = B, 64 kg) or according to different suppliers
- Price: Different brands, different quality, different 360.20.0800.000 Typ 90/1000.20 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
