4T-H715348/H715311
Tapered Roller Bearings
New Designations :
4T-H715348/H715311

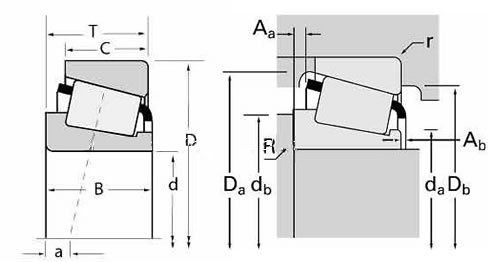

Main demensions :
77.788 × 136.525 ×
46.038
Bore Dia × Outside Dia × Width Dia (mm)
M :
2.84 kg
Weight
ID :
77.788 mm
Inside diameter(I.D.)
OD :
136.525 mm
Outside diameter(O.D.)
T(B) :
46.038 mm
Thickness(W.D.)
C :
224 kN
Radial dynamic load rating
C0 :
355 kN
Radial static load rating
Grease rpm :
2600 r/min
Reference speed
Oil rpm :
3500 r/min
Limiting speed
Interchangeable :
NTN
Category :
Tapered Roller Bearings
Tapered Roller Bearings 4T-H715348/H715311, 2.84 kg Bearing mass, (77.788*136.525*46.038 mm), 77.788 mm d (Bore: diameter of the inner ring), 136.525 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 46.038 mm B (Width: nominal width of the bearing), 224000 N radial dynamic load capacity (Dyn. Cr), 355000 N radial static load capacity (Stat. Cor), 2600 r/min Maximum RPM (Speed in grease), 3500 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(4T-H715348/H715311, 77.788 = ID, 136.525 = OD, 46.038 = B, 2.84 kg) or according to different suppliers
- Price: Different brands, different quality, different 4T-H715348/H715311 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
