51124

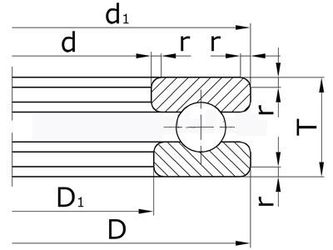

Detailed parameters and installation dimensions:
| Part Number | 51124 |
| Cage | JP = Stamping steel cage |
| Rows NO. | One |
| Dynamic Axial Capacity - Ca | 89508 N | 20121 lbf |
| Static Axial Capacity - C0a | 309650 N | 69609 lbf |
| Series | 511 series (511) |
| Seal | Open |
| Dimension chamfer - r(min.) | 1 mm | 0.0394 inch |
| Fatigue Axial Capacity - Cua | 13877 N | 3119 lbf |
| Bearing Mass - m | 1.54 kg | 3.3951 lb |
| Dimension Inside - d φ | 120 mm | 4.7244 inch |
| Dimension Outside - D Φ | 155 mm | 6.1024 inch |
| Units | Metric |
| Ring Material | GCr15SiMn |
| Dimension Thickness - T | 25 mm | 0.9843 inch |
| Dimension - D1 | 122 mm | 4.8031 inch |
| Dimension - d1 | 155 mm | 6.1024 inch |
| Temperature - T(min) | -30 °C |
| Temperature - T(max) | 150 °C |
| Speed ratings (grease) - nB | 2524 min–1 |
| Speed ratings (oil) - nG | 2937 min–1 |
| Accuracy class | PN (ABEC-1) |
| Bore Type | Cylindrical bore |

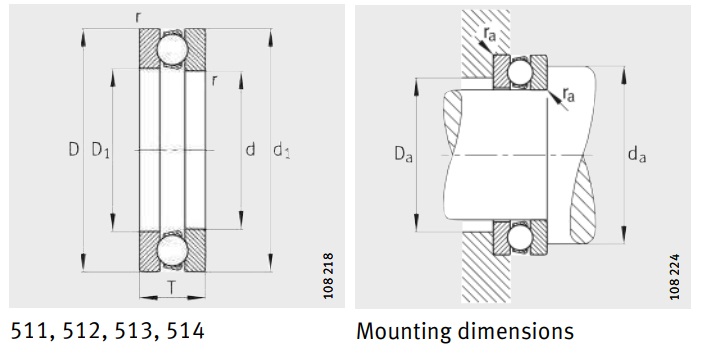

| Mounting dimensions - da(min.) | 141 mm | 5.5512 inch |
| Mounting dimensions - Da(max.) | 134 mm | 5.2756 inch |
| Bearing Type | Axial deep groove ball bearings, Single direction |
| Minimum load coefficient - A | 0.48 |
| Ball Material | GCr15SiMn |
| Mounting dimensions - ra(max.) | 1 mm | 0.0394 inch |
NOTE: All other trademarks are the property of their respective owners，used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
51124 refers to a specialized type of 511 series (511) Axial deep groove ball bearings, Single direction, with dimensions 120 mm (Bore) x 155 mm (OD) x 25 mm (Width), designed for Pure axial load, primarily used in Home appliances, general machinery, the grease speed ratings: 2524 rpm , oil speed ratings: 2937 rpm featuring One (row) construction JP = Stamping steel cage retainer, advanced Open, PN (ABEC-1) (precision) for applications Various medium- and low-speed mechanical equipment that bears moderate axial loads. the Basic load can reach ( dynamic axial:89508, static axial:309650), It weighs approximately 1.54 kilogram.
Single direction thrust ball bearings (51124) features:
Simple structure and low cost: Composed of simple washer-shaped raceways (shaft race, housing race) and ball-cage assemblies, the manufacturing process is relatively mature and the cost is low.
High axial load capacity (in compact size): Using point-contact steel balls, although the rigidity is not as high as line-contact rollers, it can provide a high unidirectional axial load capacity within a small installation space.
Low friction and good high-speed performance: Low rolling friction, especially under high-speed, light-load pure axial conditions, resulting in smooth operation and relatively low heat generation.
Easy installation: The structure is separable; the shaft race, housing race, and ball-cage assemblies can be installed independently. Installation of unidirectional thrust ball bearings is particularly simple.
Multiple types to meet different needs:
Single-directional thrust ball bearings: Can only withstand axial force in one direction.
Double-direction thrust ball bearings: Can withstand axial force in two directions, consisting of one shaft race, two housing races, and two sets of ball-cage assemblies.
Thrust ball bearings with self-aligning races: The races are spherical and can automatically align with the spherical supports of the bearing housing to compensate for minor installation misalignment.
The 51124 bearings adopts a Pure axial load design, featuring One (row) construction from 511 series (511) (series), optimal operating temperature is generally -30 to 150 degrees Celsius. With grade precision of PN (ABEC-1) and the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:2524 Limit Speed Ratings (oil) rpm:2937).
Single direction thrust ball bearings (51124) application:
Automotive Industry: Clutch release mechanisms, steering systems, transmissions.
General Industrial Machinery: Vertical water pumps, vertical motors, gearboxes, crane hooks.
Machine Tools and Equipment: Machine tool spindles, auxiliary positioning for slewing bearings.
Household Appliances and Everyday Equipment: Household washing machines, electric drills, mixers.
Agricultural and Construction Machinery: In various drive shafts and rotating components.
oil and gas drilling rigs
- Min. Order: 1 Piece/(51124, 120 = ID, 155 = OD, 25 = B, 1.54 kg) or according to different suppliers
- Price: Different brands, different quality, different 51124 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Manufacturer Part Code: 51124;
Dimension Inside - id φ: 120 mm;
Dimension Outside - OD Φ: 155 mm;
Dimension Width - B: 25 mm;
Thrust Bearing Type: Single-Direction;
Outside Diameter Design: Straight;
Separable or Banded: Separable;
Running Accuracy Class: ISO Class 0 (DIN P0);
Stat. Load Rating: 310000 N;
Dyn. Load Rating: 89000 N;
Operation Temp Rating: -40 to 120 ºC;
Limiting speed Max (1/min): 2200 rpm;
Material of Bearing: High Hardness Bearing Steel;
Material of Cage: Steel;
Fillet Radius(ra): 1 mm;
Bearing Mass (m): 2.66 lbs;
The equivalents & Variants model of 51124 Single direction thrust ball bearings:
NSK 51124, KOYO 51124, NACHI 51124, FAG 51124, SKF 51124, STEYR 51124, SNR 51124, NTN 51124,
