5308A-2RS1/W64

Bore
40 mm
Outer
90 mm
Width
36 mm
Wight
0.955 kg
Double row angular contact ball bearings
Combined axial and radial loads in both directions, with a compact structure and high rigidity, it is widely used in general machinery such as motors, pumps, compressors, and industrial gearboxes.

Main technical Specifications

New Designations :
5308A-2RS1/W64
Main demensions :
40 × 90 × 36
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.955 kg
Weight
HS Code :
8482103000
Bearing customs code
ID :
40 mm
Inside diameter(I.D.)
OD :
90 mm
Outside diameter(O.D.)
T(B) :
36 mm
Thickness(W.D.)
Category :
Double row angular contact ball bearings

Detailed parameters and installation dimensions:

Part Number: 5308A-2RS1/W64
Technical description (A-2RS1/W64): A=Double Row Angular Contact Ball Bearing Without Filling Slots. 2RS1=Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing. W64=(Segment Lubrication, Code 1)=Solid Oil Filling.
The equivalents designations: 7316571542669
Bearing Type: Angular Contact Ball Bearings, Double Row
Bearing Size(metric): Inner dia. (d): 40 mm X Outer dia. (D): 90 mm X Width (B): 36,5 mm or Size: 40 mm * 90 mm * 36,5 mm
Original Equipment Manufacture(OEM NO.): 5308A-2RS1/W64
Bore: C (Cylindrical Bore)
Seals Type: 2RS (Rubber Seal on Both Sides)
Cage Design: S (Steel or Standard Cage)
Radial internal clearance:Cn Normal Internal
Precision Rating: Standard class precision
Type of lubrication: Filled Solid Grease
Thermal Stability: No Thermal Stability - Temperatures up to 120°C
Split Innering / Outerring: Standard

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

5308A-2RS1/W64 refers to a type of Double row angular contact ball bearings, with dimensions 40 mm (Bore) x 90 mm (OD) x 36 mm (Width), designed for withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity, primarily used in Industrial pumps and compressors, for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs. It weight approximately 0.955 kilogram.

  • Min. Order: 1 Piece/(5308A-2RS1/W64, 40 = ID, 90 = OD, 36 = B, 0.955 kg) or according to different suppliers
  • Price: Different brands, different quality, different 5308A-2RS1/W64 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Budget request KOYO 6828

Hi!, I need a budget about the product KOYO 6828 for ten (10) units please.

✨What are the Benefits of choosing 5308A-2RS1/W64 bearings?

  • Bidirectional Load Capacity: A single bearing can simultaneously withstand bidirectional axial and radial loads, eliminating the need for paired installation.
  • High Rigidity and Anti-Overturning: A large contact angle design effectively resists tilting moments, ensuring shaft system stability.
  • Compact Structure: Occupies minimal axial space, simplifying housing design and facilitating installation.
  • The 5308A-2RS1/W64 Double row angular contact ball bearings adopts a withstand radial and bidirectional axial loads simultaneously, has a compact structure, and good rigidity design, with dimensions an inner diameter of 40 mm, an outer diameter of 90 mm, a width of 36 mm, ensure the equipment operates more stably for applications Various industrial applications requiring moderate loads and speeds that can withstand bidirectional axial forces and have simplified designs.

🏭 What are the applications of the 5308A-2RS1/W64 bearing?

  • Gearboxes/Reducers: Used in industrial gearboxes and planetary reducers. Withstands bidirectional composite loads, provides high rigidity support, and ensures smooth transmission.
  • Pumps/Compressors: Used in centrifugal pumps, screw pumps, and refrigeration compressors. Precise axial positioning, compact structure, and space-saving installation.
  • Agitators/Worm Gear Drives: Used in agitators, worm gear reducers, and machine tool indexing heads. Effectively resists tilting moments; a single bearing solves bidirectional axial positioning.

Leave A Comment

Other models the same size : 40x90x36

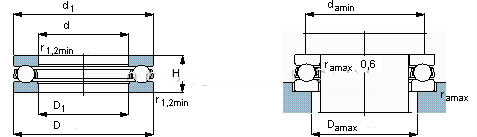

2500

Thrust Bearings   40 * 90 * 36 Grease rpm: 1700, Oil rpm: 51408, M: 1.08

51408/P6

Single direction thrust ball bearings E8408  40 * 90 * 36

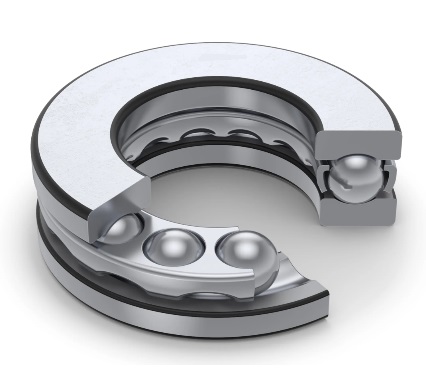

51408/P5

Single direction thrust ball bearings D8408  40 * 90 * 36 Grease rpm: 1688, Oil rpm: 2579, M: 1.1

51408

Single direction thrust ball bearings 8408  40 * 90 * 36 Grease rpm: 7542, Oil rpm: 3353, M: 1.03

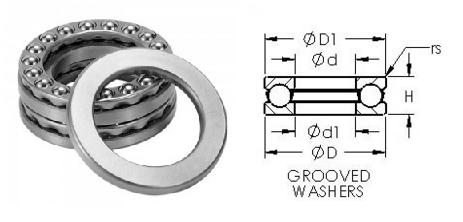

51408M
