6004

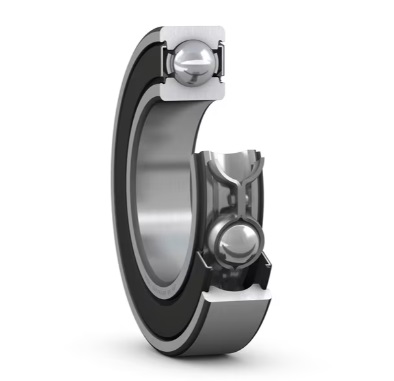

Single row deep groove ball bearings
New Designations :
6004
Old Code :
104
Main demensions :
20 × 42 ×
12
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.0624 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
20 mm
Inside diameter(I.D.)
OD :
42 mm
Outside diameter(O.D.)
T(B) :
12 mm
Thickness(W.D.)
C :
9.945 kN
Radial dynamic load rating
C0 :
4.948 kN
Radial static load rating
Grease rpm :
18173 r/min
Reference speed
Oil rpm :
24763 r/min
Limiting speed
Category :
Single row deep groove ball bearings
Detailed parameters and installation dimensions:
| Part Number | 6004 |
| Series | 60 |
| Bearing Mass - m | 0.0624 kg | 0.138 lb |
| Reference speed - nB | 18173 min–1 |
| Limiting speed - nG | 24763 min–1 |
| Reference From | FAG 6004 |
| Dimension Inside - d φ (mm) | 20 |
| Dimension Outside - D Φ (mm) | 42 |
| Dimension Width - B (mm) | 12 |
| Bore Type | Z = Cylindrical bore |
| Bearing Type | Deep groove ball bearings open design, self-retaining |
| Dimension - D2 | 37.42 mm | 1.473 inch |
| Dimension - r(min.) | 0.6 mm | 0.024 inch |
| Dimension - D1 | 35.47 mm | 1.396 inch |
| Dimension - d1 | 26.6 mm | 1.047 inch |
| Rows NO. | one |
| Mounting dimensions - da(min.) | 23.2 mm | 0.913 inch |
| Seal | Open |
| Mounting dimensions - Da(max.) | 38.8 mm | 1.528 inch |
| Mounting dimensions - ra(max.) | 0.6 mm | 0.024 inch |
| Cage | JN = Stamping steel cage |
| RIC | CN |
| Manufacturer Part Code | 6004 |
| Radial Dynamic Capacity - Cr | 9945 N | 2235 lbf |
| Radial static Capacity - C0r | 4948 N | 1112 lbf |
| Heat stabilization | SN = (up to 120 °C) |
| Lubricant | Without |
| Dimension Inside - d φ (inch) | 0.787 |
| Dimension Outside - D Φ (inch) | 1.654 |
| Dimension Width - B (inch) | 0.472 |
| Temperature - T(min) | -30°C |
| Temperature - T(max) | 120°C |
| Radial Fatigue Capacity - Cur | 269 N | 60 lbf |
| Coefficient - F0 | 13.8 |
| Ring Material | GCr15SiMn |
Single row deep groove ball bearings 6004, 0.0624 kg Bearing mass, (20*42*12 mm), 20 mm d (Bore: diameter of the inner ring), 42 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 12 mm B (Width: nominal width of the bearing), 9945 N radial dynamic load capacity (Dyn. Cr), 4948 N radial static load capacity (Stat. Cor), 18173 r/min Maximum RPM (Speed in grease), 24763 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(6004, 20 = ID, 42 = OD, 12 = B, 0.0624 kg) or according to different suppliers
- Price: Different brands, different quality, different 6004 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From Timken 6004, Radial Bearing, Deep Groove Ball, Straight Bore, 20 mm id x 42 mm OD x 12 mm B, Open, C0 Clearance;
Manufacturer Part Code: 6004;
Dimension Inside - id φ: 20 mm;
Dimension Outside - OD Φ: 42 mm;
Dimension Width - B: 12 mm;
Type Of Bore: Straight Bore;
Type of Closure: Open;
Snap Ring Included: No;
Radial Internal Play: C0;
Running Accuracy Class: ABEC 1;
Material of Cage: Steel;
Manufacturer Part Code: 6004;
Dimension Inside - id φ: 20 mm;
Dimension Outside - OD Φ: 42 mm;
Dimension Width - B: 12 mm;
Type Of Bore: Straight Bore;
Type of Closure: Open;
Snap Ring Included: No;
Radial Internal Play: C0;
Running Accuracy Class: ABEC 1;
Material of Cage: Steel;
The equivalents & Variants model of 6004 Single row deep groove ball bearings:
RHP 6004 , TORRINGTON,FAFNIR 9104K , STEYR 6004 , NSK 6004 , NACHI 6004 , NTN 6004 , KOYO 6004 , FAG 6004 , SKF 6004 , MRC 104KS , SNR 6004 ,
