6018-2Z Single row deep groove ball bearings dimensions
New Designations :
6018-2Z
Old Code :
80118
Main demensions :
90 × 140 ×
24
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.19 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
90 mm
Inside diameter(I.D.)
OD :
140 mm
Outside diameter(O.D.)
T(B) :
24 mm
Thickness(W.D.)
C :
60.138 kN
Radial dynamic load rating
C0 :
49.879 kN
Radial static load rating
Grease rpm :
9996 r/min
Reference speed
Oil rpm :
4984 r/min
Limiting speed
Category :
Single row deep groove ball bearings

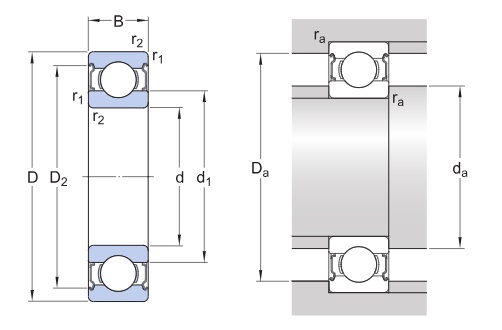

Detailed parameters and installation dimensions:
| Part Number | 6018-2Z |
| Cage | Stamped steel cage, ball centred |
| Rows NO. | One |
| Series | 60..-2Z |
| Principal Dimensions Inside - d φ (mm) | 90 |
| Principal Dimensions Outside - D Φ (mm) | 140 |
| Principal Dimensions Width - B (mm) | 24 |
| Minimum load coefficient - kr | 0.025 |
| Calculation coefficient - f0 | 15.6 |
| Dynamic Radial Capacity - Cr | 60138 N | 13519 lbf |
| Static Radial Capacity - C0r | 49879 N | 11212 lbf |
| Ring Material | GCr15SiMn |
| Dimension - d1 | 105.95 mm | 4.171 inch |
| Bore Type | Cylindrical bore |
| Seal | 2Z = Shield on both sides |
| Dimension - D2 | 128.3 mm | 5.051 inch |
| Speed ratings (grease) - nB | 9996 r/min |
| Lubricant | Grease |
| Dimension Chamfer - r1,r2 (min.) | 1.5 mm | 0.059 inch |
| Fillet dimensions - ra(max.) | 1.5 mm | 0.059 inch |
| Speed ratings (oil) - nG | 4984 r/min |
| Fatigue load limit - Pu | 1954 N | 439 lbf |
| Internal clearance | CN |
| Outer ring feature | No |
| Principal Dimensions Inside - d φ (inch) | 3.543 |
| Principal Dimensions Outside - D Φ (inch) | 5.512 |
| Principal Dimensions Width - B (inch) | 0.945 |
| Heat stabilized | 120 °C (250 °F) |
| Ball Material | GCr15SiMn |
| Bearing type | Capped single row deep groove ball bearings |
| Bearing Mass - m | 1.19 kg | 2.623 lb |
| Manufacturer Part Code | 6018.2Z |
| Abutment dimensions - da(min.) | 97 mm | 3.819 inch |
| Tolerance class | PN |
| Abutment dimensions - da(max.) | 105.9 mm | 4.169 inch |
| Abutment dimensions - Da(max.) | 133 mm | 5.236 inch |
| Radial run-out | PN |
| Dimensional tolerances | P6 |
Single row deep groove ball bearings 6018-2Z, 1.19 kg Bearing mass, (90*140*24 mm), 90 mm d (Bore: diameter of the inner ring), 140 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 24 mm B (Width: nominal width of the bearing), 60138 N radial dynamic load capacity (Dyn. Cr), 49879 N radial static load capacity (Stat. Cor), 9996 r/min Maximum RPM (Speed in grease), 4984 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(6018-2Z, 90 = ID, 140 = OD, 24 = B, 1.19 kg) or according to different suppliers
- Price: Different brands, different quality, different 6018-2Z prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From FAG (Schaeffler) 6018-2Z Bearing, Deep Groove Ball, Radial, Cylindrical Bore, 90 mm id x 140 mm OD x 24 mm B;
Manufacturer Part Code: 6018-2Z;
Dimension Inside - id φ: 90 mm;
Dimension Outside - OD Φ: 140 mm;
Dimension Width - B: 24 mm;
Type Of Bore: Cylindrical Bore;
Type of Seal: Two Sealed;
Number of Rows: One Rows;
Radial Internal Play: C0;
Operation Temp Range: -30 to +120 °C;
Radial (Dyn.load Cr): 62000 N;
Radial (Stat.load Cor): 49500 N;
Running Accuracy Class: Not Rated;
Surface Coating: NO;
Material of Cage: Steel;
Width Of Outer Ring: 24 mm;
Fillet Radius(ra): 1.5 mm;
Limiting speed (1/min): 5600 RPM;
Standards: DIN 625-1;
Bearing Series: 60;
Bearing Mass (M): 2.68 lbs
Manufacturer Part Code: 6018-2Z;
Dimension Inside - id φ: 90 mm;
Dimension Outside - OD Φ: 140 mm;
Dimension Width - B: 24 mm;
Type Of Bore: Cylindrical Bore;
Type of Seal: Two Sealed;
Number of Rows: One Rows;
Radial Internal Play: C0;
Operation Temp Range: -30 to +120 °C;
Radial (Dyn.load Cr): 62000 N;
Radial (Stat.load Cor): 49500 N;
Running Accuracy Class: Not Rated;
Surface Coating: NO;
Material of Cage: Steel;
Width Of Outer Ring: 24 mm;
Fillet Radius(ra): 1.5 mm;
Limiting speed (1/min): 5600 RPM;
Standards: DIN 625-1;
Bearing Series: 60;
Bearing Mass (M): 2.68 lbs
The equivalents & Variants model of 6018-2Z Single row deep groove ball bearings:
NACHI 6018ZZ , NSK 6018ZZ , KOYO 6018ZZ , NTN 6018ZZ , FAG 6018.2ZR , SKF 6018-2Z , SNR 6018ZZ , MRC 118KSFF , STEYR 6018-2Z ,
Data Transfering...
Wafangdian AA Bearing Trade Co.,Ltd
Email: sales@spainbearing.com Tel: 86-159-06428604 2021-11-216018-2Z Deep Groove Ball Bearing, 90 mm = Bore (d), 140 mm = D, 24 mm = B, 62000 N = Load Capacity; Brand: Interchangeable From FAG 6018-2Z or OEM;
Material Of Bearing = Steel;
Seal Close Type = Open;
Material Of Cage = Sheet Steel;
Max speed = 5600 rpm;
Bearing Series = Extra Light Series;
Operating Temperature Range = -30 to 150 °C;
Bore Dia. (d) = 90 mm;
Outside Dia. (D) = 140 mm;
Number of Rows = 1;
Width (B) = 24 mm;
Load Rating = 62000 N
