60/22

Bore
22 mm
Outer
44 mm
Width
12 mm
Wight
0.074 kg
Deep groove ball bearings, single row, Open
With a simple and versatile structure, it can withstand combined radial and bidirectional axial loads, has low friction, and is suitable for high-speed operation. It is widely used in motors, household appliances, and various general-purpose machinery.

Main technical Specifications

New Designations :
60/22
Old Code :
1/22
Main demensions :
22 × 44 × 12
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.074 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
22 mm
Inside diameter(I.D.)
OD :
44 mm
Outside diameter(O.D.)
T(B) :
12 mm
Thickness(W.D.)
Cr :
10.08 kN
Radial dynamic load rating
C0r :
4.931 kN
Radial static load rating
Grease rpm :
16968 r/min
Reference speed
Oil rpm :
19891 r/min
Limiting speed
Category :
Deep Groove Ball Bearings

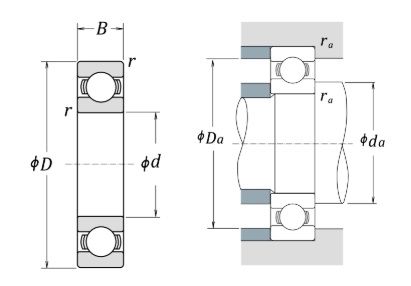

Detailed parameters and installation dimensions:

Part Number 60/22
Seal Open
Series 6000 metric, extra light series (60..)
Dimension Chamfer - r min 0.6 mm | 0.0236 inch
Radial clearance CN
Radial Dynamic Capacity - Cr 10080 N | 2265 lbf
Radial Static Capacity - C0r 4931 N | 1108 lbf
Bore Cylindrical
Units Metric
Speed ratings (grease) - nB 16968 min–1
Speed ratings (oil) - nG 19891 min–1
Equivalent 60/22
Load radial
Rows NO. One
Number of Balls - z 9
Ball Diameter - Dw 6.35 mm | 0.2500 inch
Abutment Dimensions Shaft - da min 26 mm | 1.0236 inch
Abutment Dimensions Shaft - da max 26.5 mm | 1.0433 inch
Abutment Dimensions Housing - Da max 40 mm | 1.5748 inch
Cage Pressed Steel Cages
Temperature - T(min) -10 °C
Temperature - T(max) 110 °C
Interchangeable NSK 60/22
Dimension Inside - d φ 22 mm | 0.8661 inch
Dimension Outside - D Φ 44 mm | 1.7323 inch
Dimension Width - B 12 mm | 0.4724 inch
Tolerance class P0 (ABEC-1)
Ball Material GCr15SiMn
Fillet Radius - ra max 0.6 mm | 0.0236 inch
Factor - fo 14
Bearing Type Deep groove ball bearings, single row, Open
Bearing Mass - m 0.074 kg | 0.1631 lb
Manufacturer Part Code 60/22
Ring Material GCr15SiMn

The equivalents & Variants model of 60/22 Deep Groove Ball Bearings:

KOYO 60/22 , SNR 600/22 , NTN 60/22 , NSK 60/22 ,

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

60/22 refers to a type of 6000 metric, extra light series (60..) Deep groove ball bearings, single row, Open, with dimensions 22 mm (Bore) x 44 mm (OD) x 12 mm (Width), designed for Simple structure and highly versatile, primarily used in Electric motors, automobiles, general equipment, Its normal operating speed can reach: the grease speed ratings: 16968 rpm, oil speed ratings: 19891 rpm, featuring One (row) construction, Pressed Steel Cages retainer to ensure extended service life, advanced Open, P0 (ABEC-1) (precision) for applications The vast majority of motors, transmission systems, and general-purpose machinery (general-purpose, economical, and efficient).. it's built to handle significant loads (dynamic radial: 10080 N, static radial: 4931 N, ), It weight approximately 0.074 kilogram.

  • Min. Order: 1 Piece/(60/22, 22 = ID, 44 = OD, 12 = B, 0.074 kg) or according to different suppliers
  • Price: Different brands, different quality, different 60/22 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Reference From NTN 60/22, Radial Bearing, Deep Groove Ball, Straight Bore, 22 mm id x 44 mm OD x 12 mm B, Open;
Manufacturer Part Code: 60/22;
Dimension Inside - id φ: 22 mm;
Dimension Outside - OD Φ: 44 mm;
Dimension Width - B: 12 mm;
Type Of Bore: Straight Bore;
Type of Closure: Open;
Number of Rows: One Rows;
Snap Ring Included: No;
Radial Internal Play: CN;
Operation Temp Rating: -40 to 120 ºC;
Dyn. Load Rating: 9400 N;
Stat. Load Rating: 5050 N;
Running Accuracy Class: Class 0;
Surface Coating: NO;
Material of Bearing: High Hardness Bearing Steel;
Material of Cage: Steel;
Width Of Inner Ring: 12 mm;
Width Of Outer Ring: 12 mm;
Max Reference Speed RPM (Grease): 17000 rpm;
Max Limiting Speed RPM (Oil): 20000 rpm;
Fillet Radius(ra): 0.6 mm;
Limiting speed Max (1/min): 20000 RPM;
Bearing Series: 60;
Bearing Mass (m): 0.17 lbs;

Pls. offer for 1219 Self-Aligning Ball Bearing, SB7512064 Joint Bearings

Dear Sales Manager, Pls. offer for new inquiry:. Inquiry No.2599-1206 IKO NSK Item No. Bearing No Full & exact bearing No. Brand Quantity (pcs) Unit price ( USD/pc) Total amount (USD) Origin 1 1219 IKO/NSK 1 0 2 SB7512064

✨What are the Benefits of choosing 60/22 bearings?

  • Versatile Load Bearing: Capable of simultaneously withstanding radial and bidirectional axial loads, suitable for high-speed and ultra-high-speed applications.
  • Low Friction and Long Life: Optimized contact between the raceway and steel balls results in an extremely low coefficient of friction, minimal heat generation, and a long service life.
  • High Speed ​​Capability: Due to high operational precision, it allows for very high maximum speeds.
  • Low Maintenance Costs: Can be designed with dust covers or sealing rings for lifetime lubrication, requiring no routine maintenance.
  • Rigid and Quiet Operation: Provides a certain level of rotational stiffness while maintaining low operating noise and vibration levels.
  • The 60/22 Deep Groove Ball Bearings adopts a Simple structure and highly versatile design, Reference NSK technology, with dimensions an inner diameter of 22 mm, an outer diameter of 44 mm, a width of 12 mm, featuring One (row) construction from 6000 metric, extra light series (60..) (series), optimal operating temperature is generally -10 to 110 degrees Celsius. With grade precision of P0 (ABEC-1) and a clearance of CN, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:16968 Limit Speed Ratings (oil) rpm:19891)for applications The vast majority of motors, transmission systems, and general-purpose machinery (general-purpose, economical, and efficient).

🏭 What are the applications of the 60/22 bearing?

  • Motors/Electrical Appliances: Used in motors and home appliances. Ensures smooth high-speed operation and low noise.
  • Automotive Industry: Used in generators and gearboxes. Suitable for medium loads and offers high reliability.
  • General Machinery: Used in pumps, fans, and speed reducers. Low friction, maintenance-free, and long service life.
