6308-2RS1/C3 Single row deep groove ball bearings dimensions
New Designations :
6308-2RS1/C3
Main demensions :
40 × 90 ×
23
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.63 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
40 mm
Inside diameter(I.D.)
OD :
90 mm
Outside diameter(O.D.)
T(B) :
23 mm
Thickness(W.D.)
C :
42.097 kN
Radial dynamic load rating
C0 :
23.279 kN
Radial static load rating
Oil rpm :
4951 r/min
Limiting speed
Category :
Single row deep groove ball bearings

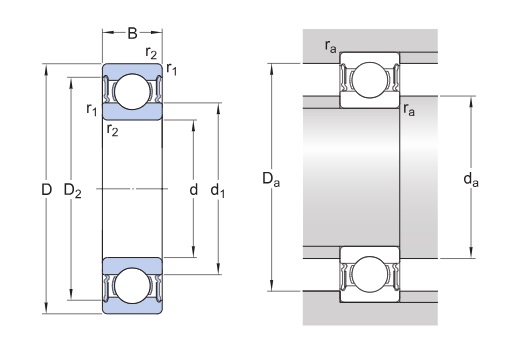

Detailed parameters and installation dimensions:
| Part Number | 6308-2RS1/C3 |
| Cage | Stamped steel cage, ball centred |
| Rows NO. | One |
| Series | 63..-2RS1 |
| Principal Dimensions Inside - d φ (mm) | 40 |
| Principal Dimensions Outside - D Φ (mm) | 90 |
| Principal Dimensions Width - B (mm) | 23 |
| Minimum load coefficient - kr | 0.03 |
| Calculation coefficient - f0 | 13.2 |
| Dynamic Radial Capacity - Cr | 42097 N | 9463 lbf |
| Static Radial Capacity - C0r | 23279 N | 5233 lbf |
| Ring Material | GCr15SiMn |
| Dimension - d1 | 56.11 mm | 2.209 inch |
| Bore Type | Cylindrical bore |
| Seal | 2RS1 = Contact seal, NBR, on both sides |
| Dimension - D2 | 77.7 mm | 3.059 inch |
| Lubricant | Grease |
| Dimension Chamfer - r1,r2 (min.) | 1.5 mm | 0.059 inch |
| Fillet dimensions - ra(max.) | 1.5 mm | 0.059 inch |
| Speed ratings (oil) - nG | 4951 r/min |
| Fatigue load limit - Pu | 1006 N | 226 lbf |
| Internal clearance | C3 |
| Outer ring feature | No |
| Principal Dimensions Inside - d φ (inch) | 1.575 |
| Principal Dimensions Outside - D Φ (inch) | 3.543 |
| Principal Dimensions Width - B (inch) | 0.906 |
| Heat stabilized | 120 °C (250 °F) |
| Ball Material | GCr15SiMn |
| Bearing type | Capped single row deep groove ball bearings |
| Bearing Mass - m | 0.63 kg | 1.389 lb |
| Temperature - T(min) | -40 °C |
| Temperature - T(max) | 100 °C |
| Manufacturer Part Code | 6308.2RS1 |
| Abutment dimensions - da(min.) | 49 mm | 1.929 inch |
| Tolerance class | P6 |
| Abutment dimensions - da(max.) | 56 mm | 2.205 inch |
| Abutment dimensions - Da(max.) | 81 mm | 3.189 inch |
| Radial run-out | P6 |
| Dimensional tolerances | P6 |
Single row deep groove ball bearings 6308-2RS1/C3, 0.63 kg Bearing mass, (40*90*23 mm), 40 mm d (Bore: diameter of the inner ring), 90 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 23 mm B (Width: nominal width of the bearing), 42097 N radial dynamic load capacity (Dyn. Cr), 23279 N radial static load capacity (Stat. Cor), 4951 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(6308-2RS1/C3, 40 = ID, 90 = OD, 23 = B, 0.63 kg) or according to different suppliers
- Price: Different brands, different quality, different 6308-2RS1/C3 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From SKF 6308-2RS1/C3 Bearing, Deep Groove Ball, Radial, Cylindrical Bore, 40 mm id x 90 mm OD x 23 mm B, C3 Internal Clearance;
Manufacturer Part Code: 6308-2RS1/C3;
Dimension Inside - id φ: 40 mm;
Dimension Outside - OD Φ: 90 mm;
Dimension Width - B: 23 mm;
Type Of Bore: Straight Bore;
Type of Seal: Two Sealed Shield;
Number of Rows & Fill Slot: 1;
Radial Internal Play: C3;
Operation Temp Range: -40 to +210 °F;
Radial (Dyn.load Cr): 9509 lbf;
Radial (Stat.load Cor): 5395 lbf;
Running Accuracy Class: ABEC 3;
Sealing Ring Type: Contacting seal;
Surface Coating: NO;
Material of Bearing: Bearing steel;
Material of Cage: Bearing steel;
Width Of Inner Ring: 23 mm;
Width Of Outer Ring: 23 mm;
Fillet Radius(ra): 1.5 mm;
Limiting speed (1/min): 5000 RPM;
Bearing Series: 63;
Bearing Mass (M): 1.43 lbs
Manufacturer Part Code: 6308-2RS1/C3;
Dimension Inside - id φ: 40 mm;
Dimension Outside - OD Φ: 90 mm;
Dimension Width - B: 23 mm;
Type Of Bore: Straight Bore;
Type of Seal: Two Sealed Shield;
Number of Rows & Fill Slot: 1;
Radial Internal Play: C3;
Operation Temp Range: -40 to +210 °F;
Radial (Dyn.load Cr): 9509 lbf;
Radial (Stat.load Cor): 5395 lbf;
Running Accuracy Class: ABEC 3;
Sealing Ring Type: Contacting seal;
Surface Coating: NO;
Material of Bearing: Bearing steel;
Material of Cage: Bearing steel;
Width Of Inner Ring: 23 mm;
Width Of Outer Ring: 23 mm;
Fillet Radius(ra): 1.5 mm;
Limiting speed (1/min): 5000 RPM;
Bearing Series: 63;
Bearing Mass (M): 1.43 lbs
Data Transfering...
Wafangdian AA Bearing Trade Co.,Ltd
Email: sales@spainbearing.com Tel: 86-159-06428604 2021-12-05Part Item: 6308-2RS1/C3; Inside Diameter (d): 40 mm; Outside Diameter (D): 90 mm; Width (B): 23 mm; d1: 56.11 mm; D2: 77.7 mm; r1.2 min.: 1.5 mm; da min: 49 mm; da max: 56 mm; Da max: 81 mm; ra max: 1.5 mm; C: 42.3 kN; Radial Static Load Capacity C0r: 24 kN; Fatigue radial Load Capacity Pu: 1 kN; Maximum RPM(Oil): 5000 r/min; kr: 0.03. Factor; f0: 13.2. Factor; Weight (M): 0.646 kg; Replace From SKF 6308-2RS1/C3
