6309-MA-P5-R25-38

Bore
45 mm
Outer
100 mm
Width
25 mm
Wight
1.02 kg
Single row deep groove ball bearings
With a simple and versatile structure, it can withstand combined radial and bidirectional axial loads, has low friction, and is suitable for high-speed operation. It is widely used in motors, household appliances, and various general-purpose machinery.

Main technical Specifications

New Designations :
6309-MA-P5-R25-38
Main demensions :
45 × 100 × 25
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.02 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
45 mm
Inside diameter(I.D.)
OD :
100 mm
Outside diameter(O.D.)
T(B) :
25 mm
Thickness(W.D.)
Category :
Single row deep groove ball bearings

Detailed parameters and installation dimensions:

Part Number: 6309-MA-P5-R25-38
Technical description (MA-P5-R25-38): MA=Machined Brass Cage, Outer Ring Guided. P5=Dimensional And Running Accuracy To ISO Tolerance Class 5. A25-38=Radial Clearance In µm.
Bearing Type: Deep Groove Ball Bearings, Single Row
Structure Features' Description: Deep groove ball bearing
Bearing Size (metric): Bore Dia. (d): 45,00 mm X Outer dia. (D): 100,00 mm X Width (B): 25,00 mm or Size: 45,00 mm * 100,00 mm * 25,00 mm
Original Equipment Manufacture(OEM NO.): 6309-MA-P5-R25-38
Bore: C (Cylindrical Bore)
Seals Type: No Seal
Cage Design: MA - Brass Cage, Centered on Outer Ring
Radial internal clearance: Cn (Normal Internal clearance)
Precision Rating: P5 Precision (Higher than P6)
Type of lubrication: Standard class lubrication
Thermal Stability: No Thermal Stability - Temperatures up to 120°C

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

6309-MA-P5-R25-38 refers to a type of Single row deep groove ball bearings, with dimensions 45 mm (Bore) x 100 mm (OD) x 25 mm (Width), designed for Simple structure and highly versatile, primarily used in Electric motors, automobiles, general equipment, for applications The vast majority of motors, transmission systems, and general-purpose machinery (general-purpose, economical, and efficient). It weight approximately 1.02 kilogram.

  • Min. Order: 1 Piece/(6309-MA-P5-R25-38, 45 = ID, 100 = OD, 25 = B, 1.02 kg) or according to different suppliers
  • Price: Different brands, different quality, different 6309-MA-P5-R25-38 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

FW: INQUIRY FOR SKF BEARING 618/8-2Z, DISC AND HAND TOOLS

Attn sales, Please quote your best price below item. sr Description Qty Unit price in TOTAL 1 DIA 50MM FORCH FIBER DISC P50 BOX 20 2 DIA 75MM FORCH FIBER DISC P50 BOX 20 3 STARCKE 120P SANDPAPER ROLLS 3

✨What are the Benefits of choosing 6309-MA-P5-R25-38 bearings?

  • Versatile Load Bearing: Capable of simultaneously withstanding radial and bidirectional axial loads, suitable for high-speed and ultra-high-speed applications.
  • Low Friction and Long Life: Optimized contact between the raceway and steel balls results in an extremely low coefficient of friction, minimal heat generation, and a long service life.
  • High Speed ​​Capability: Due to high operational precision, it allows for very high maximum speeds.
  • Low Maintenance Costs: Can be designed with dust covers or sealing rings for lifetime lubrication, requiring no routine maintenance.
  • Rigid and Quiet Operation: Provides a certain level of rotational stiffness while maintaining low operating noise and vibration levels.
  • The 6309-MA-P5-R25-38 Single row deep groove ball bearings adopts a Simple structure and highly versatile design, with dimensions an inner diameter of 45 mm, an outer diameter of 100 mm, a width of 25 mm, ensure the equipment operates more stably for applications The vast majority of motors, transmission systems, and general-purpose machinery (general-purpose, economical, and efficient).

🏭 What are the applications of the 6309-MA-P5-R25-38 bearing?

  • Motors/Electrical Appliances: Used in motors and home appliances. Ensures smooth high-speed operation and low noise.
  • Automotive Industry: Used in generators and gearboxes. Suitable for medium loads and offers high reliability.
  • General Machinery: Used in pumps, fans, and speed reducers. Low friction, maintenance-free, and long service life.

Leave A Comment

Other models the same size : 45x100x25

6309-2RS2/C3HS0VT486

Single row deep groove ball bearings   45 * 100 * 25 Grease rpm: 14920, Oil rpm: 9443, M: 0.841

6309 MA/C3

Single row deep groove ball bearings   45 * 100 * 25 Grease rpm: 14886, Oil rpm: 13896, M: 1

PER.6309-2RLDC3V2

Deep Groove Ball Bearings   45 * 100 * 25 M: 0.81

6309 N/C3

Single row deep groove ball bearings   45 * 100 * 25 Grease rpm: 14882, Oil rpm: 9457, M: 0.801

MRC.309S

Deep Groove Ball Bearings   45 * 100 * 25 Grease rpm: 14950, Oil rpm: 9435, M: 0.82

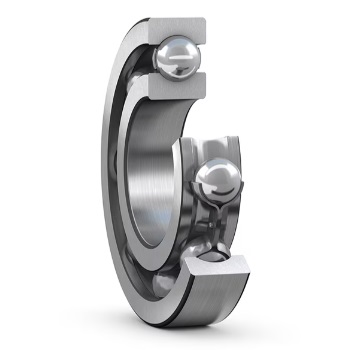

PER.6309-DV2
