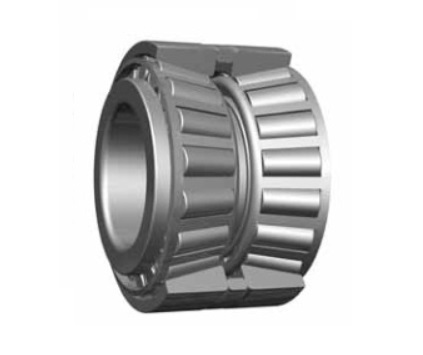

687/672/X2S-687/Y5S-672 Double row inch taper roller bearings dimensions
New Designations :
687/672/X2S-687/Y5S-672
Main demensions :
101.6 × 168.275 ×
183.718
Bore Dia × Outside Dia × Width Dia (mm)
M :
12.46 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
101.6 mm
Inside diameter(I.D.)
OD :
168.275 mm
Outside diameter(O.D.)
T(B) :
183.718 mm
Thickness(W.D.)
Category :
Double row inch taper roller bearings

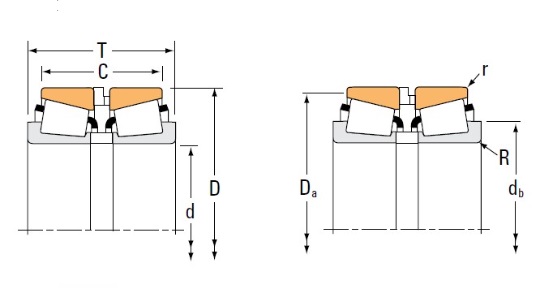

Detailed parameters and installation dimensions:
| Part Number | 687/672/X2S-687/Y5S-672 |
| Design Type | 2TS-IM = two single-row assemblies, indirect mount |
| Series | 687 |
| Dimension Inside - d φ (inch) | 4 |
| Dimension Outside - D Φ (inch) | 6.625 |
| Dimension thickness - T (inch) | 7.233 |
| Dimension Cup Width - C (inch) | 6.358 |
| Dimension Inside - d φ (mm) | 101.6 |
| Dimension Outside - D Φ (mm) | 168.275 |
| Dimension thickness - T (mm) | 183.718 |
| Dimension Cup Width - C (mm) | 161.493 |
| Pairing Type | face-to-face (><) |
| Inner | 687 |
| Outer | 672 |
| Dynamic Radial Capacity - C1 (lbf) | 103954 |
| Dynamic Radial Capacity - C1 (N) | 460934 |
| Coefficient - e | 0.47 |
| Coefficient - Y1 | 1.43 |
| Coefficient - Y2 | 2.14 |
| Units | Inch |
| Bearing Type | Matched Tapered Roller Bearings, Double Row - 2TS-IM Type (Assembly, Indirect Mount) |
| Dynamic Radial Capacity - C90 (lbf) | 15296 |
| Dynamic Radial Capacity - C90 (N) | 68547 |
| Dynamic Axial Capacity - Ca90 (lbf) | 12336 |
| Dynamic Axial Capacity - Ca90 (N) | 55065 |
| Cage Material | Stamping steel cage |
| Inner Spacer | X2S-687 |
| Outer Spacer | Y5S-672 |
| Dynamic Radial Capacity - C90(2) (lbf) | 26855 |
| Dynamic Radial Capacity - C90(2) (N) | 118779 |
| Ring Material | GCr15SiMn |
| Coefficient - K | 1.24 |
| Manufacturer Part Code | 687-672 (X2S-687-Y5S-672) |
| Max Shaft Fillet Radius - R (inch) | 0.14 |
| Max Shaft Fillet Radius - R (mm) | 3.6 |
| Backing Shoulder Dia.(Shaft) - db (inch) | 4.65 |
| Backing Shoulder Dia.(Shaft) - db (mm) | 118 |
| Ball Material | GCr15SiMn |
| Rows NO. | 2 |
| Max Housing Fillet Radius - r (inch) | 0.03 |
| Max Housing Fillet Radius - r (mm) | 0.8 |
| Backing Shoulder Dia.(Housing) - Da (inch) | 6.34 |
| Backing Shoulder Dia.(Housing) - Da (mm) | 161 |
Double row inch taper roller bearings 687/672/X2S-687/Y5S-672, 12.46 kg Bearing mass, (101.6*168.275*183.718 mm), 101.6 mm d (Bore: diameter of the inner ring), 168.275 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 183.718 mm B (Width: nominal width of the bearing),
