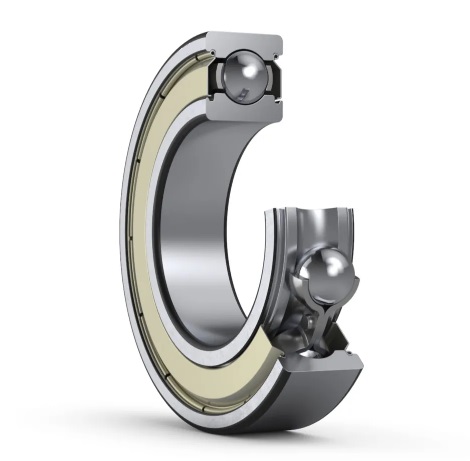

6921ZZ Single row deep groove ball bearings dimensions
New Designations :
6921ZZ
Main demensions :
105 × 145 ×
20
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.856 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
105 mm
Inside diameter(I.D.)
OD :
145 mm
Outside diameter(O.D.)
T(B) :
20 mm
Thickness(W.D.)
C :
46.358 kN
Radial dynamic load rating
C0 :
41.677 kN
Radial static load rating
Grease rpm :
4274 r/min
Reference speed
Category :
Single row deep groove ball bearings

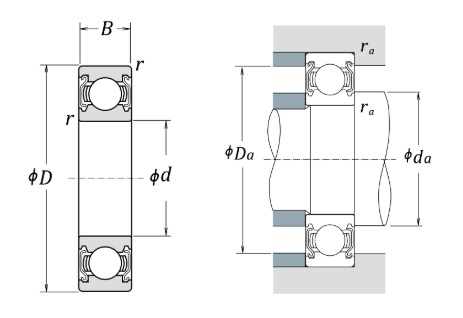

Detailed parameters and installation dimensions:
| Part Number | 6921ZZ |
| Seal | ZZ = shields on both sides |
| Series | 6900 metric, extra-thin section series (69..ZZ) |
| Dimension Chamfer - r min | 1.1 mm | 0.0433 inch |
| Radial clearance | CN |
| Radial Dynamic Capacity - Cr | 46358 N | 10421 lbf |
| Radial Static Capacity - C0r | 41677 N | 9368 lbf |
| Bore | Cylindrical |
| Units | Metric |
| Speed ratings (grease) - nB | 4274 min–1 |
| Equivalent | 6921-ZZ |
| Load | radial |
| Rows NO. | One |
| Number of Balls - z | 18 |
| Ball Diameter - Dw | 11.906 mm | 0.4687 inch |
| Abutment Dimensions Shaft - da min | 111.5 mm | 4.3898 inch |
| Abutment Dimensions Shaft - da max | 116 mm | 4.5669 inch |
| Abutment Dimensions Housing - Da max | 138.5 mm | 5.4527 inch |
| Cage | Pressed Steel Cages |
| Temperature - T(min) | -10 °C |
| Temperature - T(max) | 110 °C |
| Interchangeable | NSK 6921ZZ |
| Dimension Inside - d φ | 105 mm | 4.1338 inch |
| Dimension Outside - D Φ | 145 mm | 5.7087 inch |
| Dimension Width - B | 20 mm | 0.7874 inch |
| Tolerance class | P0 (ABEC-1) |
| Ball Material | GCr15SiMn |
| Fillet Radius - ra max | 1 mm | 0.0394 inch |
| Factor - fo | 16.5 |
| Bearing Type | Deep groove ball bearings, single row, shields |
| Bearing Mass - m | 0.856 kg | 1.8871 lb |
| Manufacturer Part Code | 6921-ZZ |
| Ring Material | GCr15SiMn |
Single row deep groove ball bearings 6921ZZ, 0.856 kg Bearing mass, (105*145*20 mm), 105 mm d (Bore: diameter of the inner ring), 145 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 20 mm B (Width: nominal width of the bearing), 46358 N radial dynamic load capacity (Dyn. Cr), 41677 N radial static load capacity (Stat. Cor), 4274 r/min Maximum RPM (Speed in grease),
- Min. Order: 1 Piece/(6921ZZ, 105 = ID, 145 = OD, 20 = B, 0.856 kg) or according to different suppliers
- Price: Different brands, different quality, different 6921ZZ prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Reference From NTN 6921ZZ, Radial Bearing, Deep Groove Ball, Straight Bore, 105 mm id x 145 mm OD x 20 mm B;
Manufacturer Part Code: 6921ZZ;
Dimension Inside - id φ: 105 mm;
Dimension Outside - OD Φ: 145 mm;
Dimension Width - B: 20 mm;
Type Of Bore: Straight Bore;
Type of Seal: Two Sealed;
Number of Rows: One Rows;
Snap Ring Included: No;
Radial Internal Play: CN;
Operation Temp Rating: -40 to 120 ºC;
Dyn. Load Rating: 42500 N;
Stat. Load Rating: 42000 N;
Running Accuracy Class: ISO Class 0 (DIN P0);
Surface Coating: NO;
Material of Bearing: High Hardness Bearing Steel;
Material of Cage: Steel;
Width Of Inner Ring: 20 mm;
Width Of Outer Ring: 20 mm;
Max Reference Speed RPM (Grease): 4300 rpm;
Fillet Radius(ra): 1.1 mm;
Limiting speed Max (1/min): 5100 RPM;
Standards: MIL-G-18709A;
Bearing Series: 69;
Bearing Mass (m): 1.84 lbs;
Manufacturer Part Code: 6921ZZ;
Dimension Inside - id φ: 105 mm;
Dimension Outside - OD Φ: 145 mm;
Dimension Width - B: 20 mm;
Type Of Bore: Straight Bore;
Type of Seal: Two Sealed;
Number of Rows: One Rows;
Snap Ring Included: No;
Radial Internal Play: CN;
Operation Temp Rating: -40 to 120 ºC;
Dyn. Load Rating: 42500 N;
Stat. Load Rating: 42000 N;
Running Accuracy Class: ISO Class 0 (DIN P0);
Surface Coating: NO;
Material of Bearing: High Hardness Bearing Steel;
Material of Cage: Steel;
Width Of Inner Ring: 20 mm;
Width Of Outer Ring: 20 mm;
Max Reference Speed RPM (Grease): 4300 rpm;
Fillet Radius(ra): 1.1 mm;
Limiting speed Max (1/min): 5100 RPM;
Standards: MIL-G-18709A;
Bearing Series: 69;
Bearing Mass (m): 1.84 lbs;
Data Transfering...
Wafangdian AA Bearing Trade Co.,Ltd
Email: sales@spainbearing.com Tel: 86-159-06428604 2021-11-216921ZZ Radial Ball Bearing, 69 Series, Deep Groove, Cylindrical Bore, 105 mm = Bore (d), 145 mm = D, 20 mm = B, 42500 N = Load Capacity; Brand: Interchangeable From NTN 6921ZZ or OEM;
Material Of Bearing = High Hardness Bearing Steel;
Material Of Cage = Pressed Steel;
Seal Type = Two Seal Close;
Max speed = 4300 rpm Grease;
Bearing Series = 69 Series;
Operating Temperature Range = -40 to 120 °C;
Feature = Cylindrical Bore Standard Medium;
Bore Dia. (d) = 105 mm;
Outside Dia. (D) = 145 mm;
Number of Rows = 1;
Width (B) = 20 mm;
Load Rating = 42500 N
