7208CTRDFDMP4
Main technical Specifications

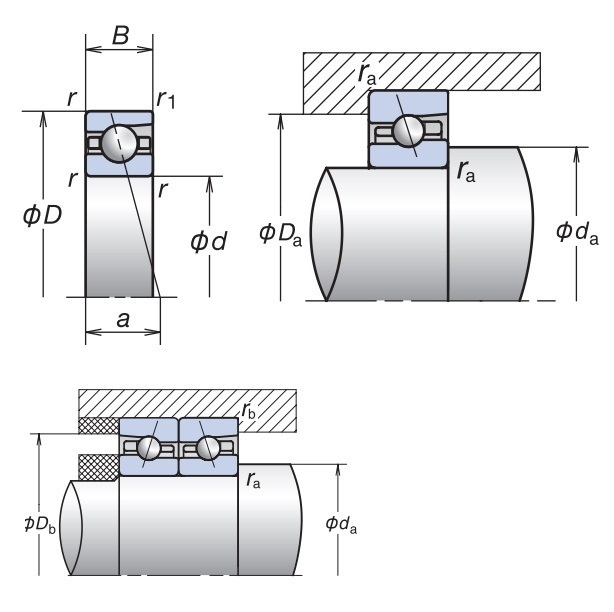

Detailed parameters and installation dimensions:
| Part Number | 7208CTRDFDMP4 |
| Cage | TR = Phenolic resin, Outer ring guided |
| Preload | M = Medium Preload |
| DFD Preload - M | 1362.72 N | 306 lbf |
| Temperature - T(min) | -30 °C |
| Temperature - T(max) | 120 °C |
| Seal | Open type |
| Inner and outer ring Material | GCr15SiMn |
| DFD Axial Rigidity - M | 266.4 N/µm |
| Balls Material | GCr15SiMn |
| Bearing Type | High-Accuracy Angular Contact Ball Bearings, Standard Series |
| Speed ratings (grease) - nB | 18803 min–1 |
| Speed ratings (oil) - nG | 28802 min–1 |
| Dimension series | 2 = 02 Series |
| Series | 72 series (72..CTRDFDMP4) |
| Bore | Cylindrical |
| Dimension Inside - d φ | 40 mm | 1.5748 inch |
| Dimension Outside - D Φ | 80 mm | 3.1496 inch |
| Dimension Width - B | 18 mm | 0.7087 inch |
| Units | Metric |
| Load | Axial |
| Dimension Chamfer - r min | 1.1 mm | 0.0433 inch |
| Dimension Chamfer - r1 min | 0.6 mm | 0.0236 inch |
| Manufacturer Part Code | 7208C TR DFDM P4 |
| Rows NO. | One |
| Permissible Axial Load | 16982 N | 3817 lbf |
| Factor - fo | 14.1 |
| Effective Load Center - a | 17.0 mm | 0.6693 inch |
| Accuracy class | P4 = (ABEC-7 / ISO Class 4) |
| Arrangement | DFD = Three set (>><) |
| Radial Dynamic Capacity - Cr | 37267 N | 8377 lbf |
| Radial Static Capacity - C0r | 24317 N | 5466 lbf |
| Abutment Dimensions Shaft - da min | 47 mm | 1.8504 inch |
| Abutment Dimensions Housing - Da max | 73 mm | 2.8740 inch |
| Abutment Dimensions Housing - Db max | 75 mm | 2.9527 inch |
| Design type | 7 = Standard High-Accuracy |
| Contact angle - α | C = 15 ° |
| Fillet Radius - ra max | 1 mm | 0.0394 inch |
| Fillet Radius - rb max | 0.6 mm | 0.0236 inch |
| Measured Axial Clearance - M | -29 µm |
| Bearing DFD Mass - m | 1.098 kg | 2.4207 lb |
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
7208CTRDFDMP4 refers to a type of 72 series (72..CTRDFDMP4) High-Accuracy Angular Contact Ball Bearings, Standard Series, with dimensions 40 mm (Bore) x 80 mm (OD) x 18 mm (Width), designed for High speed, ultra-precision, high rigidity, low operating friction, and long service life, primarily used in CNC machine tool spindles and other high-precision machinery, Its normal operating speed can reach: the grease speed ratings: 18803 rpm, oil speed ratings: 28802 rpm, featuring One (row) construction, TR = Phenolic resin, Outer ring guided retainer to ensure extended service life, advanced Open type, for applications the field of precision machinery, especially high-speed and high-precision spindle systems, requiring high running accuracy and the accommodation of radial and axial loads simultaneously.. it's built to handle significant loads (dynamic radial: 37267 N, static radial: 24317 N, ), It weight approximately 1.098 kilogram.
- Min. Order: 1 Piece/(7208CTRDFDMP4, 40 = ID, 80 = OD, 18 = B, 1.098 kg) or according to different suppliers
- Price: Different brands, different quality, different 7208CTRDFDMP4 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Data Transfering...
✨What are the Benefits of choosing 7208CTRDFDMP4 bearings?
🏭 What are the applications of the 7208CTRDFDMP4 bearing?
📐 How should choose the right model for a Angular contact ball bearings, super-precision?
Selecting ultra-precision angular contact ball bearings can be summarized in three steps: choose the series, match the angle, and select the suffix.
Step 1: Choose the Series – Determine the product line based on the operating conditions.
Several dedicated series are designed for different applications; you can directly choose the appropriate one:
Robust Series: General purpose preferred. Suitable for general machine tool spindles such as machining centers. Low heat generation, high speed; models with seals can extend grease life to 1.7 times that of open bearings. BNR: 18° high-speed type, and BER: 25° general-purpose type.
Standard Series (70/72/79): Conventional precision, high cost-effectiveness. Suitable for general precision machinery and lead screw supports; optional seals can increase grease life by 1.5 times.
SpinShotⅡ Series: Dedicated for electric spindles. Optimized oil-air lubrication; NT#40 level can reach 40,000 min⁻¹, with noise reduction of 3-5dB.
BSR Series: Dedicated for small diameters (inner diameter ≤25mm). Suitable for small ultra-high-speed spindles and internal grinding spindles. TAC-F Series: Dedicated for heavy-duty cutting. 50° contact angle, highest rigidity, suitable for heavy cutting and high-rigidity shaft applications.
BNRD/BERD series (ROBUSTDYNA): Higher rigidity and load-bearing capacity than the BNR/BER series, suitable for applications such as machining center spindles. BNRD: 18°, BERD: 25°
Step 2: Understanding the Angle Designation
The contact angle determines axial load capacity and high-speed performance. Different series have different designations:
Standard series, C: 15° (ultra-high speed), A5: 25° (general purpose, most commonly used), A: 30° (medium load), and B: 40° (heavy load).
Robust series, BNR: 18° (Robust high-speed type), BER: 25° (Robust general purpose type), and BSR: 15° (Robust small diameter type).
BNRD/BERD series (ROBUSTDYNA): BNRD: 18° (Ultra-high speed, low heat generation), BERD: 25° (High speed + high rigidity, better load-bearing capacity).
The selection principle is that a smaller contact angle is more suitable for high speeds, while a larger contact angle allows for stronger axial load resistance.

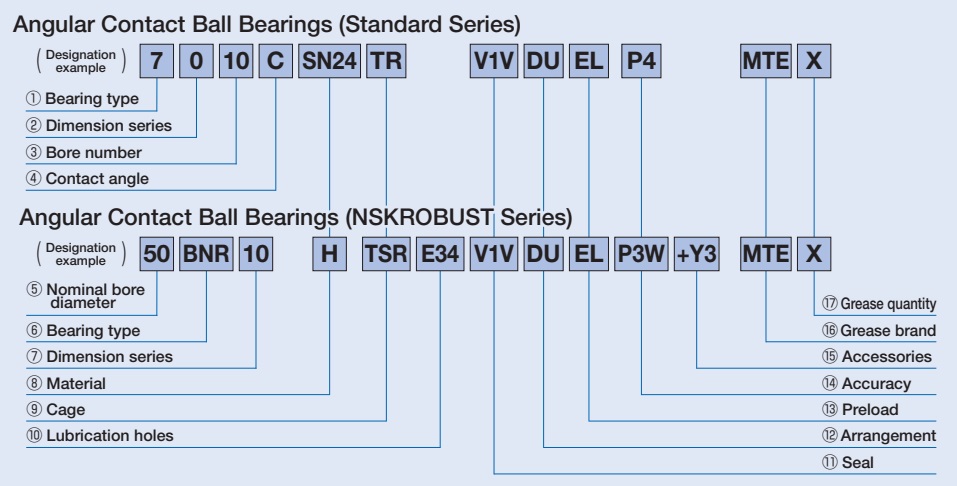

Step 3: Matching the Suffix – Locking in the Complete Model Number
Bearing Type①⑥
① 7: High-Accuracy Angular Contact Ball Bearings (Standard Series)
⑥ High-Speed Angular Contact Ball Bearings (ROBUST Series)
BNR,BER: BASIC Series
BNRD,BERD: ROBUSTDYNA
BSR: MINI Series
Contact Angle④⑥
④ Standard Series (C: 15° A5: 25° A: 30°)
⑥ ROBUST Series (BNR,BNRD: 18°, BER,BERD: 25°, BSR: 15°)
Dimension Series②⑦
② Standard Series (9: 19 Series, 0: 10 Series, 2: 02 Series)
⑦ ROBUST Series (19: 19 Series, 29: 29 Series, 10: 10 Series, 20: 20 Series, 02: 02 Series)
Bore Number③⑤
③ Standard Series
Up to 3: Bore diameter 00: 10mm, 01: 12mm, 02: 15mm, 03: 17mm
4 and above: Bore diameter = Bore number x 5 (mm)
⑤ ROBUST Series
Nominal bore diameter = Bore dimension (mm)
⑧ Material
Standard Series (No code: Steel ball SN24: Seramic ball)
ROBUST Series
S Type: Inner and outer ring use Bearing steel (SUJ2), Balls use Bearing steel (SUJ2)
E Type: Inner and outer ring use Bearing steel (SUJ2), Balls use Ultra long life rolling elements (EQTF)
H Type: Inner and outer ring use Bearing steel (SUJ2), Balls use Ceramic (Si3N4)
J Type: Inner and outer ring use Ultra Long life steel (SUJ7), Balls use Ceramic (Si3N4)
X Type: Inner and outer ring use Heat resistant steel for highspeed operation (SHX), Balls use Ceramic (Si3N4)
XE(SpinshotⅡ) Type: Inner and outer ring use Heat resistant steel for highspeed operation (SHX), Balls use Ceramic (Si3N4)
⑩ Lubrication Holes
No code: No lubrication holes E34: Direct lubrication bearing
⑨ Cage
T = phenolic resin cage, inner ring guided
T1X = polyamide resin cage, ball guided
TA = Phenolic resin, Outer ring guided
TR = Phenolic resin, Outer ring guided
TSR = PPS resin, Outer ring guided
TX = Phenolic resin, Outer ring guided
TYA = polyamide resin cage, ball guided, high speed
TYN = Polyamide resin, Ball guided
MY = Brass, ball guided
⑪ Seal
No code: Open type V1V: Non-contact rubber seal
⑮ Accessories
+Y3: O-ring on bearing outside surface Available for ROBUST direct lubrication bearings (E34) only.
⑫ Arrangement

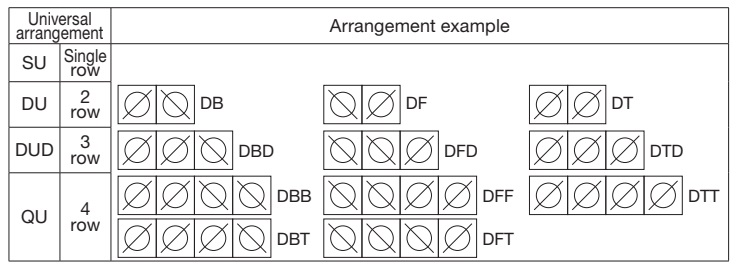

DU is a universal pairing of two rows; DB is back-to-back; DF is face-to-face; DT is tandem.
⑬ Preload
EL: Extra Light Preload
L: Light Preload
M: Medium Preload
H: Heavy Preload
CP: Special Measured (–) Axial Clearance
CA: Special Measured (+) Axial Clearance
⑭ Accuracy
P2: ISO Class 2
P4: ISO Class 4
P5: ISO Class 5
P3W: Special class (Special tolerances for deviation of inner/outer ring width, others are P3)
P3: Special class (ISO Class 4 dimensional tolerances and ISO Class 2 running accuracy)
P4Y: Special class (Special bore and outside diameter tolerances, others are ISO Class 4. See figure on left.)
⑯ Grease Brand
Grease typically used in machine tool spindles:
MTR: ROBUSTGRD MTS: MTS grease
⑰ Grease Quantity
X: 15% of internal space K: 20% of internal space L: 30% of internal space
Three-step selection process: Determine the series → Select the contact angle → Match the suffixes (cage + material + seal + preload + arrangement + precision). Following this logic will allow you to select the complete NSK ultra-precision angular contact ball bearing model.
🛠️ What is the mounting procedure for 7208CTRDFDMP4 bearings?
Cleaning and Inspection: Clean the bearing in a dust-free environment. After a rough wash to remove contaminants, perform a fine wash until the bearing feels smooth and responsive to the touch. Simultaneously check the accuracy of the mating surfaces of the shaft and bearing housing.
Measurement and Fitting: Precisely measure the bearing's inner and outer diameters. Mark the corresponding positions on the shaft and housing bores for alignment during assembly to compensate for any deviations.
Installation and Positioning: Apply pressure evenly using a specialized tool, focusing only on the interference fit rings. If heat fitting is used, tighten the inner ring during cooling to prevent clearance from affecting the preload.
Preload Adjustment: When installing in pairs, ensure the parallelism of the inner and outer spacers is ≤1μm. Adjust the preload force to the specified value by grinding the spacers.
Lubrication Inspection: Add the specified amount of grease or oil mist lubricant. After installation, manually rotate the bearing to check its flexibility and operating noise.
📋 Special Note for mounting 7208CTRDFDMP4 bearings?
Clean Environment: Operation must be performed in a dust-free cleanroom with humidity ≤65% to prevent dust and impurities from affecting accuracy.
No Striking: Direct striking of the bearings is strictly prohibited. Special tools must be used, and force must be applied evenly.
Matching Marks: Bearings used in pairs are not interchangeable. Installation must strictly follow the factory matching marks.
