7214-B-TVP-UO

Bore
70 mm
Outer
125 mm
Width
24 mm
Wight
1.1 kg
Angular contact ball bearings, single row
High speed, high precision, capable of withstanding combined radial and unidirectional axial loads, widely used in machine tool spindles, automotive transmissions, and industrial robots.

Main technical Specifications

New Designations :
7214-B-TVP-UO
Main demensions :
70 × 125 × 24
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.1 kg
Weight
HS Code :
8482103000
Bearing customs code
ID :
70 mm
Inside diameter(I.D.)
OD :
125 mm
Outside diameter(O.D.)
T(B) :
24 mm
Thickness(W.D.)
Cr :
73.982 kN
Radial dynamic load rating
C0r :
61.986 kN
Radial static load rating
Grease rpm :
5396 r/min
Reference speed
Oil rpm :
7193 r/min
Limiting speed
Category :
Single row angular contact ball bearings

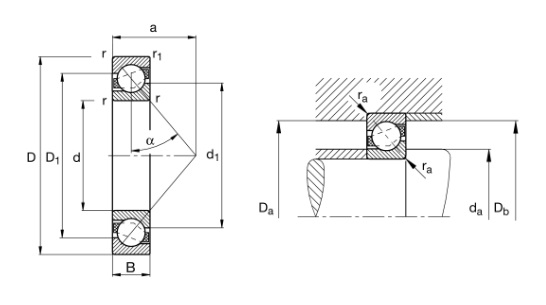

Detailed parameters and installation dimensions:

Part Number 7214-B-TVP-UO
Design Type B = Modified internal construction
Series 72..-B-XL-TVP
X-Life XL
Limiting speed (oil) - nG 7193 min–1
Reference speed (grease) - nB 5396 min–1
Bearing Mass - m 1.1 kg | 2.425 lb
Reference From FAG 7214-B-TVP-UO
Dimension Inside - d φ 70 mm | 2.756 inch
Dimension Outside - D Φ 125 mm | 4.921 inch
Dimension Width - B 24 mm | 0.945 inch
Rows NO. single
Accuracy class PN
Dimension - r(min.) 1.5 mm | 0.059 inch
Dimension - r1(min.) 1 mm | 0.039 inch
Seal Open
Bearing pair UO = Universal design for mounting in pairs, bearing pair is clearance-free in O and X arrangement
Dimension - D1 104.04 mm | 4.096 inch
Radial static Capacity - C0r 61986 N | 13934 lbf
Bore Type Z = Cylindrical Bore
Heat stabilization S0 = up to 150°
Dimension - d1 92.32 mm | 3.635 inch
Dimension - a 52.9 mm | 2.083 inch
Manufacturer Part Code 7214-B-TVP-UO
Contact angle - α 40 °
Mounting dimensions - da(min.) 79 mm | 3.110 inch
Mounting dimensions - Da(max.) 116 mm | 4.567 inch
Mounting dimensions - Db(max.) 119.4 mm | 4.701 inch
Bearing Type Angular contact ball bearings, single row
Mounting dimensions - ra(max.) 1.5 mm | 0.059 inch
Mounting dimensions - ra1(max.) 1 mm | 0.039 inch
Temperature - T(min) -30°C
Temperature - T(max) 120°C
Ring Material GCr15SiMn
Cage TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Radial Dynamic Capacity - Cr 73982 N | 16631 lbf
Ball Material GCr15SiMn
Radial Fatigue Capacity - Cur 4295 N | 965 lbf
Equivalent 7214-B-TVP-UO,7214B.TVP.UO
Lubricant Without
Tolerance for axial clearance or preload per set - Tol(+) 12 µm

The equivalents & Variants model of 7214-B-TVP-UO Single row angular contact ball bearings:

7214-B-TVP-UO,7214B.TVP.UO

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

7214-B-TVP-UO refers to a type of 72..-B-XL-TVP Angular contact ball bearings, single row, with dimensions 70 mm (Bore) x 125 mm (OD) x 24 mm (Width), designed for High speed, high precision, Low friction and low heat generation, primarily used in Precision machine tools, motors, high-speed spindles, Its normal operating speed can reach: the grease speed ratings: 5396 rpm, oil speed ratings: 7193 rpm, featuring single (row) construction, TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage) retainer to ensure extended service life, advanced Open, PN (precision) for applications General machinery, automobiles, machine tool spindles, motors, gearbox, robots, precision instruments it's built to handle significant loads (dynamic radial: 73982 N, static radial: 61986 N, ), It weight approximately 1.1 kilogram.

  • Min. Order: 1 Piece/(7214-B-TVP-UO, 70 = ID, 125 = OD, 24 = B, 1.1 kg) or according to different suppliers
  • Price: Different brands, different quality, different 7214-B-TVP-UO prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Reference From FAG (Schaeffler) 7214-B-TVP-UO Bearing, Angular Contact, Ball - 70 mm id x 125 mm OD x 24 mm B, Open, 40 ° Contact Angle, C0;
Manufacturer Part Code: 7214-B-XL-TVP-UO;
Dimension Inside - id φ: 70 mm;
Dimension Outside - OD Φ: 125 mm;
Dimension Width - B: 24 mm;
Contact Angle (α): 40 °;
Number of Rows & Fill Slot: Single-Row Non-Fill Slot;
Radial Internal Play: C0;
Type of Closure: Open;
Radial (Dyn.load Cr): 74000 N;
Radial (Stat.load Cor): 62000 N;
Operation Temp Range: Max of +120 °C;
Material of Cage: Polyamide;
Width Of Outer Ring: 24 mm;
Limiting speed (1/min): 6500 RPM;
Surface Coating: NO;
Running Accuracy Class: ABEC 1 (ISO Class Normal);
Fillet Radius(ra): 1.5 mm;
Bearing Series: 7200;
Standards: DIN 628-1;
Bearing Mass (M): 2.46 lbs

Запрос Подшипник шар. 6204-2RSH

Добрый день! Просим Вас сообщить о возможности поставки товара. Описание во вложении.

✨What are the Benefits of choosing 7214-B-TVP-UO bearings?

  • High speed and high precision: Extremely high limiting speed, rotational accuracy reaches P5 level or higher, suitable for precision equipment.
  • Flexible assembly: A single unit can withstand unidirectional axial and radial forces; bidirectional load-bearing or anti-tipping can be achieved through DB/DF/DT combinations.
  • Compact structure: Small footprint and light weight, suitable for small and medium-sized equipment.
  • The 7214-B-TVP-UO Single row angular contact ball bearings adopts a High speed, high precision, Low friction and low heat generation design, Reference FAG technology, with dimensions an inner diameter of 70 mm, an outer diameter of 125 mm, a width of 24 mm, featuring single (row) construction from 72..-B-XL-TVP (series), optimal operating temperature is generally -30 to 120 degrees Celsius. With grade precision of PN and ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:5396 Limit Speed Ratings (oil) rpm:7193)for applications General machinery, automobiles, machine tool spindles, motors, gearbox, robots, precision instruments

🏭 What are the applications of the 7214-B-TVP-UO bearing?

  • Motor/Machine Tool Spindles: Used in high-speed motors, electric spindles, and grinding heads. High limiting speed, P5/P4 rotational accuracy ensures smooth machining.
  • Automotive Transmissions: Used in gearboxes, compressors, and water pumps. Withstands complex loads, high reliability, and adaptable to medium speeds.
  • General Purpose Pumps/Fans: Used in centrifugal pumps and cooling fans. Compact structure, low friction, long service life, and maintenance-free operation.
  • Light Industry/Textiles: Used in textile spindles and packaging machinery. High speed, low vibration, suitable for continuous operation.

Leave A Comment

Other models the same size : 70x125x24

6214-2RS/Z2

   70 * 125 * 24 , Cr: , C0r: , M: 1.07

6214-2RS/Z3

 180214Z3  70 * 125 * 24 , Cr: , C0r: , M: 1.07

6214-RS

Single row deep groove ball bearings 160214  70 * 125 * 24 , Cr: 60.342, C0r: 43.644, Grease rpm: 5653, Oil rpm: 8285, M: 1.1

6214-LS

   70 * 125 * 24 , Cr: 60.8, C0r: 45.0, Grease rpm: 3300, M: 1.4

6214-RZ

 160214K  70 * 125 * 24 , Cr: 60.8, C0r: 45.0, Grease rpm: 4800, Oil rpm: 6000, M: 1.04

6214-2LS

   70 * 125 * 24 , Cr: 60.8, C0r: 45.0, Grease rpm: 3300, M: 1.4

6214-2RZ

Single row deep groove ball bearings 180214K  70 * 125 * 24 , Cr: 60.309, C0r: 43.684, Grease rpm: 5662, Oil rpm: 8250, M: 1.1

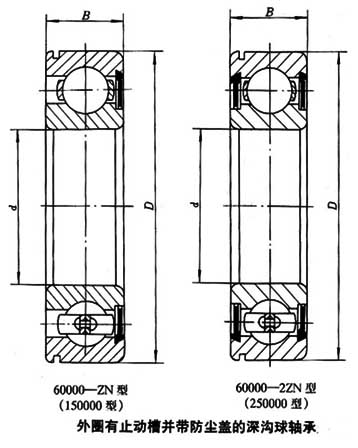

6214-2ZN
