7216-B-JP-UO
Main technical Specifications

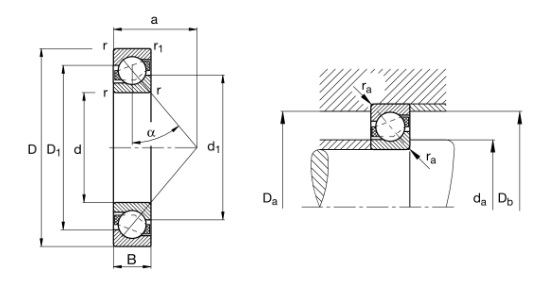

Detailed parameters and installation dimensions:
| Part Number | 7216-B-JP-UO |
| Design Type | B = Modified internal construction |
| Series | 72..-B-XL-JP |
| X-Life | XL |
| Limiting speed (oil) - nG | 6384 min–1 |
| Reference speed (grease) - nB | 4947 min–1 |
| Bearing Mass - m | 1.473 kg | 3.247 lb |
| Reference From | FAG 7216-B-JP-UO |
| Dimension Inside - d φ | 80 mm | 3.150 inch |
| Dimension Outside - D Φ | 140 mm | 5.512 inch |
| Dimension Width - B | 26 mm | 1.024 inch |
| Rows NO. | single |
| Accuracy class | PN |
| Dimension - r(min.) | 2 mm | 0.079 inch |
| Dimension - r1(min.) | 1 mm | 0.039 inch |
| Seal | Open |
| Bearing pair | UO = Universal design for mounting in pairs, bearing pair is clearance-free in O and X arrangement |
| Dimension - D1 | 117.24 mm | 4.616 inch |
| Radial static Capacity - C0r | 71974 N | 16179 lbf |
| Bore Type | Z = Cylindrical Bore |
| Heat stabilization | S0 = up to 150° |
| Dimension - d1 | 102.9 mm | 4.051 inch |
| Dimension - a | 59.2 mm | 2.331 inch |
| Manufacturer Part Code | 7216-B-JP-UO |
| Contact angle - α | 40 ° |
| Mounting dimensions - da(min.) | 91 mm | 3.583 inch |
| Mounting dimensions - Da(max.) | 129 mm | 5.079 inch |
| Mounting dimensions - Db(max.) | 134.4 mm | 5.291 inch |
| Bearing Type | Angular contact ball bearings, single row |
| Mounting dimensions - ra(max.) | 2 mm | 0.079 inch |
| Mounting dimensions - ra1(max.) | 1 mm | 0.039 inch |
| Temperature - T(min) | -30°C |
| Temperature - T(max) | 150°C |
| Ring Material | GCr15SiMn |
| Cage | JP = Stamping steel cage |
| Radial Dynamic Capacity - Cr | 84995 N | 19106 lbf |
| Ball Material | GCr15SiMn |
| Radial Fatigue Capacity - Cur | 4787 N | 1076 lbf |
| Equivalent | 7216-B-JP-UO,7216B.JP.UO |
| Lubricant | Without |
| Tolerance for axial clearance or preload per set - Tol(+) | 12 µm |
The equivalents & Variants model of 7216-B-JP-UO Single row angular contact ball bearings:
7216-B-JP-UO,7216B.JP.UO
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
7216-B-JP-UO refers to a type of 72..-B-XL-JP Angular contact ball bearings, single row, with dimensions 80 mm (Bore) x 140 mm (OD) x 26 mm (Width), designed for High speed, high precision, Low friction and low heat generation, primarily used in Precision machine tools, motors, high-speed spindles, Its normal operating speed can reach: the grease speed ratings: 4947 rpm, oil speed ratings: 6384 rpm, featuring single (row) construction, JP = Stamping steel cage retainer to ensure extended service life, advanced Open, PN (precision) for applications General machinery, automobiles, machine tool spindles, motors, gearbox, robots, precision instruments it's built to handle significant loads (dynamic radial: 84995 N, static radial: 71974 N, ), It weight approximately 1.473 kilogram.
- Min. Order: 1 Piece/(7216-B-JP-UO, 80 = ID, 140 = OD, 26 = B, 1.473 kg) or according to different suppliers
- Price: Different brands, different quality, different 7216-B-JP-UO prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
