BLK 1510-5.6
Precision ball screw
1/2
Main technical Specifications
New Designations :
BLK 1510-5.6
Main demensions :
15 × 34 ×
24
Bore Dia × Outside Dia × Width Dia (mm)
ID :
15 mm
Inside diameter(I.D.)
OD :
34 mm
Outside diameter(O.D.)
T(B) :
24 mm
Thickness(W.D.)
Category :
Precision ball screw

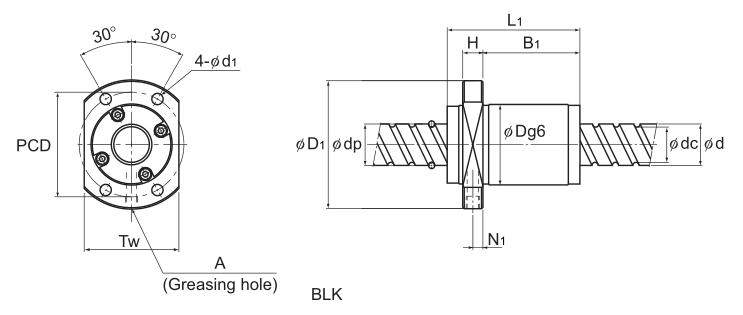

Detailed parameters and installation dimensions:
d: 15 mm, D: 34 mm, B1: 24 mm, Ph: 10 mm, dp: 15.75 mm, dc: 12.5 mm, Rows x turns: 2×2.8 , Ca: 14.3 KN, Coa: 27.8 KN, K: 340 N/μm, D1: 57 mm, L1: 44 mm, H: 10 mm, PCD: 45 mm, d1: 5.5 mm, Tw: 40 mm, N1: 5 mm, A: M6 mm, Nut mass: 0.34 kg, Shaft mass: 0.31 kg/m
Precision ball screw BLK 1510-5.6, (15*34*24 mm), 15 mm d (Bore: diameter of the inner ring), 34 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 24 mm B (Width: nominal width of the bearing),
- Min. Order: 1 Piece/(BLK 1510-5.6, 15 = ID, 34 = OD, 24 = B, kg) or according to different suppliers
- Price: Different brands, different quality, different BLK 1510-5.6 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
