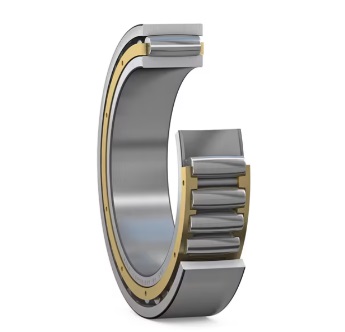

C 31/710 KMB + AOHX 31/710

✨What are the Benefits of choosing C 31/710 KMB + AOHX 31/710 bearings?

• Self-aligning + axial displacement: Simultaneously compensates for 2-3° misalignment and axial thermal expansion, solving two major problems with a single bearing.
• High radial load capacity: Optimized roller design, load capacity comparable to self-aligning roller bearings.
• Eliminates additional stress: Prevents seizure and internal stress, significantly extending bearing life.
• Compact structure: A single set replaces the self-aligning + cylindrical roller combination, saving space and cost.
• The C 31/710 KMB + AOHX 31/710 Toroidal roller bearings adopts a Self-aligning + displacement, high load capacity, long service life design, Reference SKF technology, with dimensions an inner diameter of 670 mm, an outer diameter of 1150 mm, a width of 345 mm, featuring One (row) construction from C 31 series (C 31.. KMB + AOHX) (series), optimal operating temperature is generally -40 to 150 degrees Celsius. With grade precision of PN and a clearance of CN, ensure the equipment operates more stably for applications Heavy, continuously operating equipment with risks of misalignment, significant thermal expansion of the shaft, and the need to withstand heavy loads.

🏭 What are the applications of the C 31/710 KMB + AOHX 31/710 bearing?

• Wind Turbines/Wind Power: Used in wind turbine main shafts and large wind turbines. Absorbs thermal expansion, compensates for misalignment, and prevents jamming.
• Paper Making/Printing: Used in drying drums and calendering rollers. Allows for shaft thermal expansion while maintaining smooth rotation.
• Long Shaft Drives: Used in textile machinery and conveyor equipment. Simultaneously solves shaft deflection and thermal expansion, reducing failure rates.
