DX568126 Tapered Roller Bearings dimensions
New Designations :
DX568126
HS Code :
8482200000
Bearing customs code
OD :
499.999 mm
Outside diameter(O.D.)
T(B) :
135.001 mm
Thickness(W.D.)
Category :
Tapered Roller Bearings

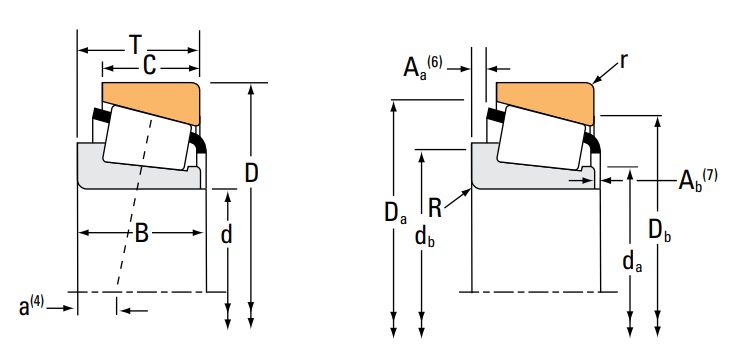

Detailed parameters and installation dimensions:
| Part Number | DX568126 |
| Series | DX568000 |
| Units | Inch |
| Dimension Cup - D Φ | 499.999 mm | 19.6850 inch |
| Dimension Cup Width - C | 135.001 mm | 5.3150 inch |
| Cup Code | DX568126 |
| Load | radial |
| Cup Backface Radius - r | 2.54 mm | 0.1000 inch |
| Coefficient ISO - e | 0.33 |
| Interchangeable | TIMKEN DX568126 |
| Ring Material | GCr15SiMn |
| Cup Frontface Backing - Da | 468.17 mm | 18.4319 inch |
| Cup Backface Backing - Db | 449.07 mm | 17.6799 inch |
| Manufacturer Part Code | DX568126 |
| Bearing type | Single Cups Imperial For Tapered Roller Bearings Single Row |
| Geometry Factor - Cg | 0.201 |
Tapered Roller Bearings DX568126, (-*499.999*135.001 mm), 499.999 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 135.001 mm B (Width: nominal width of the bearing),
- Min. Order: 1 Piece/(DX568126, = ID, 499.999 = OD, 135.001 = B, kg) or according to different suppliers
- Price: Different brands, different quality, different DX568126 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
