HK1212

Needle Roller Bearings

Main technical Specifications

New Designations :
HK1212
Old Code :
67941/12
Main demensions :
12 × 16 × 12
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.0051 kg
Weight
HS Code :
8482400000
Bearing customs code
ID :
12 mm
Inside diameter(I.D.)
OD :
16 mm
Outside diameter(O.D.)
T(B) :
12 mm
Thickness(W.D.)
Cr :
5.3 kN
Radial dynamic load rating
C0r :
7.5 kN
Radial static load rating
Grease rpm :
9500 r/min
Reference speed
Oil rpm :
15000 r/min
Limiting speed
Category :
Needle Roller Bearings

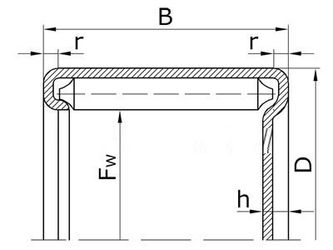

Detailed parameters and installation dimensions:

Fw: 12 mm
D: 16 mm
C: 12 mm
Mass: 0.0051 Kg
Cr: 5.3 kN
Cor: 7.5 kN
Grease rpm: 9500 r/min
Oil rpm: 15000 r/min


Part Number: HK1212
Bearing Type: Needle Roller and Cage Assembly
Size(metric): Inner dia. (d): 12 mm X Outer dia. (D): 18 mm X Width (B): 12 mm or Size: 12 mm * 18 mm * 12 mm
Original Equipment Manufacture(OEM NO.): HK1212
Seals Type: No Seal

Needle Roller Bearings HK1212, 0.0051 kg Bearing mass,  (12*16*12 mm),  12 mm d (Bore: diameter of the inner ring),  16 mm D (Outside: diameter of the outer cylindrical surface of the outer ring),  12 mm B (Width: nominal width of the bearing),  5300 N radial dynamic load capacity (Dyn. Cr),  7500 N radial static load capacity (Stat. Cor),  9500 r/min Maximum RPM (Speed in grease),  15000 r/min Maximum RPM (Speed in oil)

  • Min. Order: 1 Piece/(HK1212, 12 = ID, 16 = OD, 12 = B, 0.0051 kg) or according to different suppliers
  • Price: There are multiple professional bearing manufacturers and suppliers in China that offer HK1212. Sending an inquiry will get you quotes from multiple suppliers, allowing you to compare prices, quality, and service to find the most affordable option for HK1212 bearing.
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Reference From INA (Schaeffler) HK1212 Bearing, Needle Roller, Drawn Cup - Open Ends, 12 mm id x 18 mm OD x 12 mm B;
Manufacturer Part Code: HK1212 DRAWN CUP NEEDLE BEARING;
Dimension Inside - id φ: 12 mm;
Dimension Outside - OD Φ: 18 mm;
Dimension Width - B: 12 mm;
Drawn Cup Type: Open Ends;
Type of Closure: Open;
NO. of Rows: One;
Operation Temp Range: Max of +140 °C;
Radial (Dyn.load Cr): 1460 lbf;
Radial (Stat.load Cor): 1640 lbf;
Material of Cage: Steel;
Limiting speed (RPM): 19000 RPM;
Running Accuracy Class: Not Rated;
Bearing Series: HK;
Hole Type: No Hole;
Standards: DIN 618-1/ISO 3245;
Compatible Inner Ring: IR 8x12x12.5;
Bearing Mass (M): 0.02 lbs

Запрос на подшипники SNF515, SNF522, SNF512, SNF510 D45

Здравствуйте! Просим Вас предоставить коммерческое предложение на подшипники : 1. Подшипник пьедестала SNF515 с уплотнением FS, La. 22215.K/H 315, фиксированное кольцо кол-во: 2 шт. 2. Подшипник пьедестала SNF522 с уплотнением FS, La 22222.K/H 322,фиксир. кольцо кол-во: 2 шт.

Comments

  1. Wafangdian AA Bearing Trade Co.,Ltd
    Email: [email protected] Tel: 86-159-06428604 2021-12-05

    HK1212 Needle Roller Bearing, HK Series, Drawn Cup, 12 mm = Bore (d), 18 mm = D, 12 mm = B, 6500 N = Radial Dyn. (Cr), 7300 N = Radial Stat. (C0r), 860 N = Fatigue; Brand: Interchangeable From INA HK1212 or OEM;
    Material Of Cage = Steel;
    Seal Close Type = Open;
    Max speed (1/min) = 20000 rpm;
    Bearing Series = HK Series;
    Operating Temperature Range = 140 °C;
    Bore Dia. (d) = 12 mm;
    Outside Dia. (D) = 18 mm;
    Number of Rows = 1;
    Width (B) = 12 mm;
    Load Rating = 6500 N Dynamic Load Radial Direction, 7300 N Static Load Radial Direction, 860 N Fatigue Load Limit

  2. Shandong Linqing DEO Bearing Co.,Ltd
    Email: [email protected] Tel: 86-199-54215210 2019-03-27

    TIMKEN HK1212 79 ea A large stock in our factory exporting to oversea .we can supply such series.the technical indexes of products in our company are qualified with national standard. There are our badvantages:
    1. own factory
    2. accept oem
    3. large stock
    4. your trustworthy professional bearing factory
    MSF35 RRS AR3P5 RHP,NSK brand 62 ea
    TIMKEN 66462B 45 ea
    22220EAKE4 ***H* RHP,NSK brand 44 ea
    TIMKEN IR-566432 48 ea
    TIMKEN HM231149-90099 76 ea
    BK3020 INA brand 57 ea

Leave A Comment

Other models the same size : 12x16x12

1R12X16X12

Needle Bearings Inner Ring   12 * 16 * 12 , Cr: , C0r: ,

MFJT-1212

   12 * 16 * 12 , Cr: 4.15, C0r: , Oil rpm: 15000, M: 0.0055

FJT-1212

   12 * 16 * 12 , Cr: 4.15, C0r: , Oil rpm: 15000, M: 0.0051

MF-1212

   12 * 16 * 12 , Cr: 7.95, C0r: , Oil rpm: 5000, M: 0.0068

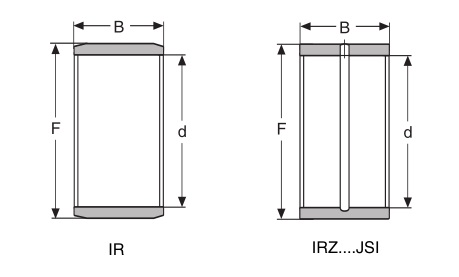

IR-12 x 16 x 12
