MA1213 Single row cylindrical roller bearings dimensions

MA1213

New Designations :
MA1213
Main demensions :
65 × 80.421 × 23
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.04 kg
Weight
HS Code :
8482500090
Bearing customs code
ID :
65 mm
Inside diameter(I.D.)
OD :
80.421 mm
Outside diameter(O.D.)
T(B) :
23 mm
Thickness(W.D.)
Category :

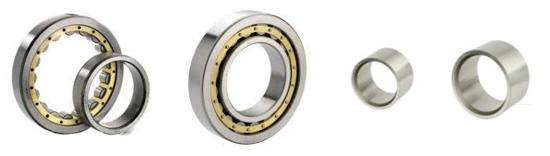

Single row cylindrical roller bearings

Detailed parameters and installation dimensions:

ID: 2.559 inch, OD: 3.166 inch, T/B: 0.906 inch, Cage - Material: Not Applicable

Part Number: MA1213 Link-Belt
Bearing Type: Cylindrical Roller Bearings, Single Row
Bearing Size (metric): Bore Dia. (d): 65,00 mm X Outer dia. (D): 120,00 mm X Width (B): 23,00 mm or Size: 65,00 mm * 120,00 mm * 23,00 mm
Original Equipment Manufacture(OEM NO.): MA1213
Bore: C (Cylindrical Bore)
Seals Type: No Seal
Cage Design: S (Steel or Standard Cage)
Radial internal clearance: Cn (Normal Internal clearance)
Precision Rating: Standard class precision
Thermal Stability: No Thermal Stability - Temperatures up to 120°C

Single row cylindrical roller bearings MA1213,  1.04 kg Bearing mass,  (65*80.421*23 mm),  65 mm d (Bore: diameter of the inner ring),  80.421 mm D (Outside: diameter of the outer cylindrical surface of the outer ring),  23 mm B (Width: nominal width of the bearing),

  • Min. Order: 1 Piece/(MA1213, 65 = ID, 80.421 = OD, 23 = B, 1.04 kg) or according to different suppliers
  • Price: Different brands, different quality, different MA1213 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Reference From NTN MA1213 Bearing, Cylindrical Roller - Cylindrical Bore, 65 mm id x 3.1661 inch OD x 23 mm B, CN Normal Internal Clearance;
Manufacturer Part Code: MA1213;
Dimension Inside - id φ: 65 mm;
Dimension Outside - OD Φ: 3.1661 inch;
Dimension Width - B: 23 mm;
Flanges: No Flange;
Type Of Bore: Cylindrical Bore;
NO. of Rows: 1;
Radial Internal Play: CN;
Ring Separation: Separable Inner Ring;
Operation Temp Range: -40 to 120 ºC;
Running Accuracy Class: ISO Class 0 (DIN P0);
Material of Bearing: Hardened Alloy Steel;
Material of Cage: None;
Surface Coating: NO;
Type of Closure: Open;
Fillet Radius(ra): 2.54 mm;
Bearing Mass (M): 0.67 lbs;

заявка подшипники 695Z, 696х1Z

Прошу Вас выставить счет на подшипники: 1. 695Z (внутри - 5 мм., наруж.-12 мм., ширина 4 мм.) – 1 шт.

Comments

  1. Wafangdian AA Bearing Trade Co.,Ltd
    Email: sales@spainbearing.com Tel: 86-159-06428604 2021-11-21

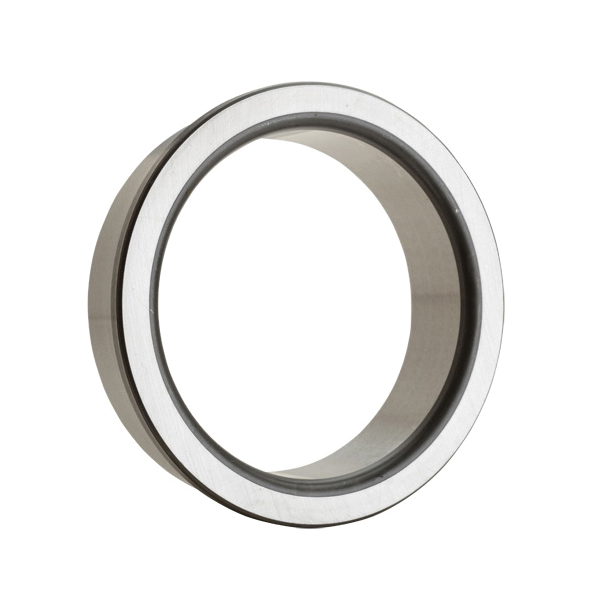

    MA1213 Plain Separable Inner Ring, M Series, 65 mm = d, 80.42 mm = D, 23 mm = B, For 1213 Cylindrical Roller Bearings; Brand: Interchangeable From Bower MA1213 or OEM;
    Bore Type = Straight Bore;
    Bearing Series = M Series;
    Feature = Plain Separable;
    Bore Dia. (d) = 65 mm;
    Outside Dia. (D) = 80.42 mm;
    The Total Width (B) = 23 mm;
    Suitable for = 1213 Cylindrical Roller Bearings;
    Material = Hardened Alloy Steel
