N226

Bore
130 mm
Outer
230 mm
Width
40 mm
Wight
6.48 kg
Standard cylindrical roller bearings, N type, single row
It has extremely high radial load capacity, good rigidity and impact resistance, and is suitable for high-speed and heavy-duty applications such as motors, gearboxes and machine tool spindles.

Main technical Specifications

New Designations :
N226
Old Code :
2226
Main demensions :
130 × 230 × 40
Bore Dia × Outside Dia × Width Dia (mm)
M :
6.48 kg
Weight
HS Code :
8482500090
Bearing customs code
ID :
130 mm
Inside diameter(I.D.)
OD :
230 mm
Outside diameter(O.D.)
T(B) :
40 mm
Thickness(W.D.)
Cr :
265.255 kN
Radial dynamic load rating
C0r :
338.314 kN
Radial static load rating
Grease rpm :
2555 r/min
Reference speed
Oil rpm :
3119 r/min
Limiting speed
Category :
Single row cylindrical roller bearings

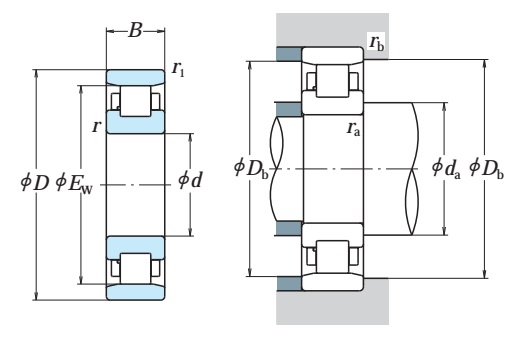

Detailed parameters and installation dimensions:

Part Number N226
Radial Internal Clearance C0
Series N2 series (N2..)
Temperature - T(min) -40 °C
Temperature - T(max) 120 °C
Type N
Seal Open
Fillet Radius - ra max 2.5 mm | 0.0984 inch
Fillet Radius - rb max 2.5 mm | 0.0984 inch
Raceway diameter of outer ring - EW 204 mm | 8.0315 inch
Bore Cylindrical
Units Metric
Rows NO. single
Dimension Chamfer - r min 3 mm | 0.1181 inch
Dimension Chamfer - r1 min 3 mm
Bearing Type Standard cylindrical roller bearings, N type, single row
Cage Machined Brass Cages
Interchangeable NSK N226
Radial Dynamic Capacity - Cr 265255 N | 59629 lbf
Radial Static Capacity - C0r 338314 N | 76052 lbf
Tolerance class P0 (ABEC-1)
Abutment Dimensions Housing - Db min 208 mm | 8.1890 inch
Abutment Dimensions Housing - Db max 217 mm | 8.5433 inch
Abutment Dimensions Shaft - da min 143 mm | 5.6299 inch
Rolling Element Material GCr15SiMn
Inner/Outer Ring Material GCr15SiMn
Load radial
Dimension Inside - d φ 130 mm | 5.1181 inch
Dimension Outside - D Φ 230 mm | 9.0551 inch
Dimension Width - B 40 mm | 1.5748 inch
Speed ratings (grease) - nB 2555 min–1
Speed ratings (oil) - nG 3119 min–1
Dimensional Series 2 = light duty type
Equivalent N 226
Bearing Mass - m 6.48 kg | 14.2858 lb

The equivalents & Variants model of N226 Single row cylindrical roller bearings:

NTN N226 , NACHI N226 , RHP N226 , NSK N226 , KOYO N226 , SKF N226 , FAG N226 , MAC N226 , STEYR N226 , FLT N226 , ZKL N226B , MRC MR226C , RIV 21DAPV ,

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

N226 refers to a type of N2 series (N2..) Standard cylindrical roller bearings, N type, single row, with dimensions 130 mm (Bore) x 230 mm (OD) x 40 mm (Width), designed for High radial load capacity and high speed performance, primarily used in Motors, machine tools, gearboxes, Its normal operating speed can reach: the grease speed ratings: 2555 rpm, oil speed ratings: 3119 rpm, featuring single (row) construction, Machined Brass Cages retainer to ensure extended service life, advanced Open, P0 (ABEC-1) (precision) for applications involving high radial loads, high speeds, and the pursuit of high rotational accuracy, rigid radial support is provided for the shaft.. it's built to handle significant loads (dynamic radial: 265255 N, static radial: 338314 N, ), It weight approximately 6.48 kilogram.

  • Min. Order: 1 Piece/(N226, 130 = ID, 230 = OD, 40 = B, 6.48 kg) or according to different suppliers
  • Price: There are multiple professional bearing manufacturers and suppliers in China that offer N226. Sending an inquiry will get you quotes from multiple suppliers, allowing you to compare prices, quality, and service to find the most affordable option for N226 bearing.
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

N226 Bearing, N2 Series, Cylindrical Roller, 130 mm = Bore (d), 230 mm = D, 40 mm = B, 340000 N = Load Capacity; Brand: Interchangeable From NTN N226 or OEM;
Material Of Bearing: Hardened Alloy Steel
Material Of Cage: Pressed Steel
Seal Close Type: Open
Max speed: 2900 rpm Reference speed 1/min (Grease), 3400 rpm Limiting speed 1/min (Oil)
Bearing Series: N2 Series
Operating Temperature Range: -40 to 120 °C
Bore Dia. (d): 130 mm
Outside Dia. (D): 230 mm
NO. of Rows: 1
Width (B): 40 mm
Load Rating: 340000 N

Quotation RB spherical 22312 CC, 22317 CCK/W33/C3, 22311 CCK/C3

Dear Sir/ Ma’am, Hope you will be fine. Please arrange the quotation of given items bellow as soon as possible 1: RB spherical 22312 CC (Q) 10 2: RB spherical 22317 CCK/W33/C3 (Q) 4 3: RB spherical 22311 CCK/C3 (Q) 10 4: RB spherical 22218 EK + 113 1 8 (Q) 4

✨What are the Benefits of choosing N226 bearings?

  • High radial load capacity: The rollers and raceways have line contact, resulting in a rated radial load significantly higher than that of ball bearings of the same size.
  • Good high-speed performance: Generally employs machined or stamped cages, resulting in low friction and suitability for high-speed operation.
  • High rigidity: Minimal elastic deformation effectively supports the shaft and housing, improving the rigidity of the transmission system.
  • Separable design: The inner ring (with roller cage) is separable from the outer ring, facilitating installation, disassembly, and maintenance.
  • Axial displacement adaptability: Types without inner ring flanges (such as NU and N types) allow for free axial expansion and contraction of the shaft relative to the housing, addressing thermal expansion issues.
  • Compact structure: Small cross-sectional height saves radial space.
  • The N226 Single row cylindrical roller bearings adopts a High radial load capacity and high speed performance design, Reference NSK technology, with dimensions an inner diameter of 130 mm, an outer diameter of 230 mm, a width of 40 mm, featuring single (row) construction from N2 series (N2..) (series), optimal operating temperature is generally -40 to 120 degrees Celsius. With grade precision of P0 (ABEC-1) and a clearance of C0, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:2555 Limit Speed Ratings (oil) rpm:3119)for applications involving high radial loads, high speeds, and the pursuit of high rotational accuracy, rigid radial support is provided for the shaft.

🏭 What are the applications of the N226 bearing?

  • Electric Motors and Generators: Support high speeds and reduce frictional temperature rise.
  • Gearboxes: Withstand high radial loads and improve transmission rigidity.
  • Pumps and Compressors: Ensure stable rotor operation and extend service life.
  • Metallurgical Equipment: Resistant to heavy loads and impacts, adaptable to high-temperature conditions.
  • Mining Machinery: Resistant to vibration and dust, maintaining continuous operation.
  • Wind Power Equipment: Reliably transmits torque and adapts to variable speed and load conditions.
  • Rail Transportation: Withstands heavy vehicle loads and ensures safe operation.
  • Machine Tools: Provides high-rigidity support to ensure machining accuracy.
  • Paper Machinery: Maintains roller stability and improves paper quality.
  • Conveying Equipment: Bears continuous loads and reduces downtime for maintenance.

Comments

  1. Wafangdian AA Bearing Trade Co.,Ltd
    Email: [email protected] Tel: 86-159-06428604 2021-12-05

    N226 Cylindrical Roller Bearing, Single Row 130x230x40mm;
    Bore Diameter (id) = 130mm; Outside Diameter (OD) = 230mm; Width (B) = 40mm; Dynamic Load Of Radial (Cr) = 415 kN; Static Load Of Radial (C0r) = 455 kN; Pu = 51 kN; Reference Speed For Grease = 3200 rpm; Maximum Speed RPM = 3400 rpm; Bearing Mass = 6.3 kg; d1 = 164mm; F, E = 209.5mm; r1r2 min = 3mm; r3r4 min = 3mm; s = 2.1mm; da min = 144mm; da max = 206mm; db min = 213mm; Da max = 216mm; ra max = 2.5mm; rb max = 2.5mm; kr = 0.15

  2. tradebearings
    Email: [email protected] Tel: 86-0578-18167086030 2020-03-26

    Hello, Im looking for this bearing and I need 2 of N226 bearing. How or where can i get them? and how much shipped to Kuwait. Thank you.

    I have a purchase Bering
    Need to get some bearings

    21 Bearing 311 6311 SKF pcs 2
    22 Bearing 313 6313 SKF pcs 10
    23 Bearing 316 6316 NTN pcs 4
    24 Bearing 317 6317 FAG pcs 4
    25 Bearing 1608 2308 NSK pcs 10
    26 Bearing 2226 N 226 NSK pcs 4

Leave A Comment

Other models the same size : 130x230x40

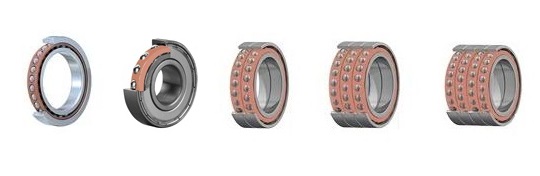

7226BMPC
