NJ1080

Bore
400 mm
Outer
600 mm
Width
90 mm
Wight
91 kg
Cylindrical Roller Bearings NJ Design, Single Row
It has extremely high radial load capacity, good rigidity and impact resistance, and is suitable for high-speed and heavy-duty applications such as motors, gearboxes and machine tool spindles.

Main technical Specifications

New Designations :
NJ1080
Old Code :
42180
Main demensions :
400 × 600 × 90
Bore Dia × Outside Dia × Width Dia (mm)
M :
91 kg
Weight
HS Code :
8482500090
Bearing customs code
ID :
400 mm
Inside diameter(I.D.)
OD :
600 mm
Outside diameter(O.D.)
T(B) :
90 mm
Thickness(W.D.)
Cr :
1320 kN
Radial dynamic load rating
C0r :
2190 kN
Radial static load rating
Grease rpm :
990 r/min
Reference speed
Oil rpm :
1200 r/min
Limiting speed
Category :
Single row cylindrical roller bearings

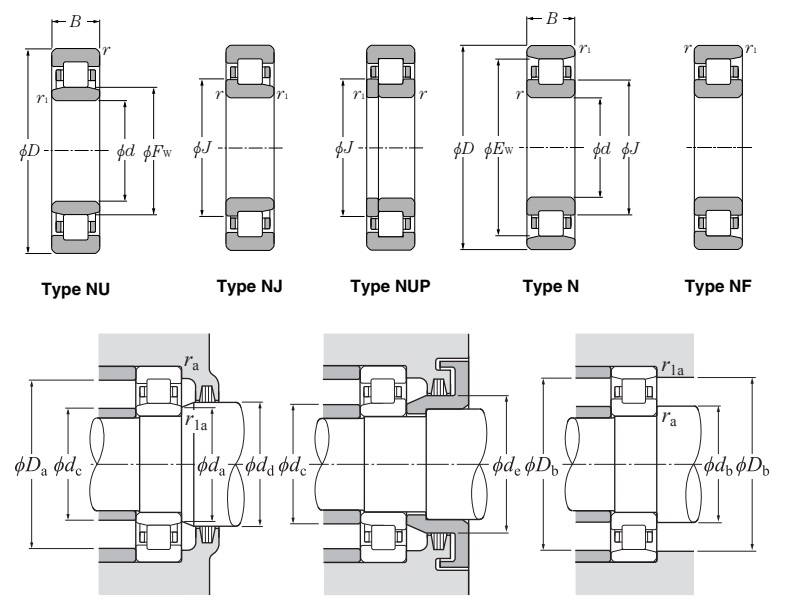

Detailed parameters and installation dimensions:

Part Number NJ1080
Precision P0 (ISO Class NORMAL / ABEC-1)
Seal Open
Series NJ10 series (NJ10..)
Oil Hole w/o Oil Hole
Load radial
Dimension Inside - d φ 400 mm | 15.748 inch
Dimension Outside - D Φ 600 mm | 23.622 inch
Dimension Width - B 90 mm | 3.543 inch
Inner/Outer Ring Material Hardened Alloy Steel
Rolling Element Material Hardened Alloy Steel
Temperature - T(min) -40 °F
Temperature - T(max) 250 °F
Temperature - T(min) -40 °C
Temperature - T(max) 120 °C
Interchangeable NTN NJ1080
Cage Machined cage
Bore Type Cylindrical
Radial Dynamic Capacity - Cr 1320000 N | 296736 lbf
Radial Static Capacity - C0r 2190000 N | 492312 lbf
Fatigue load load - Cu 164000 N | 36867 lbf
Speed ratings (grease) - nB 990 r/min
Speed ratings (oil) - nG 1200 r/min
Bearing Type Cylindrical Roller Bearings NJ Design, Single Row
Rows NO. One
Dimension Chamfer - rs min. 5 mm
Dimension Chamfer - r1s min. 5 mm | 0.197 inch
Raceway inner ring diameter - Fw 450 mm | 17.716 inch
Type NJ
Units Metric
Radial Internal Clearance CN
IR flange outer - J 470 mm | 18.504 inch
Mounting dimensions shaft - da min 420 mm | 16.535 inch
Mounting dimensions shaft - db min 420 mm | 16.535 inch
Mounting dimensions shaft - dc max 446 mm | 17.559 inch
Mounting dimensions shaft - de min 473 mm | 18.622 inch
Mounting dimensions housing - Da max 580 mm | 22.835 inch
Mounting dimensions housing - Db max 580 mm | 22.835 inch
Mounting dimensions housing - Db min 554 mm | 21.811 inch
Fillet radius - ras max 4 mm | 0.157 inch
Fillet radius - r1as max 4 mm | 0.157 inch

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

NJ1080 refers to a type of NJ10 series (NJ10..) large Cylindrical Roller Bearings NJ Design, Single Row, with dimensions 400 mm (Bore) x 600 mm (OD) x 90 mm (Width), designed for High radial load capacity and high speed performance, primarily used in Motors, machine tools, gearboxes, Its normal operating speed can reach: the grease speed ratings: 990 rpm, oil speed ratings: 1200 rpm, featuring One (row) construction, Machined cage retainer to ensure extended service life, advanced Open, P0 (ISO Class NORMAL / ABEC-1) (precision) for applications involving high radial loads, high speeds, and the pursuit of high rotational accuracy, rigid radial support is provided for the shaft.. it's built to handle significant loads (dynamic radial: 1320000 N, static radial: 2190000 N, ), It weight approximately 91 kilogram.

  • Min. Order: 1 Piece/(NJ1080, 400 = ID, 600 = OD, 90 = B, 91 kg) or according to different suppliers
  • Price: Different brands, different quality, different NJ1080 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

RFQ 65BC03J30X- BEARING

65BC03J30X- BEARING BEARING, P/N:65BC03J30X, USED IN SOLAR STARTING MOTOR, MODEL: Z36G7801, FRAME SIZE: X 365TDZ, HP: 125, VOLTS: 380, PHASE: 3, DESIGN: A, TYPE: P, RPM: 3570, AMPS: 168, HZ: 6-60, SF: 1.00, ENCL: TEFC, CODE: K, INS. CLASS: F, ODE BEARING: 65BC03J30X

✨What are the Benefits of choosing NJ1080 bearings?

  • High radial load capacity: The rollers and raceways have line contact, resulting in a rated radial load significantly higher than that of ball bearings of the same size.
  • Good high-speed performance: Generally employs machined or stamped cages, resulting in low friction and suitability for high-speed operation.
  • High rigidity: Minimal elastic deformation effectively supports the shaft and housing, improving the rigidity of the transmission system.
  • Separable design: The inner ring (with roller cage) is separable from the outer ring, facilitating installation, disassembly, and maintenance.
  • Axial displacement adaptability: Types without inner ring flanges (such as NU and N types) allow for free axial expansion and contraction of the shaft relative to the housing, addressing thermal expansion issues.
  • Compact structure: Small cross-sectional height saves radial space.
  • The NJ1080 Single row cylindrical roller bearings adopts a High radial load capacity and high speed performance design, Reference NTN technology, with dimensions an inner diameter of 400 mm, an outer diameter of 600 mm, a width of 90 mm, featuring One (row) construction from NJ10 series (NJ10..) (series), optimal operating temperature is generally -40 to 120 degrees Celsius. With grade precision of P0 (ISO Class NORMAL / ABEC-1) and a clearance of CN, ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:990 Limit Speed Ratings (oil) rpm:1200)for applications involving high radial loads, high speeds, and the pursuit of high rotational accuracy, rigid radial support is provided for the shaft.

🏭 What are the applications of the NJ1080 bearing?

  • Electric Motors and Generators: Support high speeds and reduce frictional temperature rise.
  • Gearboxes: Withstand high radial loads and improve transmission rigidity.
  • Pumps and Compressors: Ensure stable rotor operation and extend service life.
  • Metallurgical Equipment: Resistant to heavy loads and impacts, adaptable to high-temperature conditions.
  • Mining Machinery: Resistant to vibration and dust, maintaining continuous operation.
  • Wind Power Equipment: Reliably transmits torque and adapts to variable speed and load conditions.
  • Rail Transportation: Withstands heavy vehicle loads and ensures safe operation.
  • Machine Tools: Provides high-rigidity support to ensure machining accuracy.
  • Paper Machinery: Maintains roller stability and improves paper quality.
  • Conveying Equipment: Bears continuous loads and reduces downtime for maintenance.

Leave A Comment

Other models the same size : 400x600x90

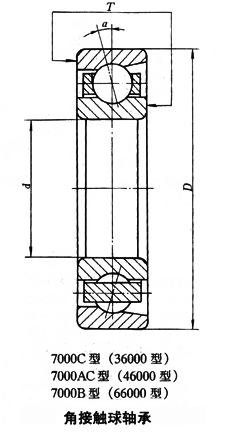

7080AC

Single row angular contact ball bearings 46180  400 * 600 * 90 , Cr: 544.5, C0r: 1062, Grease rpm: 750, Oil rpm: 1000, M: 90.5

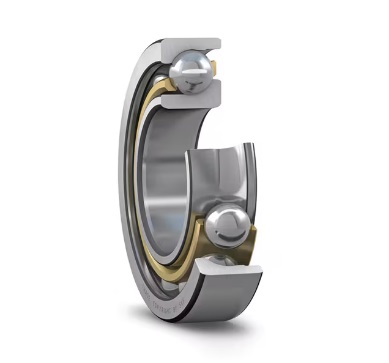

7080 AM

Single row angular contact ball bearings 7080AM  400 * 600 * 90 , Cr: 604.783, C0r: 1179.795, Grease rpm: 1087, Oil rpm: 1099, M: 90.5

7080 BM

Single row angular contact ball bearings 7080BM  400 * 600 * 90 , Cr: 539.896, C0r: 1059.981, Grease rpm: 993, Oil rpm: 999, M: 90.5

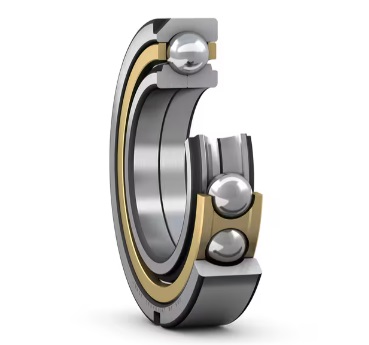

QJ 1080 N2MA

Four-point contact ball bearings   400 * 600 * 90 , Cr: 902.964, C0r: 2158.613, Oil rpm: 1364, M: 95

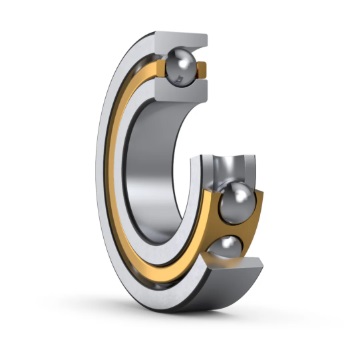

7080A
