NKIS 20 Needle Roller Bearing dimensions
New Designations :
NKIS 20
Main demensions :
20 × 42 ×
20
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.119 kg
Weight
HS Code :
8482400000
Bearing customs code
ID :
20 mm
Inside diameter(I.D.)
OD :
42 mm
Outside diameter(O.D.)
T(B) :
20 mm
Thickness(W.D.)
C :
26.5 kN
Radial dynamic load rating
C0 :
35.5 kN
Radial static load rating
Grease rpm :
13000 r/min
Reference speed
Oil rpm :
14000 r/min
Limiting speed
Category :
Needle Roller Bearing

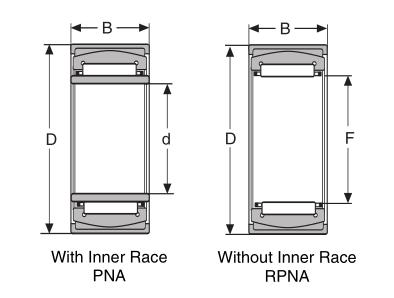

Detailed parameters and installation dimensions:
d: 20 mm
Fw: 28 mm
D: 42 mm
C: 20 mm
Mass: 0.119 Kg
Cr: 26.5 kN
Cor: 35.5 kN
Oil rpm: 14 000 r/min
Needle Roller Bearing NKIS 20, 0.119 kg Bearing mass, (20*42*20 mm), 20 mm d (Bore: diameter of the inner ring), 42 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 20 mm B (Width: nominal width of the bearing), 26500 N radial dynamic load capacity (Dyn. Cr), 35500 N radial static load capacity (Stat. Cor), 13000 r/min Maximum RPM (Speed in grease), 14000 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(NKIS 20, 20 = ID, 42 = OD, 20 = B, 0.119 kg) or according to different suppliers
- Price: Different brands, different quality, different NKIS 20 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
