NU2215E
Cylindrical Roller Bearings
Main technical Specifications
New Designations :
NU2215E
Old Code :
NU2215

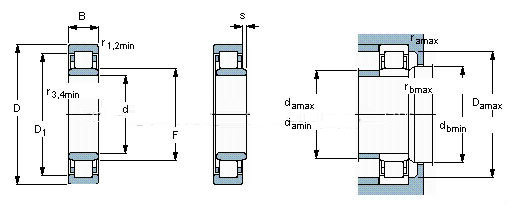

Main demensions :
75 × 130 ×
31
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.79 kg
Weight
ID :
75 mm
Inside diameter(I.D.)
OD :
130 mm
Outside diameter(O.D.)
T(B) :
31 mm
Thickness(W.D.)
Cr :
162 kN
Radial dynamic load rating
C0r :
207 kN
Radial static load rating
Grease rpm :
4200 r/min
Reference speed
Oil rpm :
4900 r/min
Limiting speed
Interchangeable :
NTN
Category :
Cylindrical Roller Bearings
Cylindrical Roller Bearings NU2215E, 1.79 kg Bearing mass, (75*130*31 mm), 75 mm d (Bore: diameter of the inner ring), 130 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 31 mm B (Width: nominal width of the bearing), 162000 N radial dynamic load capacity (Dyn. Cr), 207000 N radial static load capacity (Stat. Cor), 4200 r/min Maximum RPM (Speed in grease), 4900 r/min Maximum RPM (Speed in oil)
- Min. Order: 1 Piece/(NU2215E, 75 = ID, 130 = OD, 31 = B, 1.79 kg) or according to different suppliers
- Price: Different brands, different quality, different NU2215E prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
