R10Z

Bore
15.875 mm
Outer
34.925 mm
Width
8.738 mm
Wight
0.038 kg
Inch size miniature ball bearings
High speed, precision, and low noise; mainly used in precision equipment such as micro motors, medical devices, and industrial robots.

Main technical Specifications

New Designations :
R10Z
Main demensions :
15.875 × 34.925 × 8.738
Bore Dia × Outside Dia × Width Dia (mm)
M :
0.038 kg
Weight
HS Code :
8482102000
Bearing customs code
ID :
15.875 mm
Inside diameter(I.D.)
OD :
34.925 mm
Outside diameter(O.D.)
T(B) :
8.738 mm
Thickness(W.D.)
Category :
Inch size miniature ball bearings

Detailed parameters and installation dimensions:

ID: 0.625 inch, OD: 1.375 inch, T/B: 0.344 inch, Seals type: 1 Metal Shield, Precision: ABEC 1 | ISO P0, Maximum Capacity / Filling Slot: No, Rolling Element: Ball Bearing

Part Number: R10Z WIB
Technical description (Z): Z=Shield Of Pressed Sheet Steel On One Side Of The Bearing.
Bearing Type: Deep Groove Ball Bearings, Single Row
Bearing Size (metric): Bore Dia. (d): 15,88 mm X Outer dia. (D): 34,93 mm X Width (B): 8,73 mm or Size: 15,88 mm * 34,93 mm * 8,73 mm
Size(inch): Bore Dia. (d): 0.6250 Inch X Outer dia. (D): 1.3750 Inch X Width (B): 0.3438 Inch or Size: 0.6250 Inch * 1.3750 Inch * 0.3438 Inch
Original Equipment Manufacture(OEM NO.): R10Z
Bore: C (Cylindrical Bore)
Seals Type: Z - Steel Seal on One Side
Cage Design: S (Steel or Standard Cage)
Radial internal clearance: Cn (Normal Internal clearance)
Precision Rating: Standard class precision
Type of lubrication: Standard class lubrication
Thermal Stability: No Thermal Stability - Temperatures up to 120°C

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

R10Z refers to a type of Inch size miniature ball bearings, with dimensions 15.875 mm (Bore) x 34.925 mm (OD) x 8.738 mm (Width), designed for High precision, small size, low friction, primarily used in Miniature motors, dental drills, precision instruments, models, for applications Within an extremely limited space, it provides high-precision, low-friction, high-speed support for rotating or reciprocating components, while simultaneously bearing certain radial and axial loads. It weight approximately 0.038 kilogram.

  • Min. Order: 1 Piece/(R10Z, 15.875 = ID, 34.925 = OD, 8.738 = B, 0.038 kg) or according to different suppliers
  • Price: Different brands, different quality, different R10Z prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Reference From NSK R10Z Bearing, Deep Groove Ball, Radial, Cylindrical Bore, 0.6250 inch id x 1.3750 inch OD x 0.3438 inch B, Single Sealed;
Manufacturer Part Code: R 10 Z;
Dimension Inside - id φ: 0.6250 inch;
Dimension Outside - OD Φ: 1.3750 inch;
Dimension Width - B: 0.3438 inch;
Type Of Bore: Cylindrical Bore;
Type of Closure: Single Sealed;
Number of Rows: One Rows;
Snap Ring: Without;
Radial Internal Play: C0;
Operation Temp Range: -10 to +110 °C;
Radial (Dyn.load Cr): 1340 lb;
Radial (Stat.load Cor): 728 lbs;
Running Accuracy Class: Not Rated;
Surface Coating: NO;
Material of Cage: Steel;
Width Of Outer Ring: 0.2812 inch;
Fillet Radius(ra): 0.8 mm;
Limiting speed (1/min): 22000 RPM;
Bearing Series: R;
Bearing Mass (M): 0.07 lbs;

Enquiry Needle (roller) bearing K 16x22x20

Dear Madam/Sir, Could you please send your business proposal for the next article. We need 250 – 500 pcs. Needle (roller) bearing K 16x22x20

✨What are the Benefits of choosing R10Z bearings?

  • Minimal Size: Inner diameter can be as small as 1 mm or even smaller, saving installation space and suitable for micro motors and instruments.
  • Ultra-High Speed: Optimized design enables extremely high limiting speeds and extremely low heat generation.
  • Low Friction Torque: Minimal starting and running friction torque, high sensitivity, ensuring precise control.
  • Low Noise and Vibration: Precision machining ensures smooth and quiet operation, suitable for precision instruments.
  • Long Lifespan: Utilizing high-quality materials and processes guarantees stable operation over extended periods.
  • The R10Z Inch size miniature ball bearings adopts a High precision, small size, low friction design, with dimensions an inner diameter of 15.875 mm, an outer diameter of 34.925 mm, a width of 8.738 mm, ensure the equipment operates more stably for applications Within an extremely limited space, it provides high-precision, low-friction, high-speed support for rotating or reciprocating components, while simultaneously bearing certain radial and axial loads.

🏭 What are the applications of the R10Z bearing?

  • Medical/Dental: Used in dental drills, surgical instruments, and analytical instruments. Ultra-high speed and low friction ensure precise control and stability.
  • Precision Instruments: Used in measuring equipment, encoders, and optical instruments. Extremely low vibration and high sensitivity guarantee measurement accuracy.
  • Motors/Models: Used in miniature motors, cooling fans, drones, and remote-controlled models. Extremely small size and low noise allow for high-speed rotation.
  • Office/Home Appliances: Used in hard drives, printer motors, and robotic vacuum cleaners. Long lifespan and low friction torque ensure stable and quiet operation.

Leave A Comment

Other models the same size : 15.875x34.925x8.738

R10ZZST

Inch size miniature ball bearings   15.875 * 34.925 * 8.738

R10FF

Inch size miniature ball bearings   15.875 * 34.925 * 8.738 M: 0.038

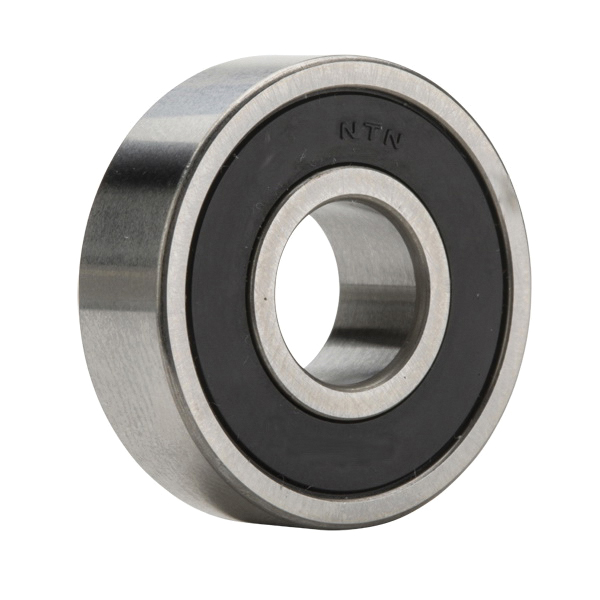

R10LLBC3

Inch size miniature ball bearings   15.875 * 34.925 * 8.738

R10VVC3

Inch size miniature ball bearings   15.875 * 34.925 * 8.738

R10ZC3

Inch size miniature ball bearings   15.875 * 34.925 * 8.738

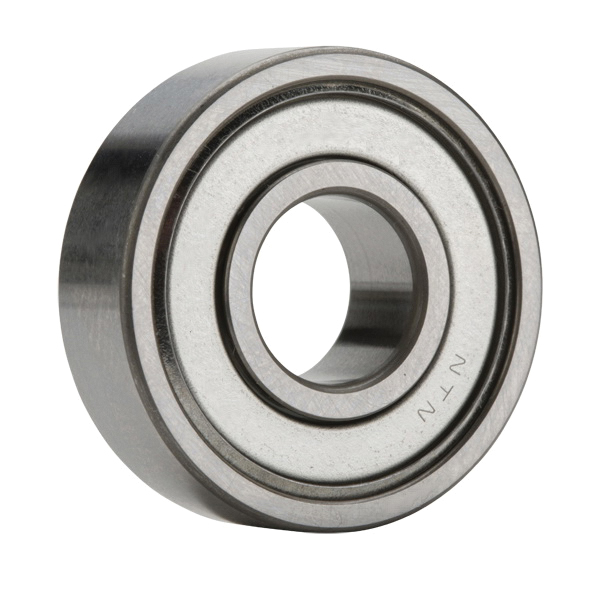

R10ZZC3
