RU124X

Bore
80 mm
Outer
165 mm
Width
22 mm
Wight
2.6 kg

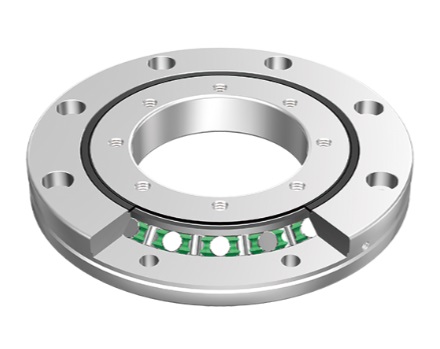

Mounting holed type Cross-Roller Ring Model RU with separators
Its compact structure and high rigidity, it can simultaneously withstand radial, axial and tilting moments load; it is mainly used in precision rotating parts of industrial robots, machine tool rotary tables, and medical equipment that require compact and high-rigidity rotation.

Main technical Specifications

New Designations :
RU124X
Main demensions :
80 × 165 × 22
Bore Dia × Outside Dia × Width Dia (mm)
M :
2.6 kg
Weight
ID :
80 mm
Inside diameter(I.D.)
OD :
165 mm
Outside diameter(O.D.)
T(B) :
22 mm
Thickness(W.D.)
Cr :
33.1 kN
Radial dynamic load rating
C0r :
50.9 kN
Radial static load rating
Category :
Crossed Roller Bearings

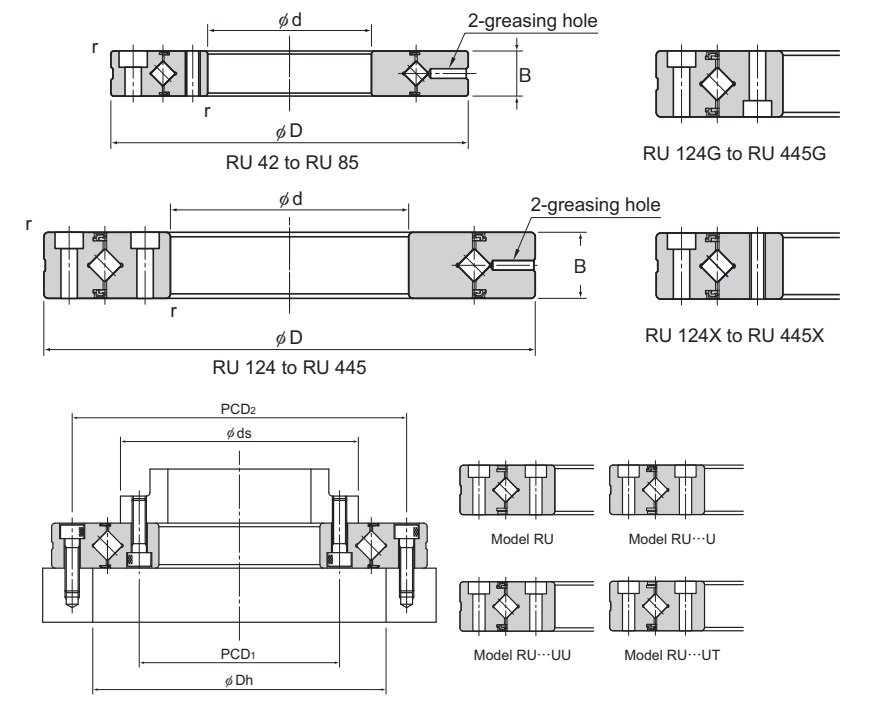

Detailed parameters and installation dimensions:

Part Number RU124X
Design Integrated Inner/Outer Ring Type, Inner ring rotation, Outer ring rotation
Series RU
Bearing Type Mounting holed type Cross-Roller Ring Model RU with separators
Radial clearance CC0: Negative (preload); C0: Positive
Starting torque - CC0 1 (min), 6 (max) N·m
Radial Clearances - C0 0 (min), 40 (max) µm
Shaft diameter 80 mm | 3.150 inch
Roller pitch circle diameter - dp 124 mm | 4.882 inch
Dimension Inside - d φ 80 mm | 3.150 inch
Dimension Outside - D Φ 165 mm | 6.496 inch
Dimension Width - B 22 mm | 0.866 inch
Seal symbol No Symbol: Without seal; UU: Seal attached on both ends; U: Seal attached on either end (counterbore side of the outer ring); UT: Seal attached on either end (opposite to the counterbore side of the outer ring)
Seal Material NBR (Nitrile Butadiene Rubber)
Accuracy P5, P4, P2
Greasing hole - d1 3.1 mm | 0.122 inch
Dimension Chamfer - r min 1 mm | 0.039 inch
Shoulder height - ds max 114 mm | 4.488 inch
Shoulder height - Dh min 134 mm | 5.276 inch
Manufacturer Part Code RU 124X
Temperature - T(min) -30 °C
Temperature - T(max) 120 °C
Rolling Element Type Cylindrical Rollers
Rows NO. One
Radial Dynamic Capacity - Cr 33100 N | 7440 lbf
Radial Static Capacity - C0r 50900 N | 11442 lbf
Inner/Outer Ring Material 50Mn,42CrMo
Rolling Element Material GCr15
Units Metric
Load radial, thrust and moment
Interchangeable THK RU124X
Bearing Mass - m 2.6 kg | 5.732 lb
Inner rings - PCD1 97 mm | 3.819 inch
Inner rings mounting holes (mm) 10-M5 through
Outer rings - PCD2 148 mm | 5.827 inch
Outer rings mounting holes (mm) 10-φ5.5 drilled through, φ9.5 counter bore depth 5.4
Similar Model RU 124X UU
RU 124X U
RU 124X UT
RU 124X CC0
RU 124X C0
RU 124X UU CC0
RU 124X U CC0
RU 124X UT CC0
RU 124X UU C0
RU 124X U C0
RU 124X UT C0
RU 124X CC0 P5
RU 124X C0 P5
RU 124X UU CC0 P5
RU 124X U CC0 P5
RU 124X UT CC0 P5
RU 124X UU C0 P5
RU 124X U C0 P5
RU 124X UT C0 P5
RU 124X CC0 P4
RU 124X C0 P4
RU 124X UU CC0 P4
RU 124X U CC0 P4
RU 124X UT CC0 P4
RU 124X UU C0 P4
RU 124X U C0 P4
RU 124X UT C0 P4
RU 124X CC0 P2
RU 124X C0 P2
RU 124X UU CC0 P2
RU 124X U CC0 P2
RU 124X UT CC0 P2
RU 124X UU C0 P2
RU 124X U C0 P2
RU 124X UT C0 P2

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

RU124X refers to a type of RU Mounting holed type Cross-Roller Ring Model RU with separators, with dimensions 80 mm (Bore) x 165 mm (OD) x 22 mm (Width), designed for Its rollers are arranged in a 90° perpendicular cross pattern in the V-shaped raceway, primarily used in industrial robot joints, CT scanner gantry, featuring One (row) construction, advanced P5, P4, P2 (precision) for applications Within a compact space, it simultaneously withstands high-precision radial loads, axial loads, and tilting moments.. it's built to handle significant loads (dynamic radial: 33100 N, static radial: 50900 N, ), It weight approximately 2.6 kilogram.

  • Min. Order: 1 Piece/(RU124X, 80 = ID, 165 = OD, 22 = B, 2.6 kg) or according to different suppliers
  • Price: Different brands, different quality, different RU124X prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

подшипник FAG 29444

Добрый день! Интересует цена и срок поставки на подшипник FAG 29444 или эквивалент 1 шт. С уважением, менеджер Кузнецова Наталья.

✨What are the Benefits of choosing RU124X bearings?

  • Space-saving and compact design:Compact structure, thin cross-section significantly reduces the size of the equipment, enabling the design of compact multi-axis joints and turntables.
  • High rigidity and composite load-bearing capacity: The rollers are arranged in a cross pattern, allowing a single bearing to simultaneously withstand radial force, axial force, and tilting moment, making it less prone to deformation under load.
  • High rotational accuracy: The rollers make contact with the raceway line, and the preload is adjustable, ensuring smooth and stable movement, guaranteeing machining accuracy and fluid operation.
  • Easy installation: The raceways have built-in mounting holes for direct bolt fixing, simplifying the assembly process and avoiding installation errors.
  • The RU124X Crossed Roller Bearings adopts a Its rollers are arranged in a 90° perpendicular cross pattern in the V-shaped raceway design, Reference THK technology, with dimensions an inner diameter of 80 mm, an outer diameter of 165 mm, a width of 22 mm, featuring One (row) construction from RU (series), optimal operating temperature is generally -30 to 120 degrees Celsius. With grade precision of P5, P4, P2 and a clearance of CC0: Negative (preload); C0: Positive, ensure the equipment operates more stably for applications Within a compact space, it simultaneously withstands high-precision radial loads, axial loads, and tilting moments.

🏭 What are the applications of the RU124X bearing?

  • Robotics Automation: Achieves high-precision rotation and high-rigidity support, ensuring smooth, backlash-free joint movement.
  • Machine Tool Industry: Improves machining accuracy and efficiency, enabling more precise rotary table indexing and tool holder switching.
  • Medical Equipment: Ensures stable operation of equipment such as CT scanners, improving the clarity of medical imaging.
  • Semiconductor Manufacturing: Provides extremely high positioning accuracy, meeting the dust-free and micron-level requirements of wafer handling.
  • Aerospace and Military: Ensures stable tracking of radar/optoelectronic turrets, adapting to high-load-bearing demands in harsh environments.
  • Precision Measurement and Optics: Achieves sensitive adjustment, ensuring repeatability and positioning accuracy of optical instruments and measuring equipment.
  • New Energy and General Machinery: Enhances anti-tipping capabilities, improving the operational stability of wind turbines and heavy-duty machinery.

📐 How should choose the right model for a Crossed Roller Bearings?

Selection of Crossed Roller Bearings

The core of selection is ensuring that the bearing's precision, rigidity, and load-bearing capacity meet the specific operating requirements of the equipment.

1. Structural Form: Selection is based on the installation requirements of the rotating parts: For outer ring rotation, use a split inner ring type; for inner ring rotation, use a split outer ring type; for both inner and outer rings rotating with high precision, use an integral structure (such as RU, CRBH type).

2. Size Range: The primary basis is the installation space of the equipment, determining the required inner diameter, outer diameter, and width.

3. Precision and Clearance: These are the core determinants of performance. Negative clearance improves rigidity and lifespan but increases friction; positive clearance is beneficial for high-speed operation but may reduce rigidity. A comprehensive selection must be made considering both speed and rigidity requirements.

4. Installation Method: Mainly divided into two categories: 1) Bearings with mounting holes on both inner and outer rings can be directly fixed with bolts; 2) Bearings without mounting holes require fixing via clamping flanges and bearing housings.

5. Load Capacity: Based on the radial force, axial force, and tilting moment that the equipment will bear, refer to the rated load table in the bearing catalog to select a model with sufficient load capacity and a certain margin.

6. Operating Environment: Consider the operating temperature, humidity, and cleanliness to select appropriate internal clearance, grease, and sealing type.

🛠️ What is the mounting procedure for RU124X bearings?

Key Points for Installing Crossed Roller Bearings

Due to their thin-walled structure, improper installation can easily cause deformation. The following procedure must be strictly followed.

Preparation Before Installation

Environmental Inspection: Conduct the inspection in a dry, clean environment.

Component Cleaning: Clean the bearing housing and mounting surfaces to remove dirt and burrs.

Structural Rigidity Confirmation: The rigidity of the mounting section is crucial; insufficient rigidity will significantly reduce bearing performance.

Installation Process

Gently Press In: Apply even pressure to the end face of the raceway and gently tap it circumferentially with a plastic hammer. Slowly and horizontally install the bearing; direct tapping is strictly prohibited.

Flange Installation: After placing the flange, slightly wiggle it to adjust the bolt position. Tighten the bolts by hand to confirm accurate thread alignment.

Bolt Tightening: Tighten in 3 to 4 stages, repeatedly tightening diagonally to the specified torque. During tightening, the integral raceway can be slightly rotated to correct the joint of the split races.

Post-installation inspection

Rotation test: After manually confirming smooth rotation, conduct a no-load, low-speed test run, gradually increasing the speed and load while monitoring noise, vibration, and temperature rise. Stop immediately if any abnormality is detected.

📋 Special Note for mounting RU124X bearings?

Special Notes

Seam Treatment of Split Rings: Before installation, if any misalignment is found in the seam of the inner or outer ring, loosen the fixing bolts, gently tap it with a plastic hammer to correct the misalignment, and then install. Do not force assembly.

Precautions for Fixing Bolts: During installation or disassembly, never apply additional external force (such as hammering) to the connecting bolts to avoid damaging the threads or bolts.

Grease Management: The bearings come with grease at the factory and can be used directly. Afterward, high-quality grease should be added every 3 to 6 months. Initially, resistance will be higher after adding grease; after operation, excess grease will overflow, and the torque will return to normal.

Operating Temperature Limits: The standard operating temperature range for crossed roller bearings is -20 to 120°C. However, for types with spacers or seals, the maximum allowable temperature and continuous operating temperature will be lower, requiring special attention.

Positioning Holes and Plugs: For bearings with mounting holes, the roller insertion holes usually have plugs. During installation, ensure that the plugs are positioned away from the area of ​​maximum load to prevent stress concentration.

If you can provide more specific application scenarios (such as robot joints, machine tool turntables) or load parameters, I can do a more in-depth selection analysis for you.

Comments

  1. tradebearings
    Email: [email protected] Tel: 86-0578-18167086030 2020-07-02

    requesting price RU124X Cross Roller Bearing- Inner/Outer Rotation, 80mm ID x 165mm OD x 22mm Width Qty - 2 Thank You

    Hello, we would like these asap, so what is availabilty of a quantity of 16 ? this would be coming to Tiffin Ohio United States. want exact cost with shipping included

    I need one 1 of these RU124X Cross Roller Bearing sent to: AR 72011 USA I will pay via Paypal, Thanks

Leave A Comment

Other models the same size : 80x165x22

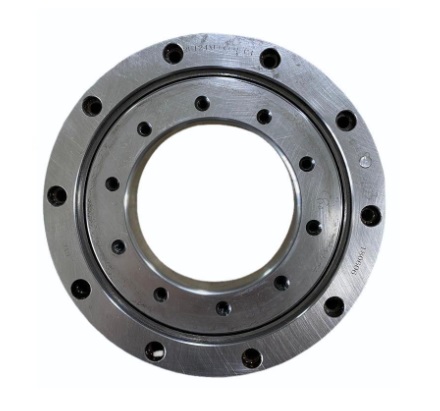

CRBF 8022 AT UD C2

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.63

CRBF 8022 A UD C2

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.60

CRBF 8022 AD UD C2

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.60

CRBF 8022 AT UD T1

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.63

CRBF 8022 A UD T1

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.60

CRBF 8022 AD UD T1

Crossed Roller Bearings   80 * 165 * 22 , Cr: 51.1, C0r: 72, Grease rpm: 490, M: 2.60

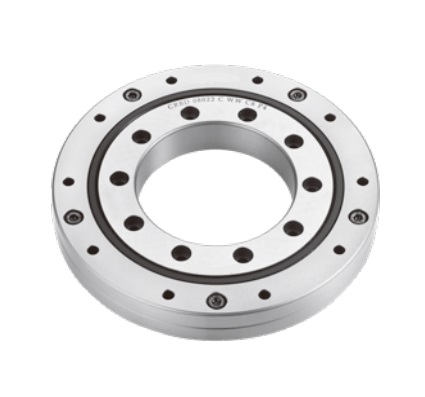

CRBD 08022 A WW C8 P5
