SD3140

Bore
180 mm
Outer
340 mm
Width
230 mm
Wight
130 kg

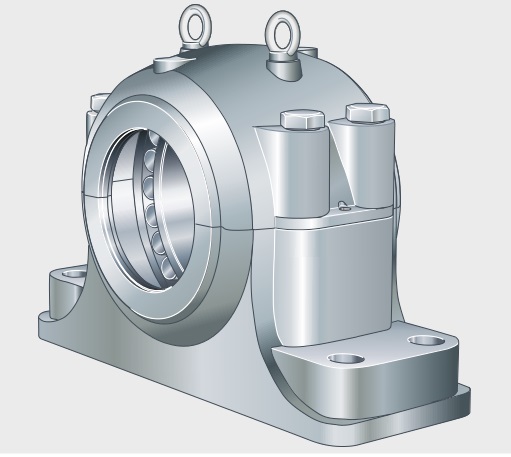

Plummer block housings
SD3140

New Designations :
SD3140
Main demensions :
180 × 340 × 230
Bore Dia × Outside Dia × Width Dia (mm)
M :
130 kg
Weight
ID :
180 mm
Inside diameter(I.D.)
OD :
340 mm
Outside diameter(O.D.)
T(B) :
230 mm
Thickness(W.D.)
Category :
Plummer block housings

Detailed parameters and installation dimensions:

d1: 180 mm, D/H8: 340 mm, b: 230 mm, a: 610 mm, c: 85 mm, g/H12: 132 mm, h/h12: 210 mm, L: 280 mm, L2: 356 mm, W: 410 mm, m: 510 mm, n: 130 mm, J: 10 mm, X: 82 mm, Z: 150 mm, S: M30 mm, 23140K, H3140, HE3140

Part Number: SD3140
Bearing Type: Plummer block housings / Y-Housing
Original Equipment Manufacture(OEM NO.): SD3140

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

SD3140 refers to a type of large Plummer block housings, with dimensions 180 mm (Bore) x 340 mm (OD) x 230 mm (Width), designed for High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments., primarily used in Conveyor rollers, long shafts of heavy equipment, for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems It weight approximately 130 kilogram.

  • Min. Order: 1 Piece/(SD3140, 180 = ID, 340 = OD, 230 = B, 130 kg) or according to different suppliers
  • Price: Different brands, different quality, different SD3140 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Заявка на подшипник 21309

Добрый день, прошу Вас рассмотреть возможность поставки подшипников 21309,

What are the Benefits of choosing SD3140 bearings?

  • Quick Installation: Split structure eliminates the need to disassemble the shaft or coupling, allowing direct bearing replacement and halving downtime.
  • Self-aligning: Works with self-aligning bearings to compensate for ±1.5° installation errors or shaft deflection, reducing alignment requirements.
  • Wide Range of Applications: Multiple seal options are available to adapt to harsh environments such as dust, humidity, and high temperatures.
  • Easy Maintenance: Top lubrication hole + base relubrication channel allow for online maintenance without disassembly.
  • The SD3140 Plummer block housings adopts a High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments. design, with dimensions 180 x 340 x 230 mm, ensure the equipment operates more stably for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems

What are the applications of the SD3140 bearing?

  • General Machinery: Used in conveying equipment, fans, and textile machinery. Bearings can be replaced without disassembling the shaft, significantly reducing downtime.
  • Mining/Metallurgy: Used in belt conveyors, vibrating screens, and material handling systems. Adaptable to dusty, heavy-duty environments, with automatic self-aligning to compensate for installation errors.
  • Light Industry/Food: Used in packaging machinery and food processing equipment. Available in stainless steel or with high-efficiency sealing, corrosion-resistant and easy to clean.
