SD3152-H-TS-AF-L

Bore
240 mm
Outer
440 mm
Width
280 mm
Wight
210 kg
Plummer block housings
SD3152-H-TS-AF-L
SD3152-H-TS-AF-L

New Designations :
SD3152-H-TS-AF-L
Main demensions :
240 × 440 × 280
Bore Dia × Outside Dia × Width Dia (mm)
M :
210 kg
Weight
ID :
240 mm
Inside diameter(I.D.)
OD :
440 mm
Outside diameter(O.D.)
T(B) :
280 mm
Thickness(W.D.)
Category :
Plummer block housings

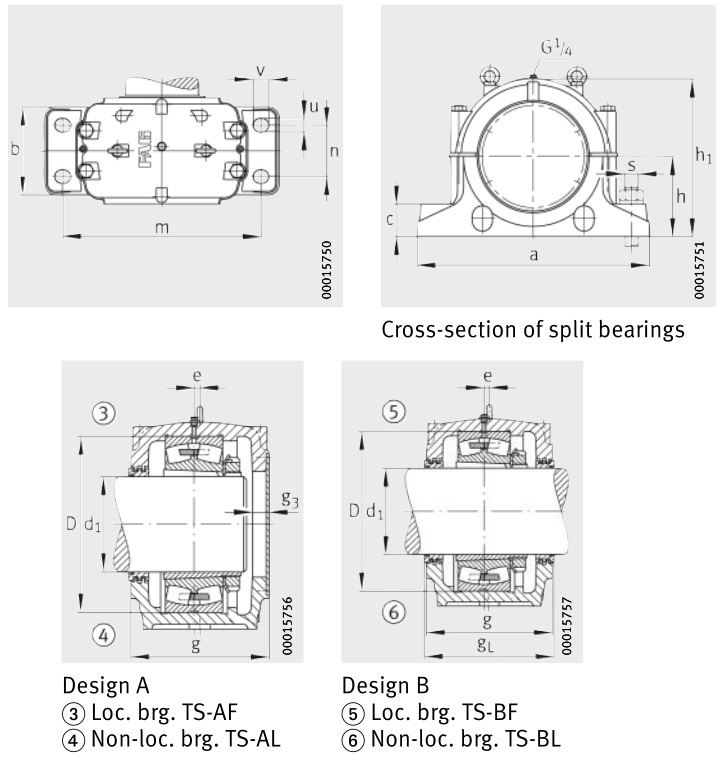

Detailed parameters and installation dimensions:

Reference From FAG SD3152-H-TS-AF-L , Plummer block housings SD31, split , Size: 240 mm d1 x 440 mm D x 280 mm b;
Bearing Type: Plummer block housings SD31, split For spherical roller bearings with tapered bore and adapter sleeve ;
Bearing: 23152-K-MB ;
Adapter sleeve: H3152X ;
Split bearing: 231SM240-MA ;
Locating ring: – ;
Locating ring(Quantity): – ;
Labyrinth ring with round cord: TS52 ;
Labyrinth ring with round cord(Quantity): 1 ;
Mass(Housing) - m: 210 kg;
Dimension - d1: 240 mm;
Dimension - a: 770 mm;
Dimension - g: 320 mm;
Dimension - h1: 515 mm;
Dimension - b: 280 mm;
Dimension - c: 100 mm;
Dimension - D: 440 mm;
Dimension - e: 13 mm;
Dimension - gL: – mm;
Dimension - g3: 35 mm;
Dimension - h: 260 mm;
Dimension - m: 650 mm;
Dimension - n: 160 mm;
Dimension - u: 42 mm;
Dimension - v: 52 mm;
Dimension - s: M36 mm | 1 3/8 inch;

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

SD3152-H-TS-AF-L refers to a type of large Plummer block housings, with dimensions 240 mm (Bore) x 440 mm (OD) x 280 mm (Width), designed for High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments., primarily used in Conveyor rollers, long shafts of heavy equipment, for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems It weight approximately 210 kilogram.

  • Min. Order: 1 Piece/(SD3152-H-TS-AF-L, 240 = ID, 440 = OD, 280 = B, 210 kg) or according to different suppliers
  • Price: Different brands, different quality, different SD3152-H-TS-AF-L prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

I need bearing 6204 prices

I need bearing 6204 prices. greetings.

What are the Benefits of choosing SD3152-H-TS-AF-L bearings?

  • Quick Installation: Split structure eliminates the need to disassemble the shaft or coupling, allowing direct bearing replacement and halving downtime.
  • Self-aligning: Works with self-aligning bearings to compensate for ±1.5° installation errors or shaft deflection, reducing alignment requirements.
  • Wide Range of Applications: Multiple seal options are available to adapt to harsh environments such as dust, humidity, and high temperatures.
  • Easy Maintenance: Top lubrication hole + base relubrication channel allow for online maintenance without disassembly.
  • The SD3152-H-TS-AF-L Plummer block housings adopts a High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments. design, with dimensions 240 x 440 x 280 mm, ensure the equipment operates more stably for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems

What are the applications of the SD3152-H-TS-AF-L bearing?

  • General Machinery: Used in conveying equipment, fans, and textile machinery. Bearings can be replaced without disassembling the shaft, significantly reducing downtime.
  • Mining/Metallurgy: Used in belt conveyors, vibrating screens, and material handling systems. Adaptable to dusty, heavy-duty environments, with automatic self-aligning to compensate for installation errors.
  • Light Industry/Food: Used in packaging machinery and food processing equipment. Available in stainless steel or with high-efficiency sealing, corrosion-resistant and easy to clean.

Leave A Comment

Other models the same size : 240x440x280

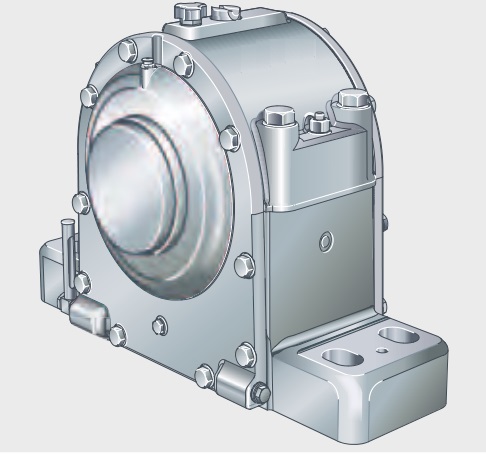

LOE248-N-BL-L
